8.2 Monitor Mode
Monitor Mode offers the option of checking incoming control sequences at an interface. The commands are printed out
as text. In addition, a corresponding error message is printed out immediately after an error occurs.
TheprintoutoccursusingtheheatlevelandprintspeedspeciedintheSetup > Printing menu.
i
Notice!
The printout occurs without taking the label gaps into consideration. This is why endless media are most
suitable for this purpose.
 Insert printable medium (labels, endless paper) which extends across the entire printing width.
 If the printout is to occur using thermal transfer printing, insert transfer ribbon with the maximum width.
 Start menu.
 Select Diagnostics > Monitor Mode.
 Send print jobs.
 Select to cancel the printout or switch to the Ready mode.
Example:
Monitor Mode
Wed Aug 14 10:28:12 2019
cab SQUIX 4/300MP
Firmware V5.27 (Jul 25, 2019) - #164162036456

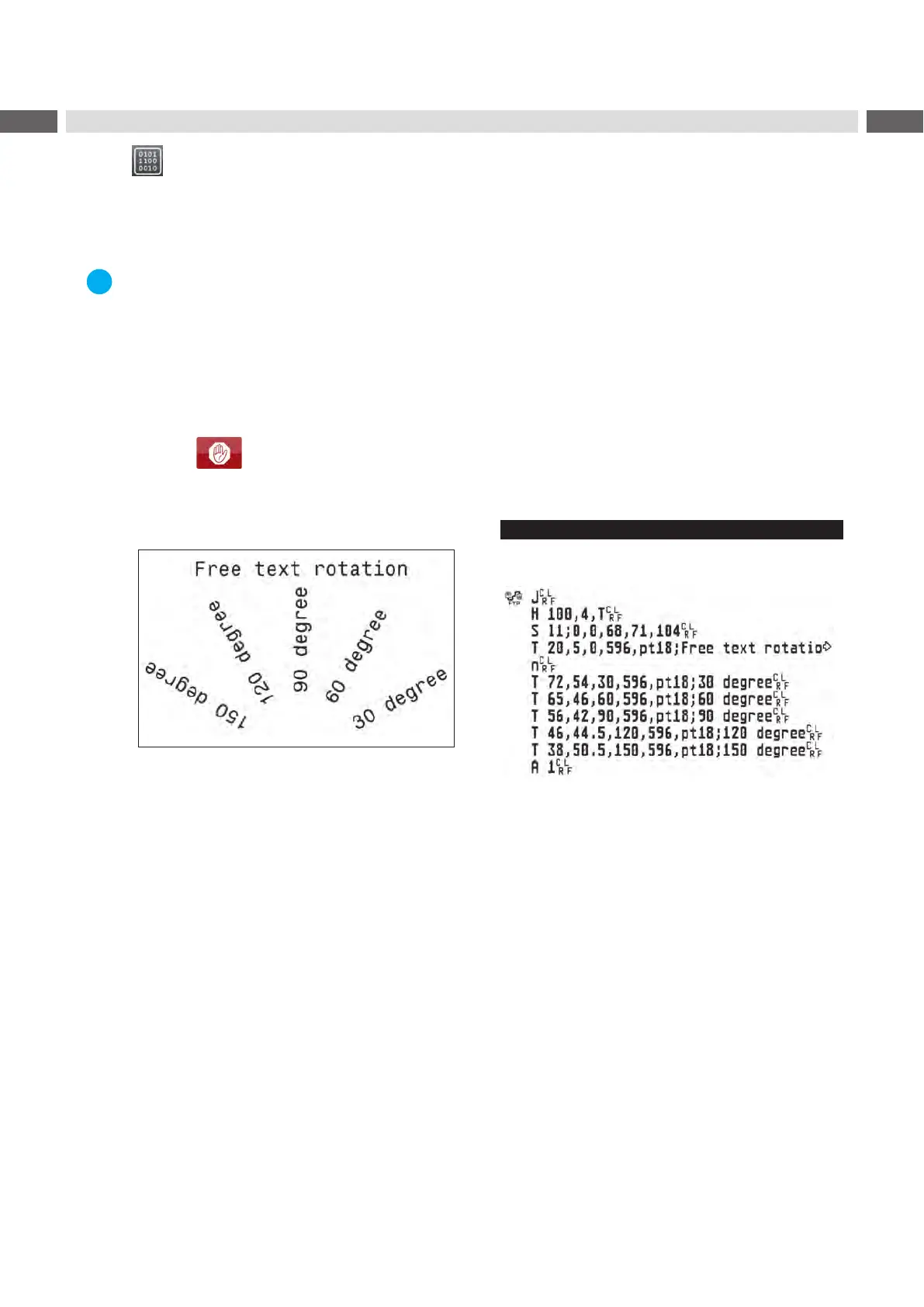

Figure 21 Example label printed normally (left) and in Monitor mode (right)
The control characters (ASCII-Code 00...31) are presented in stylized design.
e.g. :
L
F
: Code 10 (0A) - line feed
C
R
: Code 13 (0D) - carriage return
