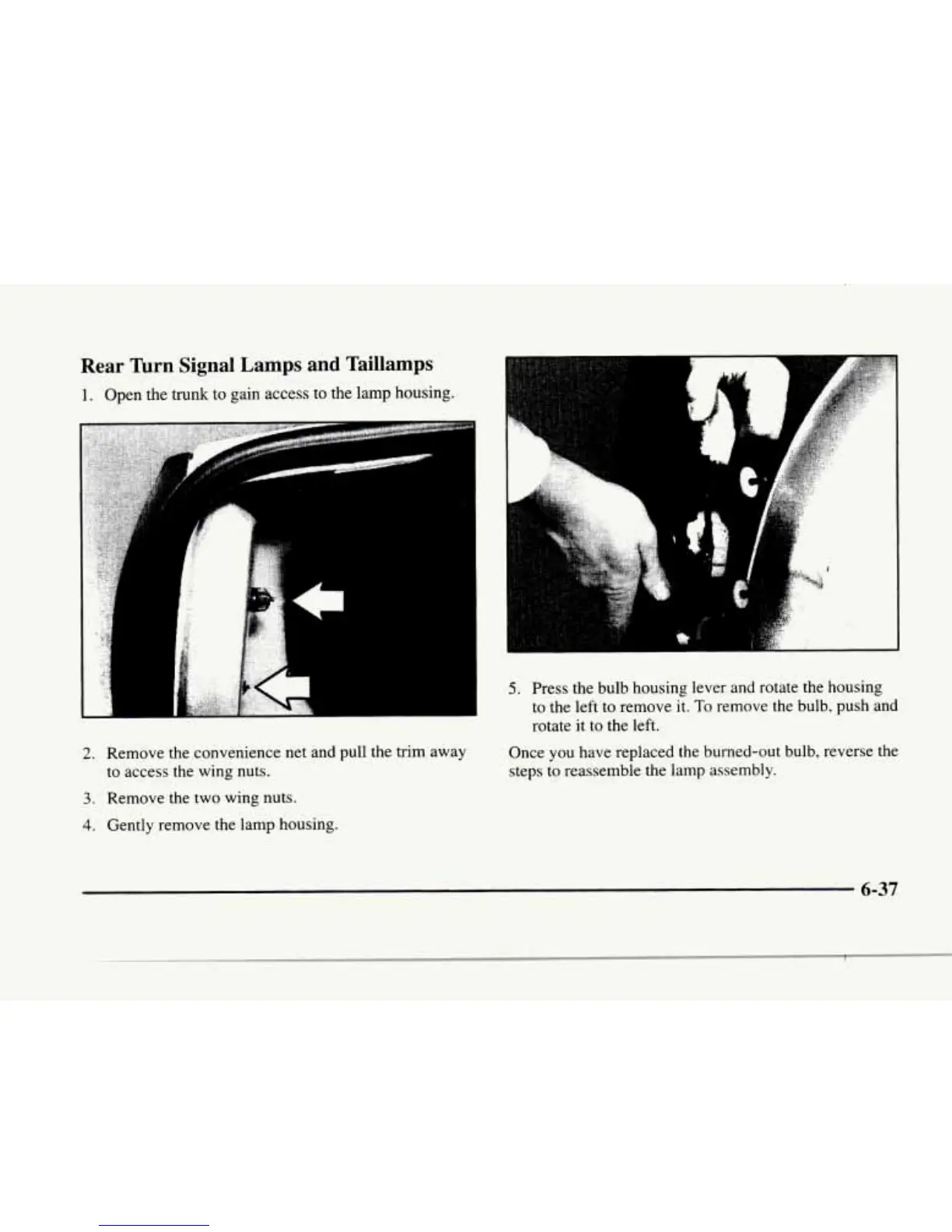

Rear
Turn
Signal Lamps and Taillamps
1.
Open the trunk to gain access to the lamp housing.
2.
Remove the convenience net and pull the trim away
to access the wing
nuts.
3.
Remove the two wing nuts.
4.
Gently remove the lamp housing.
A
5.
Press the bulb housing lever and rotate the housing
to the left to remove
it.
To
remove the bulb, push and
rotate
it
to the left.
Once you have replaced the burned-out bulb, reverse the
steps to reassemble the lamp assembly.
6-37
