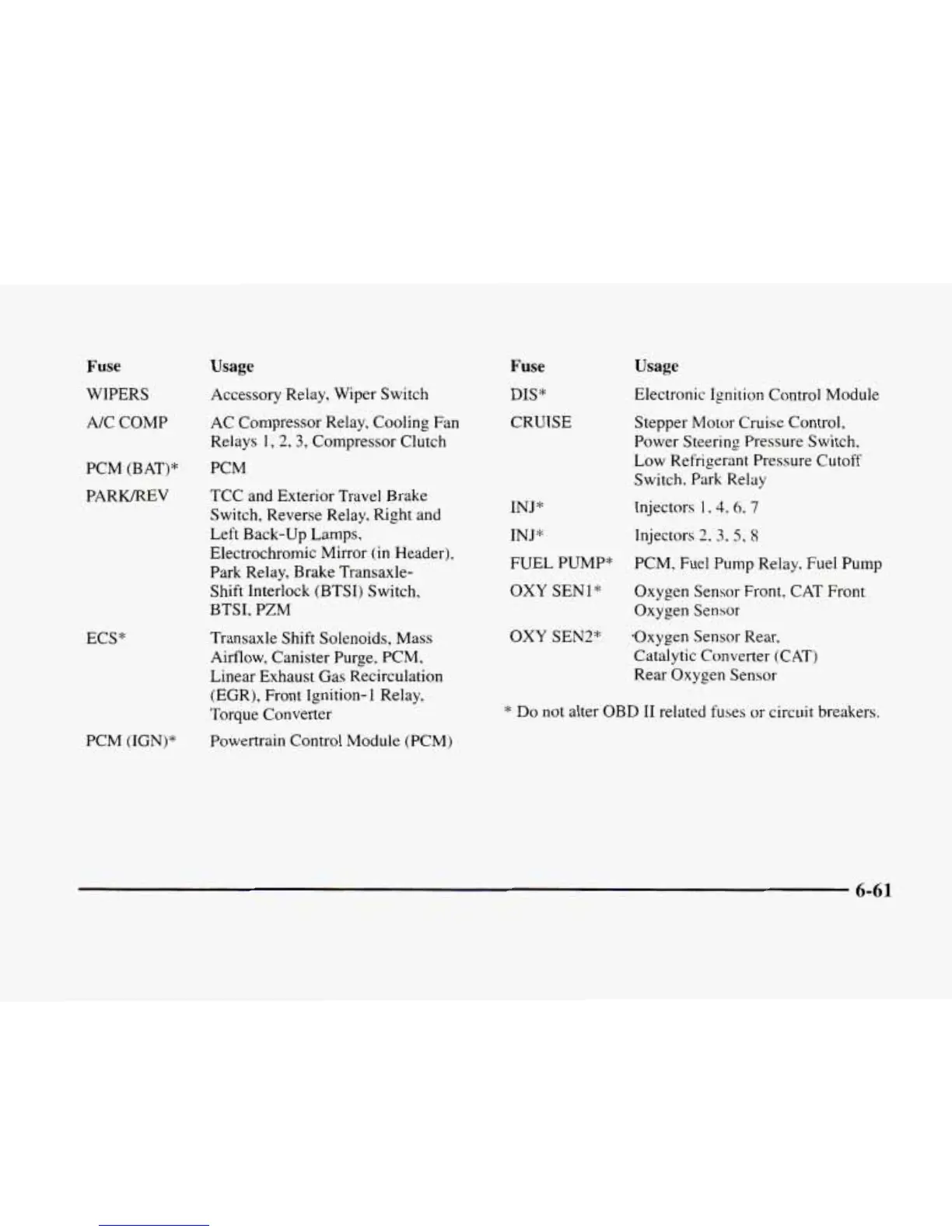

Fuse
WIPERS
A/C COMP
PCM
(BAT)*
PARWREV
ECS*
PCM
(IGN)*
Usage
Accessory Relay, Wiper Switch
AC Compressor Relay, Cooling Fan
Relays
I,
2.3,
Compressor Clutch
PCM
TCC and Exterior Travel Brake
Switch, Reverse Relay, Right and
Left Back-up Lamps,
Electrochromic Mirror
(in
Header).
Park Relay, Brake Transaxle-
Shift Interlock (BTSI) Switch,
BTSI,
PZM
Transaxle Shift Solenoids,
Mass
Aifflow, Canister Purge, PCM,
Linear Exhaust Gas Recirculation
(EGR), Front Ignition-
1
Relay,
Torque Converter
Powertrain Control
Module
(PCM)
Fuse
DIS
*
CRUISE
INJ*
INJ*
Usage
Electronic Ignition Control Module
Stepper Motor Cruise Control,
Power Steering Pressure Switch,
Low Refrigerant Pressure Cutoff
Switch, Park
Relay
Injectors
1,4.
6,
7
Injectors
2.
3.
5,
8
FUEL PUMP* PCM,
Fuel
Pump Relay,
Fuel
Pump
OXY
SEN1
*
Oxygen Sensor Front,
CAT
Front
Oxygen Sensor
OXY
SEN2*
*Oxygen Sensor Rear.
Catalytic Converter (CAT)
Rear Oxygen Sensor
*
Do
not alter
OBD
I1
related fuses
or
circuit breakers.
6-61
