3
I.
3.
4.
5.
6.
7.

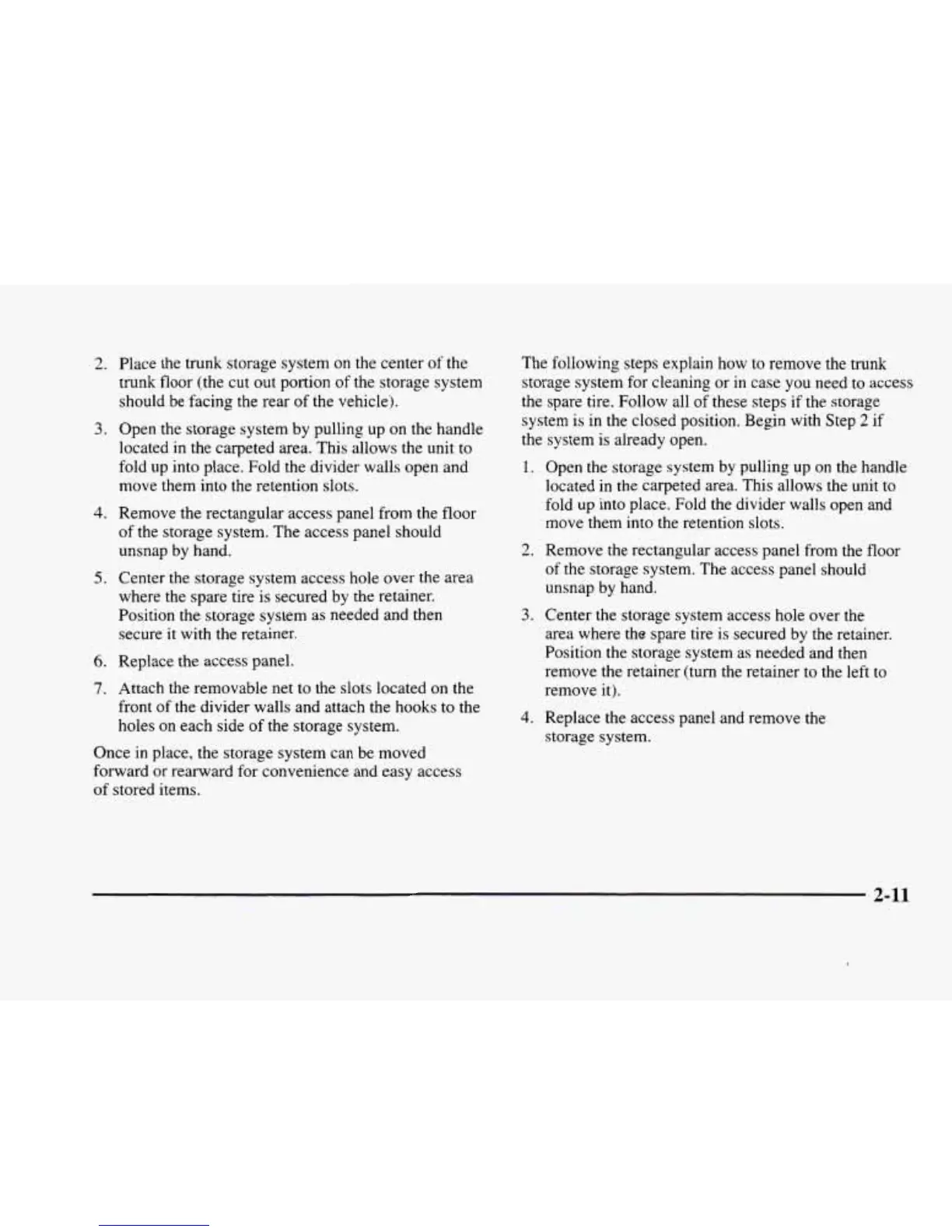

Place the trunk storage system on the center
of
the
trunk floor (the cut out portion
of
the storage system
should be facing
the
rear of the vehicle).
Open the storage system
by
pulling up
on
the
handle
located in the carpeted
area.
This allows
the
unit
to
fold up into place. Fold the divider walls open and
move them into the retention slots.
Remove the rectangular access panel from the floor
of
the storage system. The access panel should
unsnap by hand.
Center the storage system access hole over
the
area
where
the
spare tire
is
secured by the retainer.
Position the storage system as needed and then
secure it with the retainer.
Replace the access panel.
Attach the removable net to the slots located on the
front
of
the
divider walls and attach the hooks to the
holes
on
each side
of
the storage system.
Once in place, the storage system can be moved
forward or rearward for convenience and easy access
of
stored items.
The following steps explain how to remove the trunk
storage system for cleaning or
in
case you need to access
the spare tire. Follow all
of
these steps if the storage
system is in the closed position. Begin with Step
2
if
the system is already open.
1.
2.
3.
4.
Open the storage system by pulling up
on
the handle
located in the carpeted area. This allows the unit to
fold up into place. Fold the divider walls open and
move them into the retention slots.
Remove the rectangular access panel from the floor
of
the storage system. The access panel should
unsnap by hand.
Center
the
storage system access hole over the
area where the spare tire is secured by the retainer.
Position the storage system as needed and then
remove the retainer (turn the retainer
to
the left to
remove it).
Replace the access panel and remove the
storage system.
2-11
