Setup
e. Connect the T-connector to the elbow.
f. Connect the EtCO
2
sample line to the T-connector.
g. Connect the mask or the endotracheal tube to the T-connector (at the open end).

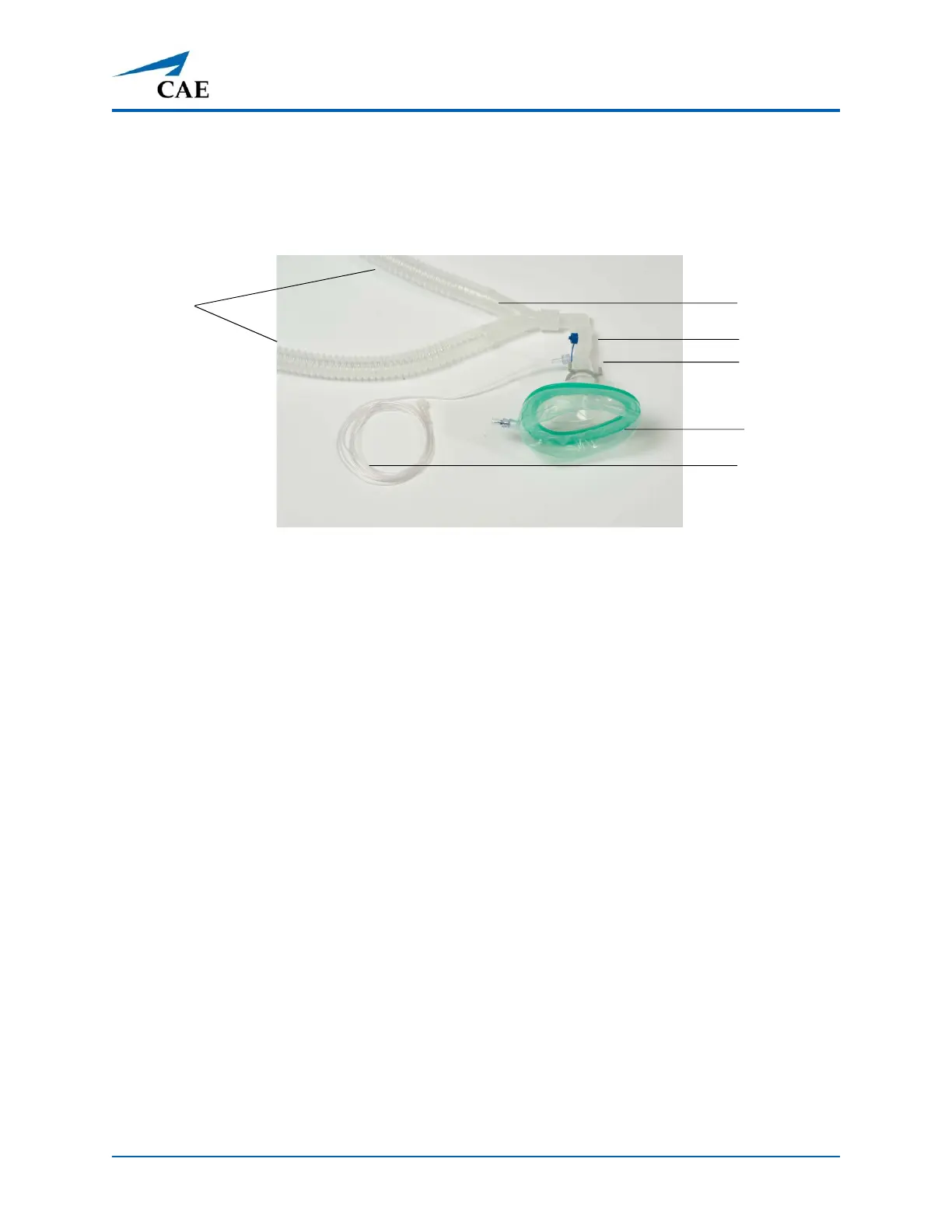

Breathing Circuit Assembled with Non-Invasive Mask
3. Connect the Ventilator Breathing Circuit to the Medical Cart:
a. Connect one of the tubes to the filter on the front of the medical cart.
b. Connect the second tube to the front panel of the Medical Cart port labeled INSP.
c. Attach the EtCO
2
sample line to the front of the Medical Cart by gently twisting the
fitting to secure.
d. Place the breathing circuit limbs inside the articulating arm support.
e. Place the EtCO
2
sample line in the articulating arm support.
Limbs
Wye
Elbow
T
EtCO
2
Sample
Line
Mask
