Front Panel

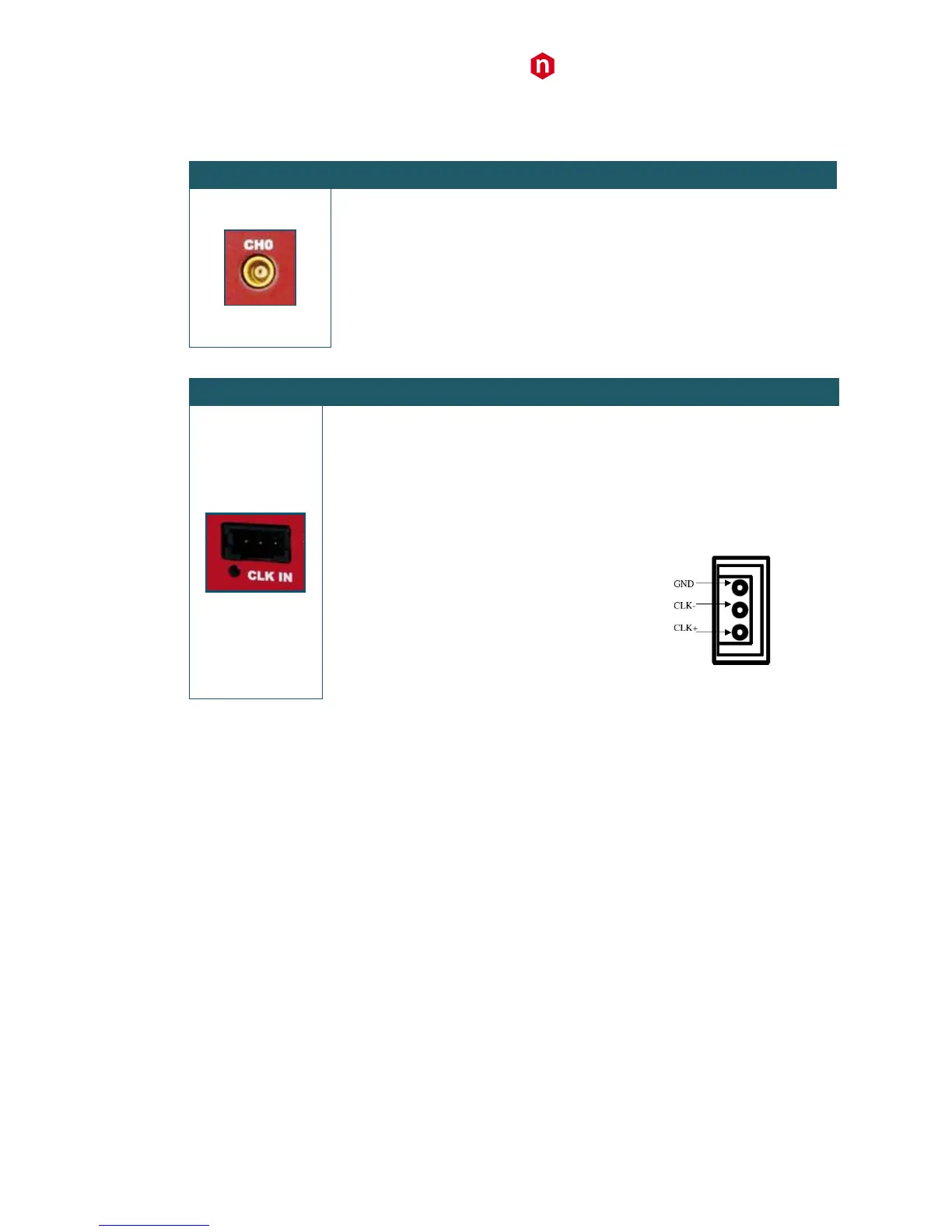

ANALOG INPUT
FUNCTION
Input connectors (CH0 to CH7) receiving the
input analog signals.
ELECTRICAL SPECS
Input dynamics: 2 or 0.5 V
pp
(SW selectable)
Input impedance (Z
in
): 50 Ω.
MECHANICAL SPECS
Series: MCX connectors.
Type: CS 85MCX-50-0-16.
Manufacturer: SUHNER
Suggested plug: MCX-50-2-16 type.
Suggested cable: RG174 type.
CLK IN
FUNCTION
Input connector for the external clock.
ELECTRICAL SPECS
Sign. type: differential (LVDS, ECL, PECL, LVPECL,
CML). CAEN provides single-ended to differential
A318 cable adapter (see Tab. 1.1) for CLK-IN.
Coupling: AC.
Z
diff
: 100 Ω.
MECHANICAL SPECS
Series: AMPMODU connectors.
Type: 3-102203-4 (3-pin).
Manufacturer: AMP Inc.
PINOUT
CLK IN LED (GREEN): indicates the external clock is enabled.
