Electronic Instrumentation
UM3148 – DT5730/DT5725 User Manual rev. 2
CAENComm Demo
CAENComm Demo is a simple program developed in C/C++ source code and provided both with Java and LabVIEW GUI
interface. The demo mainly allows for a full board configuration at low level by direct read/write access to the registers
and may be used as a debug instrument.

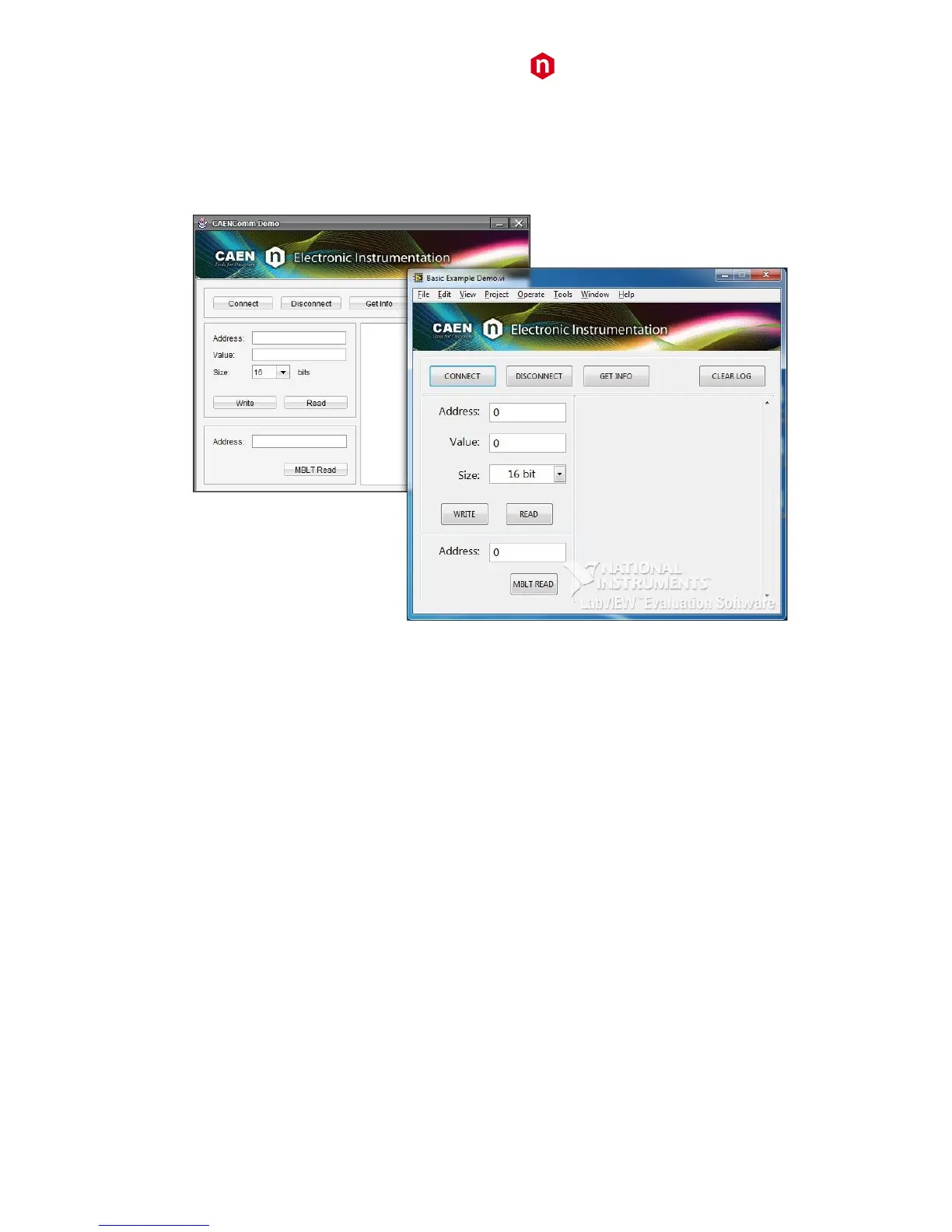

Fig. 11.2: CAENComm Demo Java and LabVIEW graphical interface
CAENComm Demo can operate with Windows OSs, 32 and 64-bit. It requires CAENComm and CAEVMElib libraries as
additional software to be installed (see § 10).
The Demo is included in the CAENComm library installation Windows package, which can be downloaded on CAEN web
site (login required) at:
Home / Products / Firmware/Software / Digitizer Software / Software Libraries / CAENComm Library
