Caen DT5730 - Rear Panel

CAEN
Electronic Instrumentation
UM3148 – DT5730/DT5725 User Manual rev. 2
18
Rear Panel

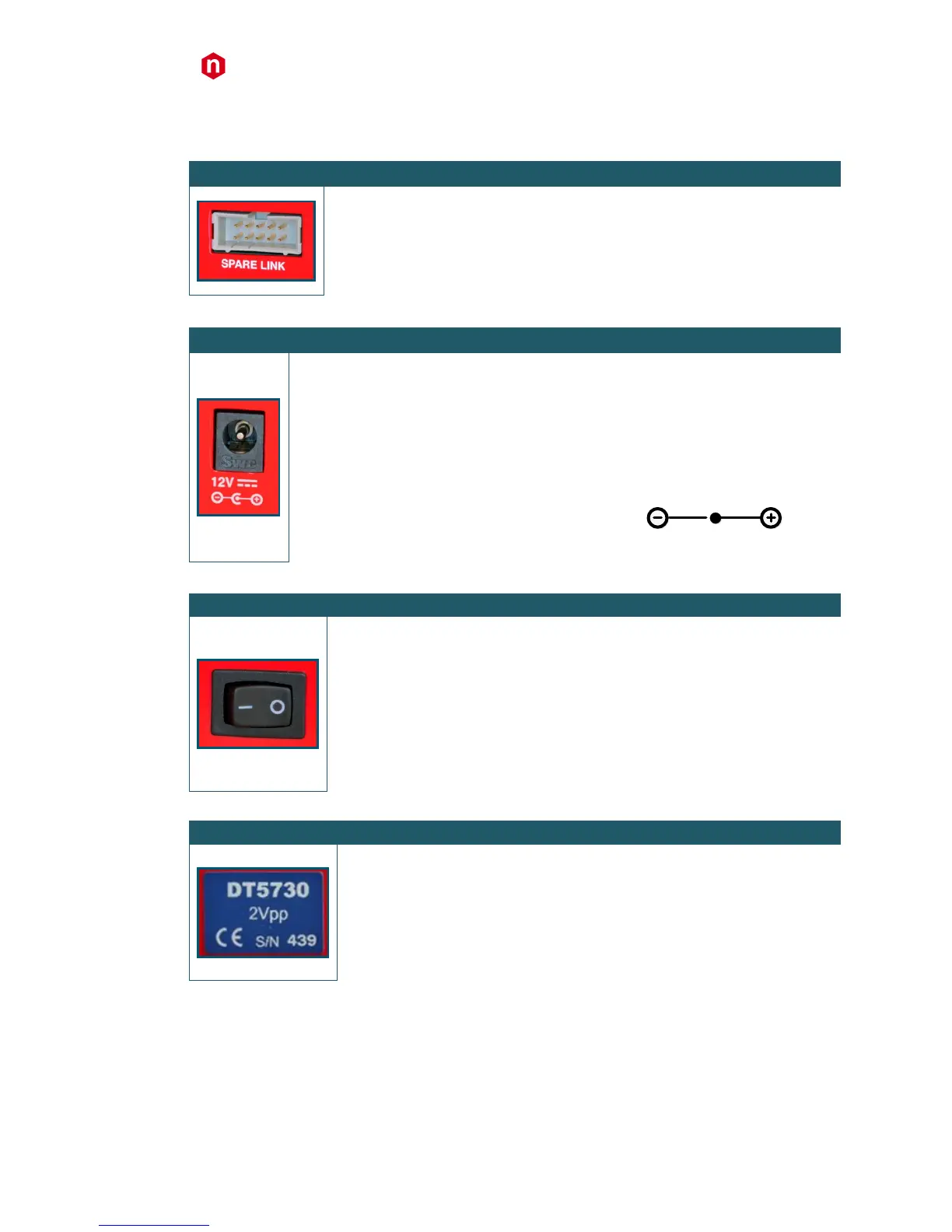

SPARE LINK
FUNCTION
Auxiliary connector reserved for CAEN usage.
ELECTRICAL SPECS
Not available.
MECHANICAL SPECS
Series: Header connectors.
Type: 7610-5002-5+5.
Manufacturer: 3M.
DC INPUT
FUNCTION
Input connector for the desktop Digitizer main
power supply from the external AC/DC adapter.
ELECTRICAL SPECS
Typ. Input voltage: +12 VDC.
MECHANICAL SPECS
Series: CC power supply connectors
Type: RAPC722X (DC power jack).
Manufacturer: Switchcraft Inc.
PINOUT
C
ON/OFF SWITCH
FUNCTION
Panel switch for module power supply
ON/OFF:
O → power supply OFF.
I → power supply ON.
ELECTRICAL SPECS
Not available.
MECHANICAL SPECS
Series: A1 switches.
Type: A11331122000 (Single pole two way)
Manufacturer: Molveno.
IDENTIFYING LABEL
FUNCTION
Board’s identifying label indicating:
 the model;
 the serial number (S/N);
 the symbol of the CE conformity marking.
