Inside the 1902
48
circuit board. These screws have built-in shakeproof washers
(‘combo’ screws). Undo the screws and lift off the lid.
7. Replace the RS232 and the power cables and apply power.
You are now ready to run the calibration software.
Run the program Try1902 (see page 5). Click the button
marked
Calibrate amplifiers. Full instructions appear on the
screen. Items to be adjusted or connected-to will flash. (With up
to twenty pots to adjust, this is a great help.) You may step back
as well as forward.
Calibrating the 1902

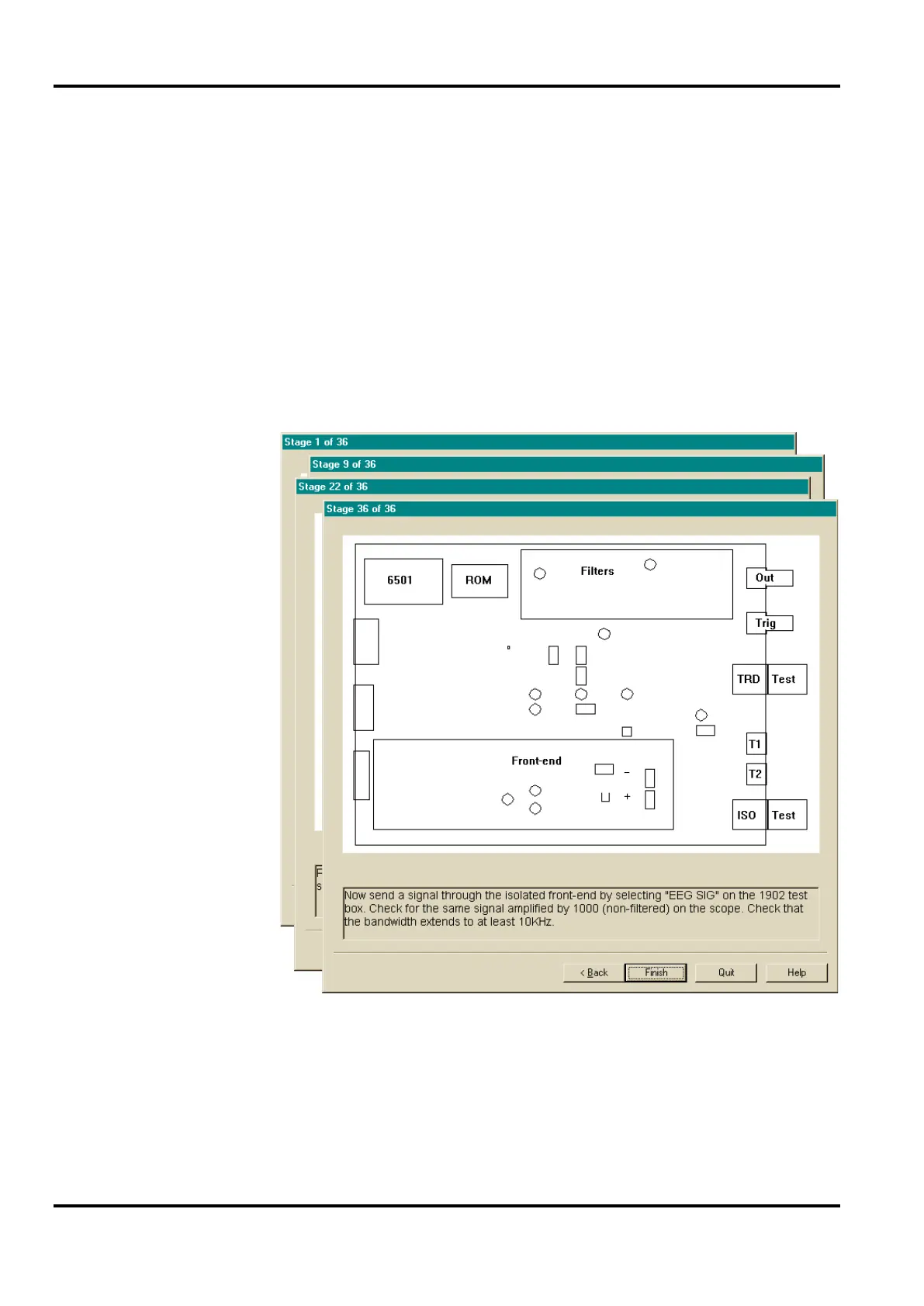

Try1902: the
calibration utility
