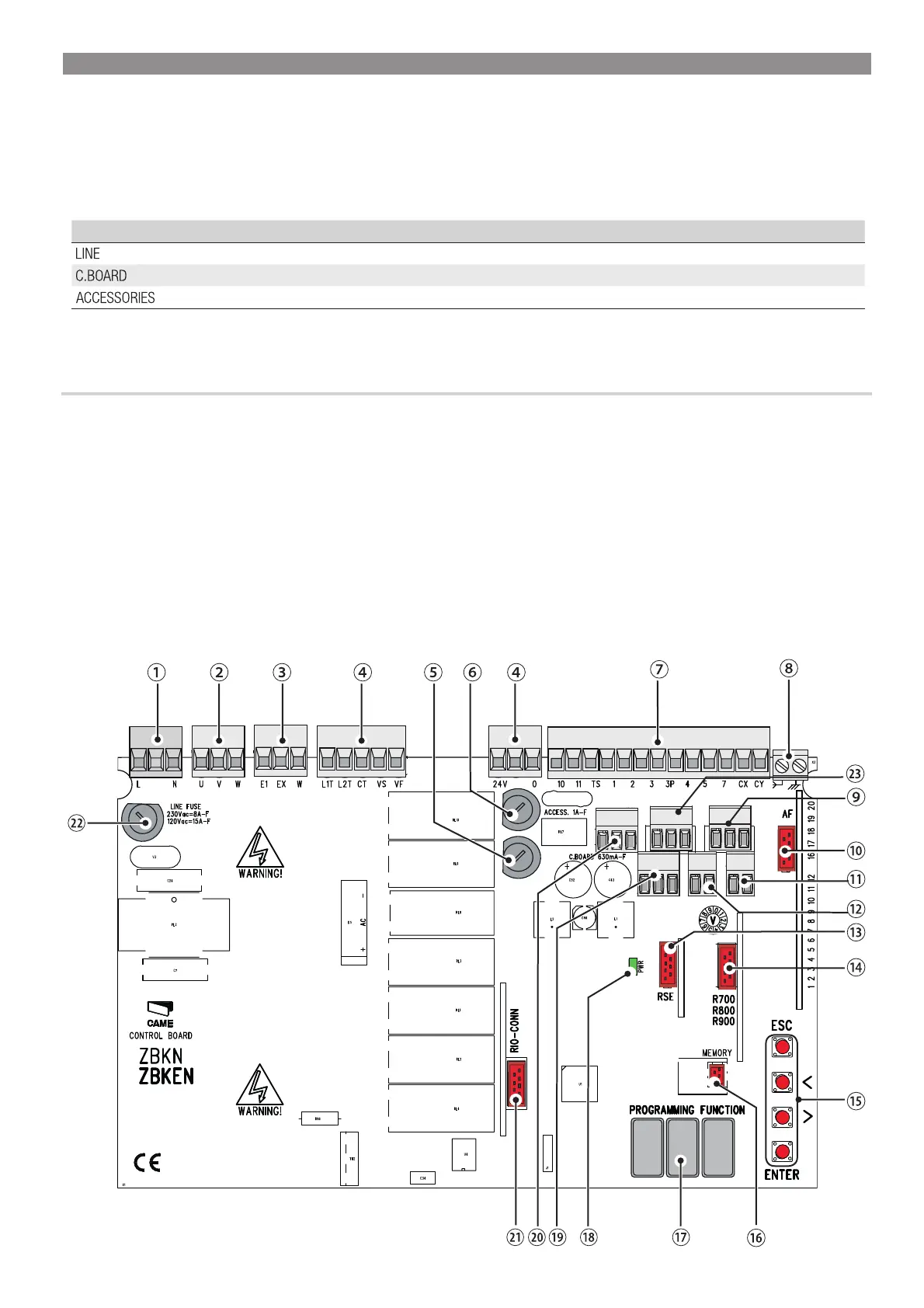

DESCRIPTION OF PARTS
1. Power supply terminals
2. Gear motor terminals
3. Terminals for signaling devices
4. Transformer terminals
5. Control-board fuse
6. Accessories fuse
7. Terminals for control and safety devices
8. Antenna terminal
9. Encoder terminals
10. AF card slot
11. Terminals for transponder selector
12. Keypad selector terminal
13. RSE card slot
14. Connector for the R700/R800/R900 card
15. Programming buttons
16. Memory roll card slot
17. Display
18. Power supply on warning LED
19. Terminals for combined or CRP connection
20. Terminals for the RGP1 module
21. Connector for the RIO-CONN card
22. Line fuse
23. Terminals for limit-switch micro-switches
CONTROL BOARD
⚠
Caution! Before doing any work on the control board, cut off the mains power supply, and disconnect any batteries.
The functions available on the input and output contacts, the time adjustments and user management are all set and viewable on the segmented graphic
display.
All wiring connections are quick-fuse protected.
Fuses ZBKN / ZBKEN
- Line 8 A-F (230 V AC)
- Card
630 mA-F
- Accessories
1 A-F

CAME BK Series Specifications

General

Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
Motor Power	300W
Limit Switch Type	Mechanical
Safety Features	Obstacle detection
