CAME BK Series Installation Manual

10 11 TS 1 2 3 3P 4 5 7 CX CY L N U V W E1 EX W L1T L2T CT VS VF 24V 0
+ E -
p. 14 - Manual FA01292-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions
GREEN
BROWN
WHITE
Condenser
120/230V AC gear motor with Encoder
FACTORY WIRING
Cable glands of the control-board brace

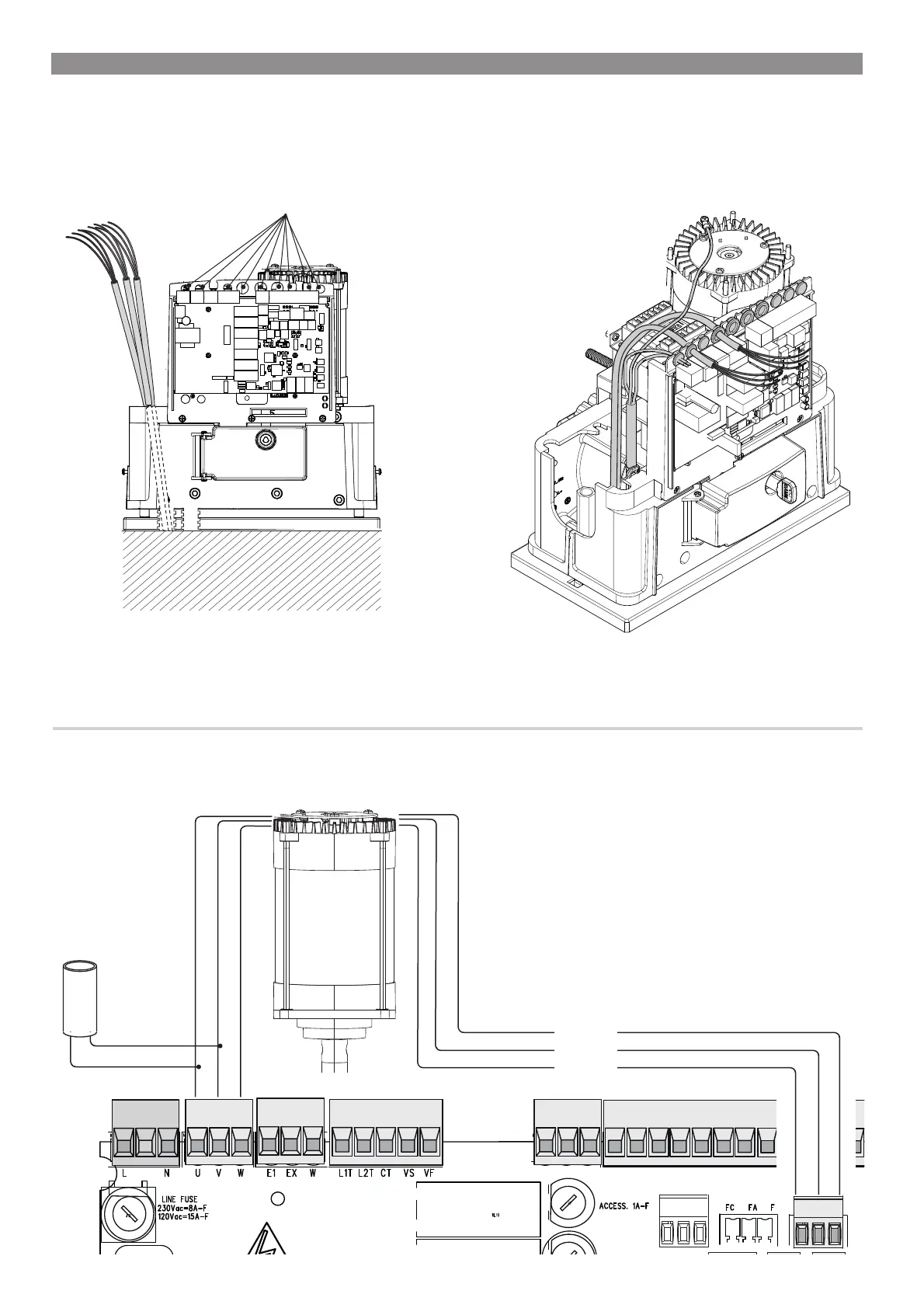

ELECTRICAL CONNECTIONS
⚠
Connect all wires and cables in compliance with the law.
Before connecting all the wires, set up the cables by using cable glands on the control board brace, as shown in the figure.
Keep the electrical cables away from any parts that may overheat during use, like the motor, transformer, and so on.

CAME BK Series Specifications

General

Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
Motor Power	300W
Limit Switch Type	Mechanical
Safety Features	Obstacle detection
