p. 12 - Manual FA01292-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions
For closing:
- close the gate; 
- fi t the closing limit-switch tab into the rack until the micro-switch is activated (spring) and fasten it using the grub screws. 

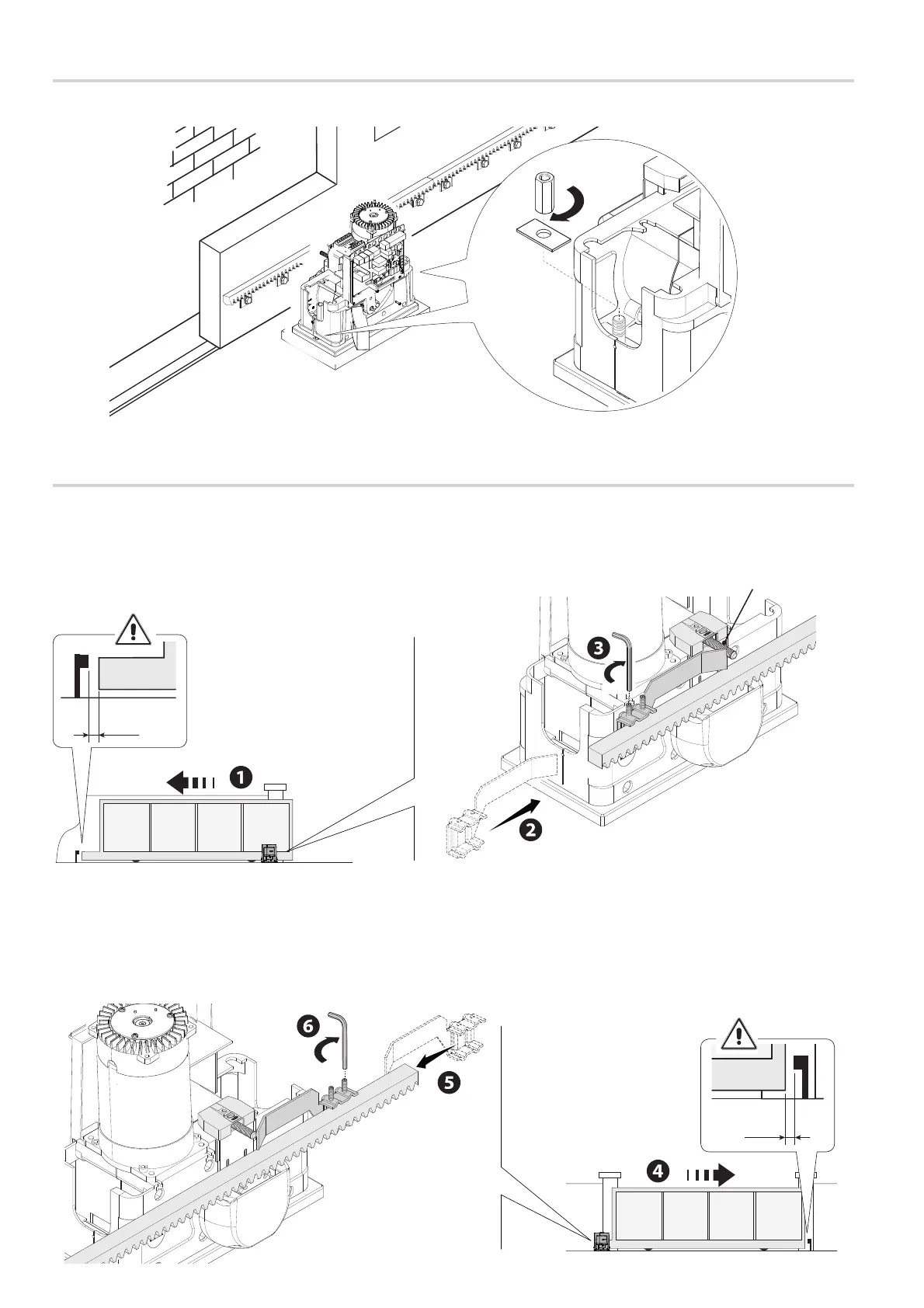

ESTABLISHING THE LIMIT-SWITCH POINTS
For opening:
- open the gate; 
- fi t the opening limit-switch tab onto the rack until the micro switch activates (spring) and fasten it using the grub screws. 
FASTENING THE OPERATOR
Once adjusting is complete, fasten the gearmotor to the plate using the plates and nuts.
Spring

CAME BK Series Specifications

General

Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
Motor Power	300W
Limit Switch Type	Mechanical
Safety Features	Obstacle detection
