p. 11 - Manual FA01292-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

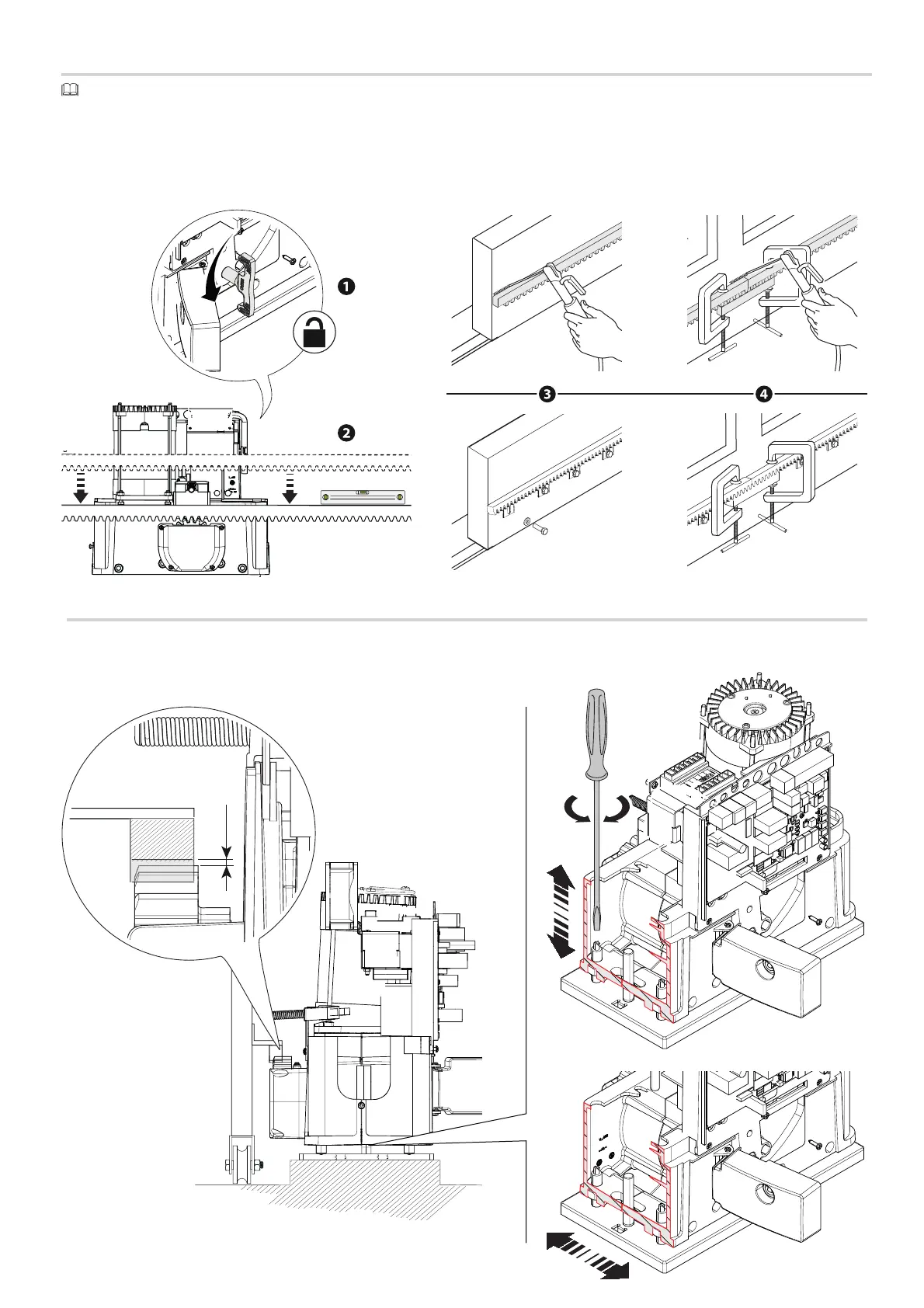

ADJUSTING THE PINION-RACK PAIRING
Manually open and close the gate and adjust the pinion-rack coupling distance using the threaded feet (vertical adjustment) and the holes
(horizontal adjustment). This prevents the gate's weight from bearing down on the operator.
FASTENING THE RACK
If the rack is already set up, the next step should be to adjust the rack-and-pinion coupling distance, otherwise, fasten it:
- release the gear motor;
- rest the rack above the gearmotor pinion;
- weld or fasten the rack to the gate along its entire length.
To assemble the rack modules, use an extra piece and rest it under the joint, then fasten it using two clamps.

CAME BK Series Specifications

General

Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
Motor Power	300W
Limit Switch Type	Mechanical
Safety Features	Obstacle detection
