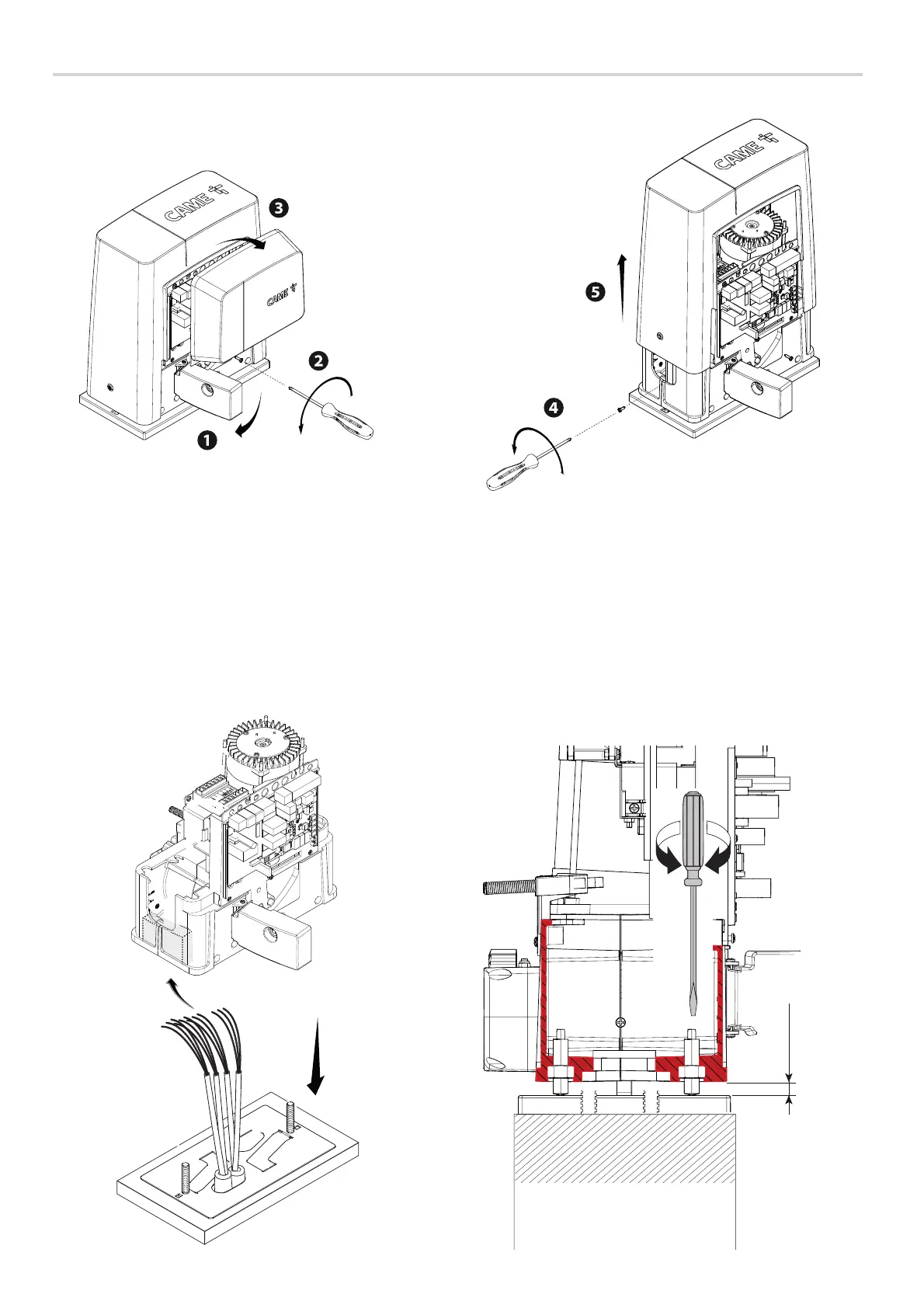

SETTING UP THE OPERATOR
Removethe front cover and the operator casing.
Place the operator on top of the anchoring plate.
Caution! The electric cables must pass under the gearmotor casing and must not touch any parts that may overheat during use, such as the motor
or the transformer, and so on).
Lift the gearmotor by 5 to 10 mm from the plate by adjusting the threaded steel feet to allow any subsequent adjustments between pinion and rack.

CAME BK Series Specifications

General

Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
Motor Power	300W
Limit Switch Type	Mechanical
Safety Features	Obstacle detection
