CAME BK Series Installation Manual

183
143
326
22 max.
359,5
105
109,5
170
262
p. 4 - Manual FA01292-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions
TECHNICAL DATA
Model BKS22AGE / BKS22ALE
Protection rating (IP) 44
Power supply (V - 50/60 Hz) 230 AC
Input voltage to motor (V - 50/60 Hz) 230 AC
Stand-by consumption (W) 4.5
Stand-by consumption with the RGP1 (W) module 0.5
Power (W) 580
Thrust (N) 1500
Opening speed (m/min) 10.5
Operating temperature (°C) -20 to +55
Apparatus class I
Motor's heat protection (°C) 150
Acoustic pressure dB (A) ≤70
Weight (Kg) 21
DESCRIPTION
BKS22AGE - Automated operator featuring a control board with graphic-display for programming functions, plus a device for movement and
obstruction detecting - for sliding gates up to 2,200 kg in weight and 20 m in length.
INTENDED USE
The operator is designed to power sliding gates used in apartment blocks and industrial plants.
Do not install of use this device in any way, except as specified in this manual.
INTENDED USE
Model BKS22AGE / BKS22ALE
Standard reference* length of the sliding part (m) 10
Maximum weight of the sliding part (kg) 2.200
Pinion module 4
* For other-than-standard measurements, see the following graphs.

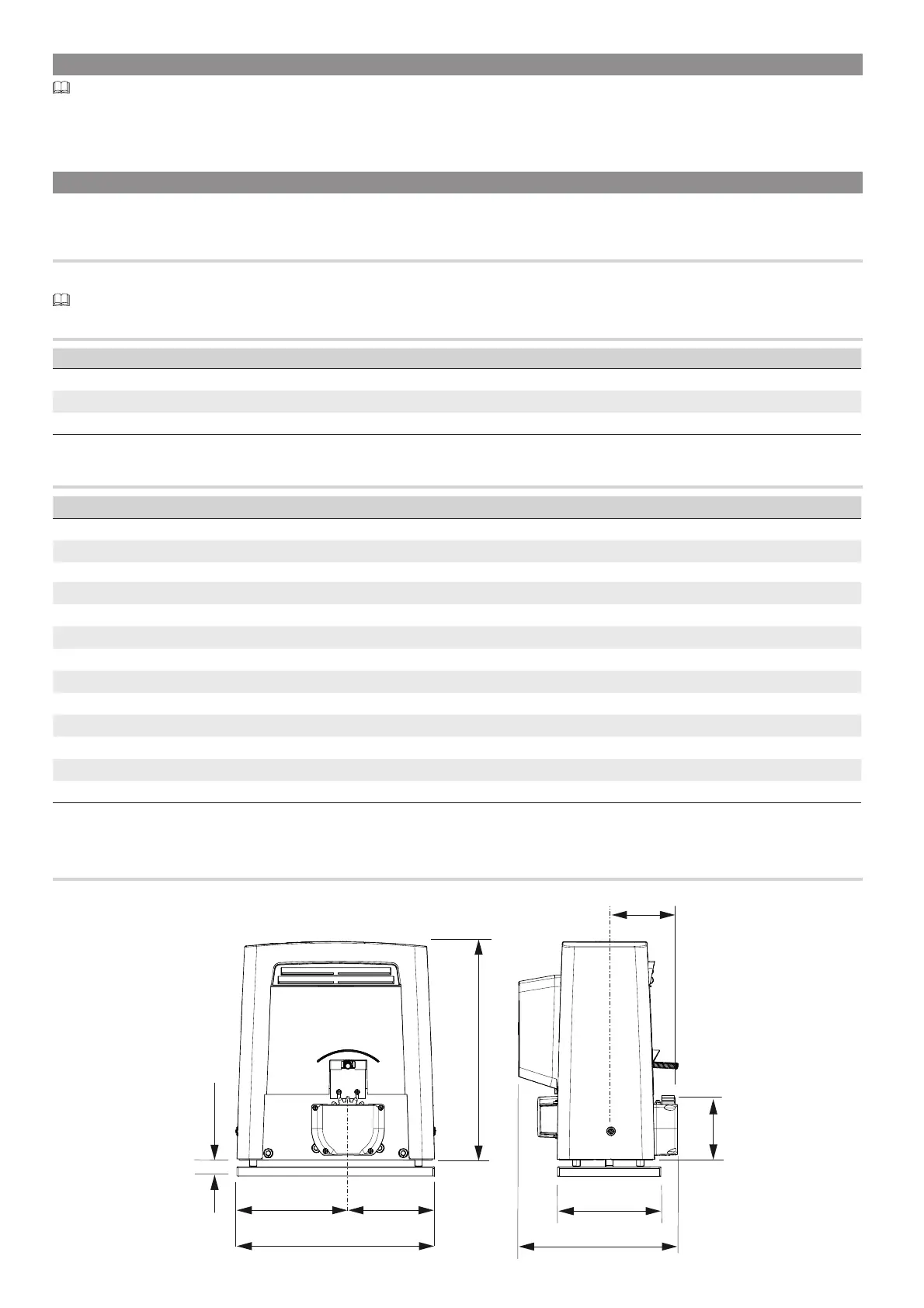

DIMENSIONS
KEY
This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.
The measurements, unless otherwise stated, are in millimeters.

CAME BK Series Specifications

General

Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
Motor Power	300W
Limit Switch Type	Mechanical
Safety Features	Obstacle detection
