Before Using the Machine

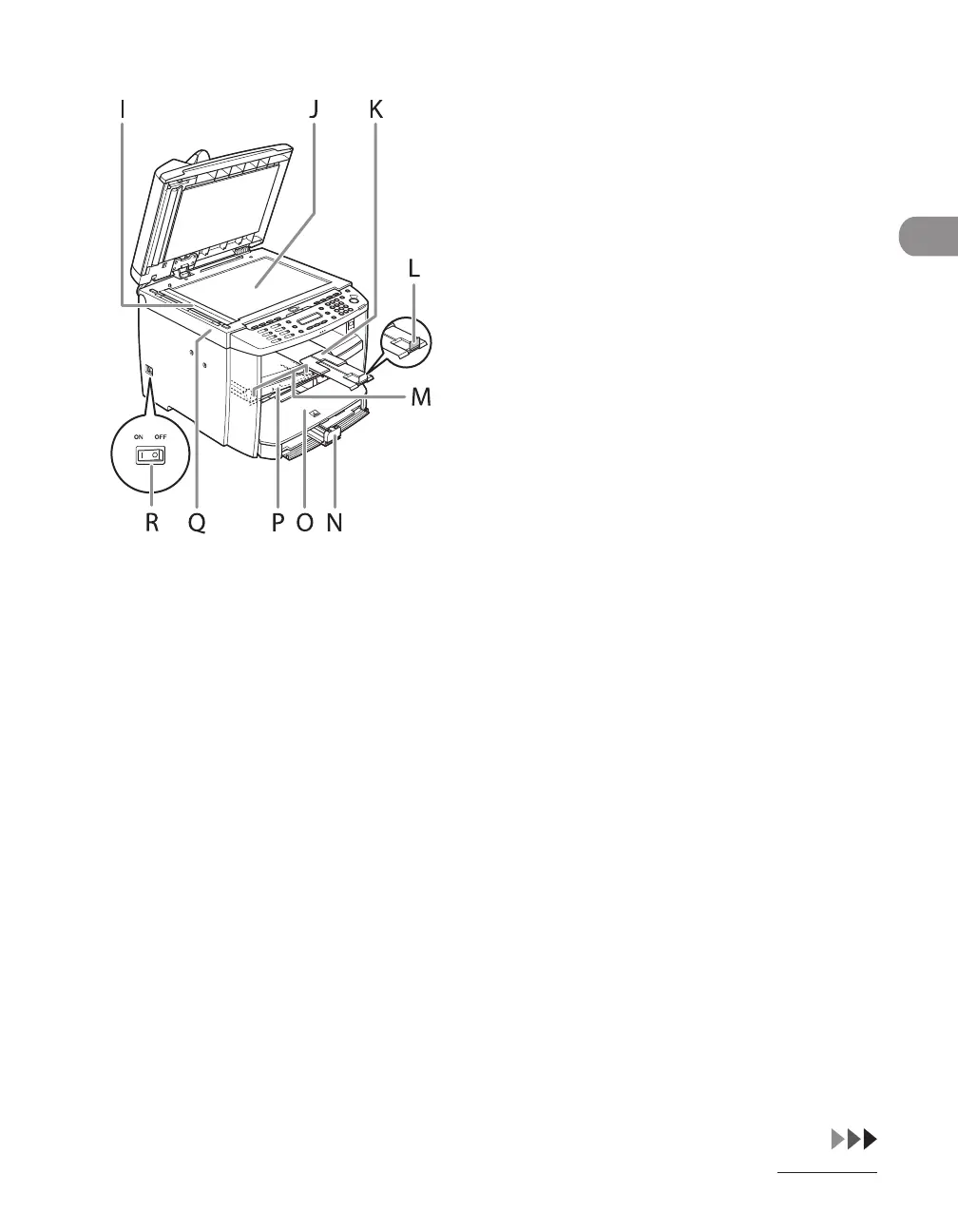

I Scanning area
Scans documents from the ADF.
J Platen glass
Place documents.
K Output tray extension
Extends the output tray.
L Paper stopper
Prevents the paper from falling off the output
tray.
Open the paper stopper from its original
position for LTR/A4 paper. For LGL paper, pull
out the output tray extension first, and then
open the paper stopper.
M Slide guides for multi-purpose tray
Adjusts to the width of the paper.
N Paper guide rail
Holds the paper supply.
O Dust cover
Protects the paper supply in the paper cassette
from the dirt and dust.
P Multi-purpose tray
Feeds paper when you insert one by one
manually.
Q Scanning platform
Open this platform when replacing the toner
cartridge or clearing paper jams.
R Main power switch
Turns the power on or off.
