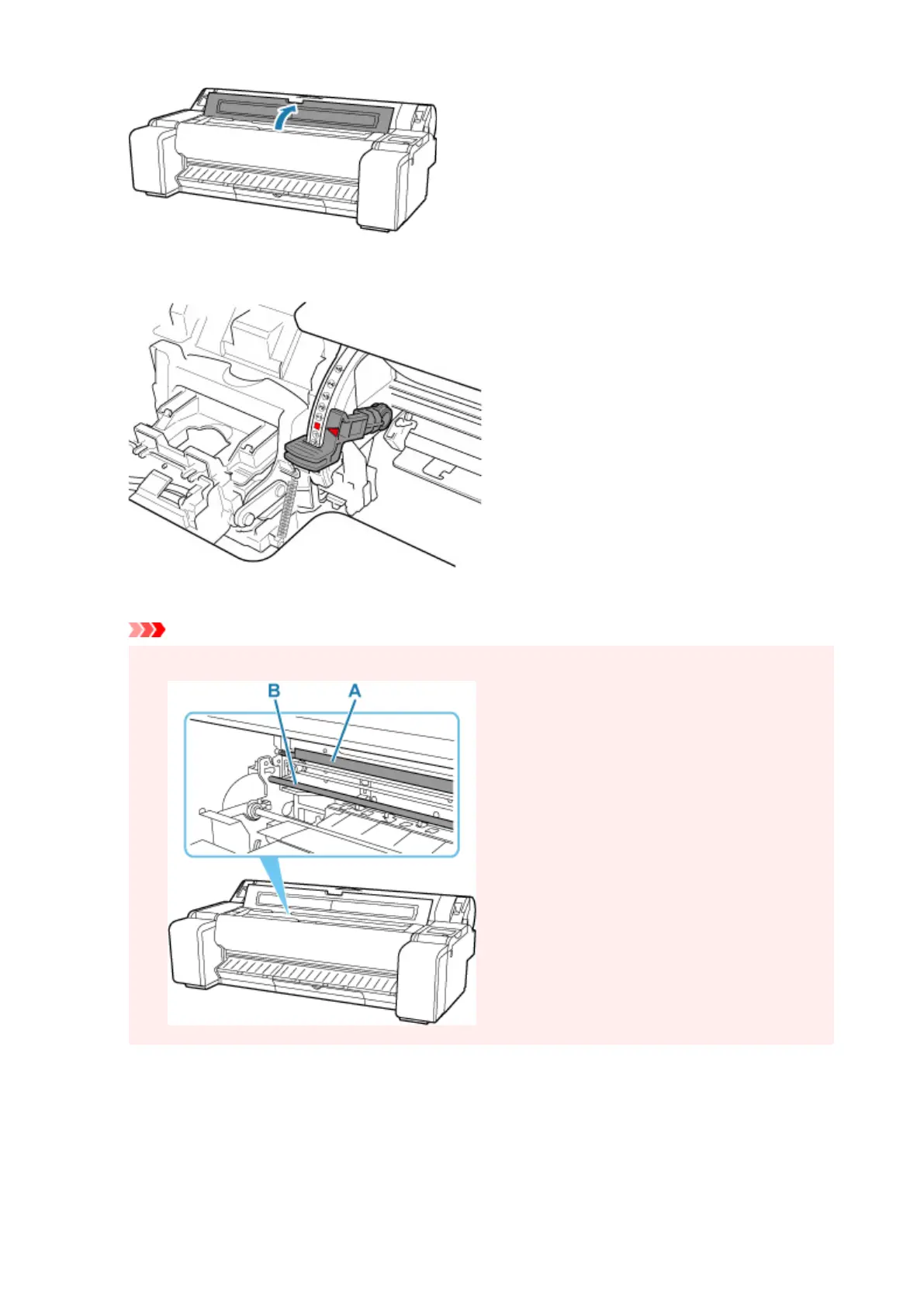

7. Align the angle adjustment lever with the red square and close the top cover.7.
A test pattern is printed for adjustment.
Important
• Do not touch the linear scale (A) or carriage shaft (B). Touching these may cause malfunction.•
8.
Examine the test pattern for adjustment. Determine the straightest set of lines.
8.
Example 1: Select "+2" in pattern (C).
