Canon MultiPASS MP360 - 3 Operation Panel Unit; Operation Panel Unit

Chapter 3
3-12
F-3-11

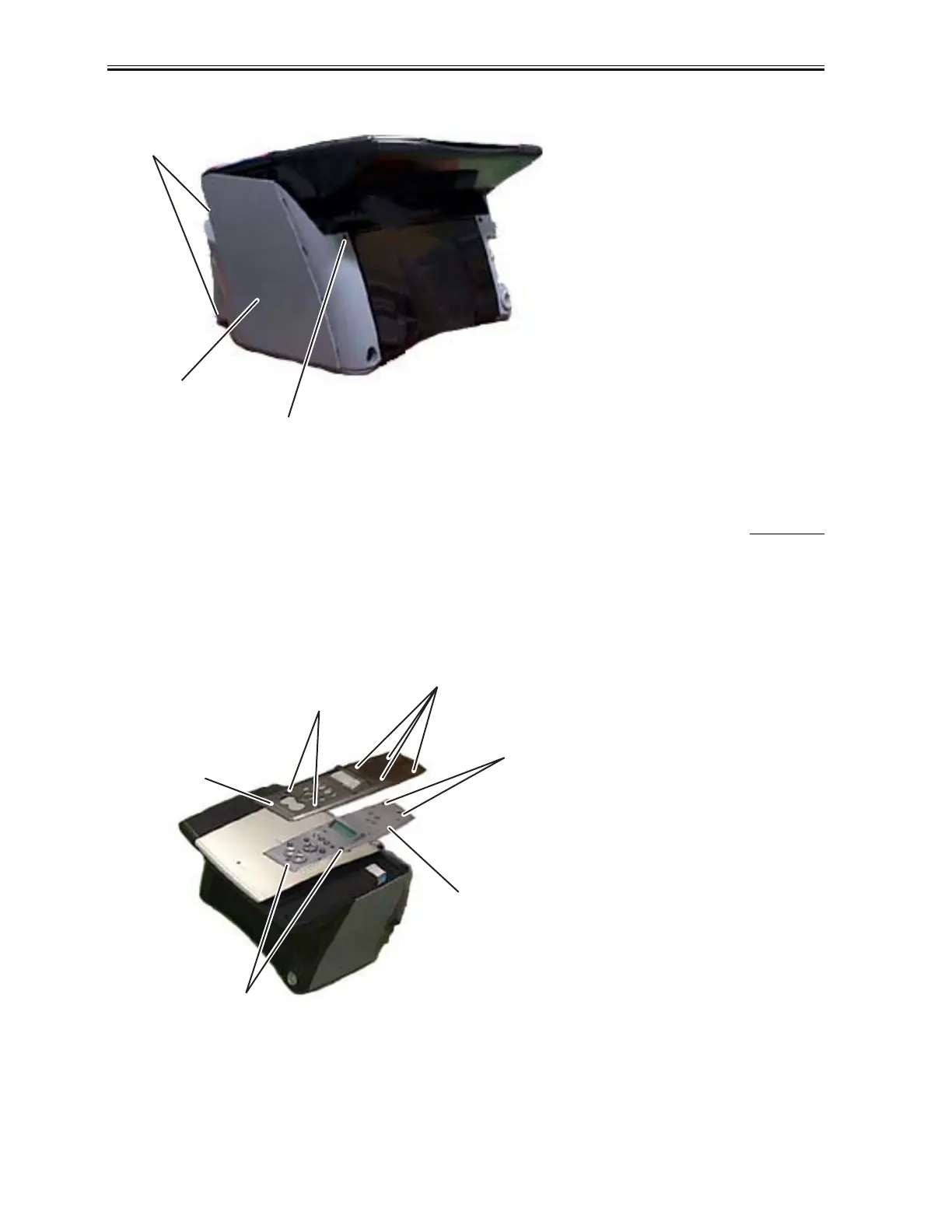

3.2.3 Operation Panel Unit
0002-5257
(1) Remove 6 claws (a) and then remove the operation panel cover.
(2) Remove 4 screws (b).
(3) Remove Connector J1 from the operation panel unit, and then remove the operation panel unit from
main unit.
F-3-12
h
Left Side Cover
h
a
a
Operaton Panel Unit
b
b
Operation Panel Cover
