Canon MultiPASS MP360 - 7 Modem Board; Modem Board

Chapter 3
3-17

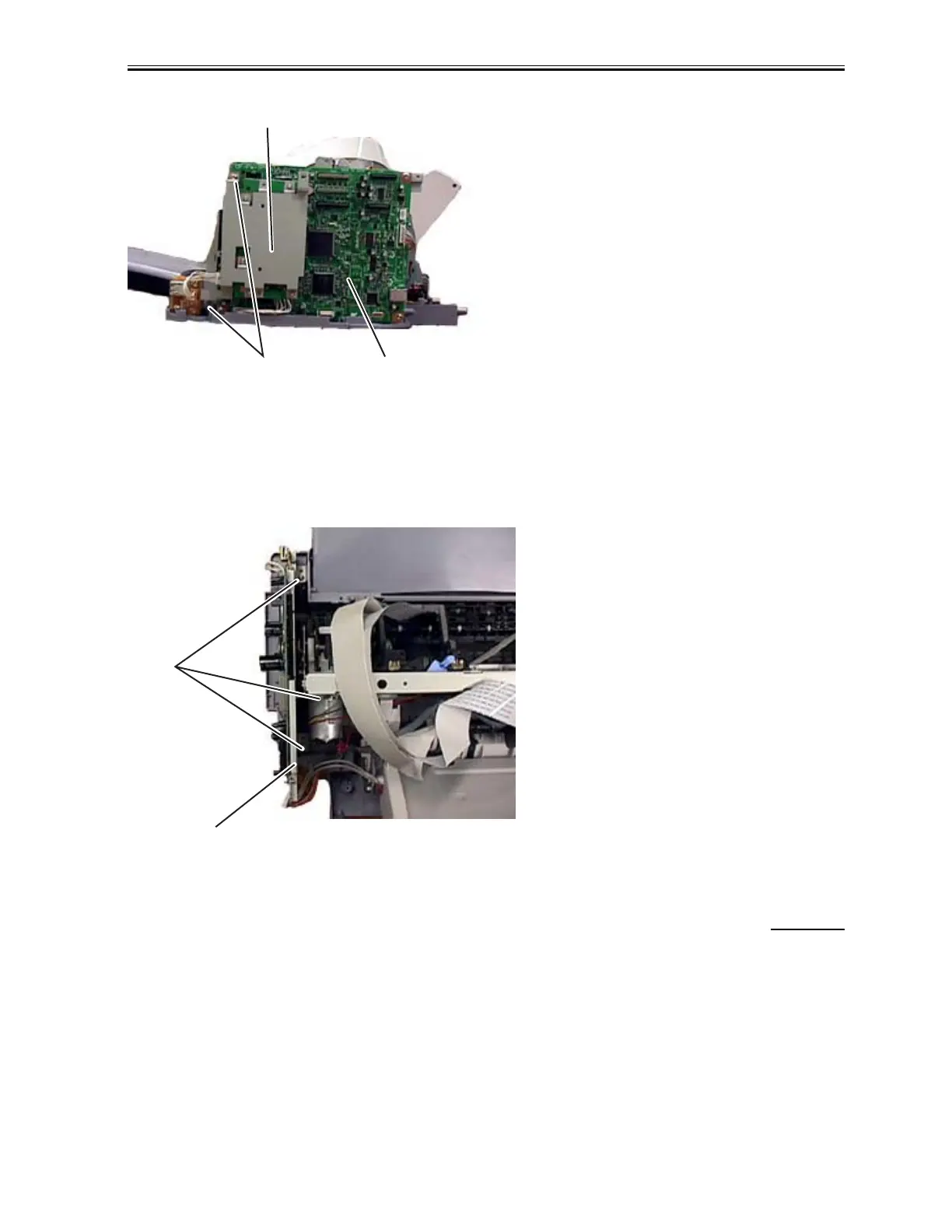

F-3-19
(10) Remove 3 screws (c) and then remove the SPCNT Board together with its frame from the main unit.
F-3-20
3.2.7 Modem Board
0004-2908
(1) Remove the SPCNT Board from the main unit.
(2) Remove 3 claws (a).
b
SPCNT Board
Multi-Card Reader Frame
c
SPCNT Board Frame
