Canon MultiPASS MP360 - 9 Power Supply Unit; Power Supply Unit

Chapter 3
3-20
F-3-24
3.2.9 Power Supply Unit
0002-5288
(1) Perform the basic disassembly procedures.
(2) MP390: Remove NCU and the modular board.
(3) Remove the scanner unit.
(4) Remove Print & ASF unit.
(5) Remove the screw (a) and then remove the Power supply unit cover.
(6) Remove the screw (b) and then remove the Power connector cover.

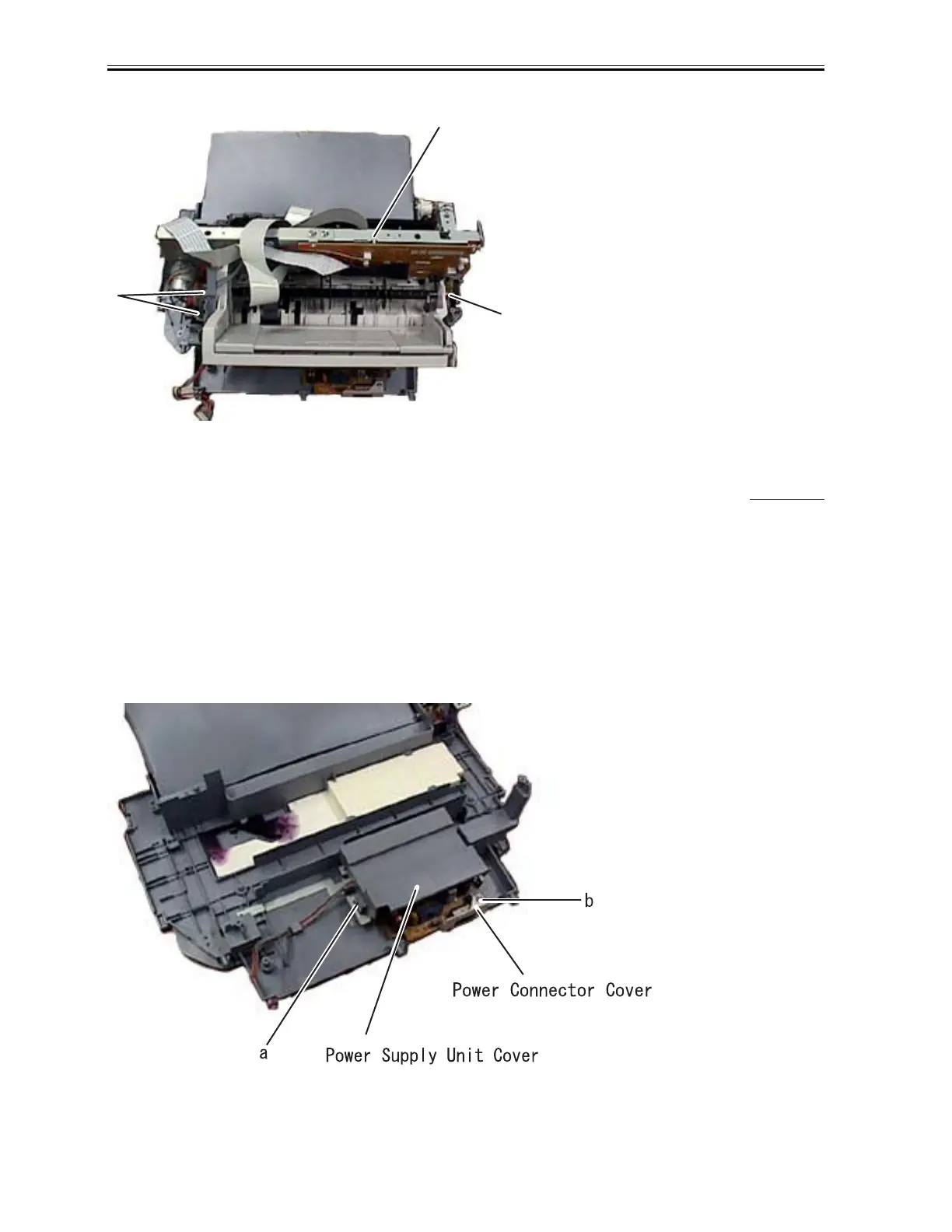

F-3-25
c
c
Print & ASF Unit
