Canon MultiPASS MP360 - Page 66

Chapter 3
3-15

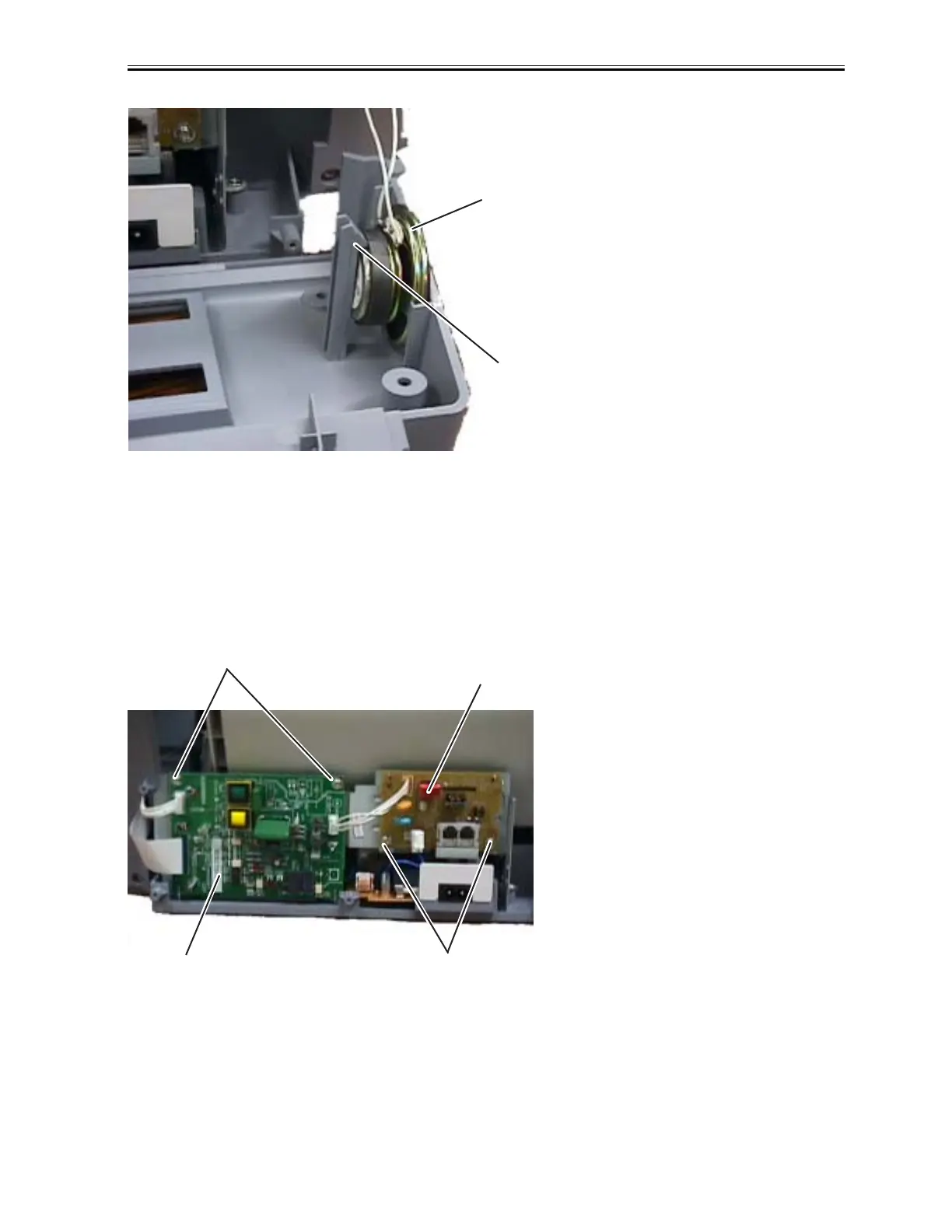

F-3-16
(3) Remove all cables connected to NCU Board.
(4) Remove two screws (c) and then remove NCU Board.
(5) Remove connector J3 from the modular board.
(6) Remove 2 screws (d) and then remove the modular board.
F-3-17
b
Speaker
c
d
NCU Board
Moduler Board
