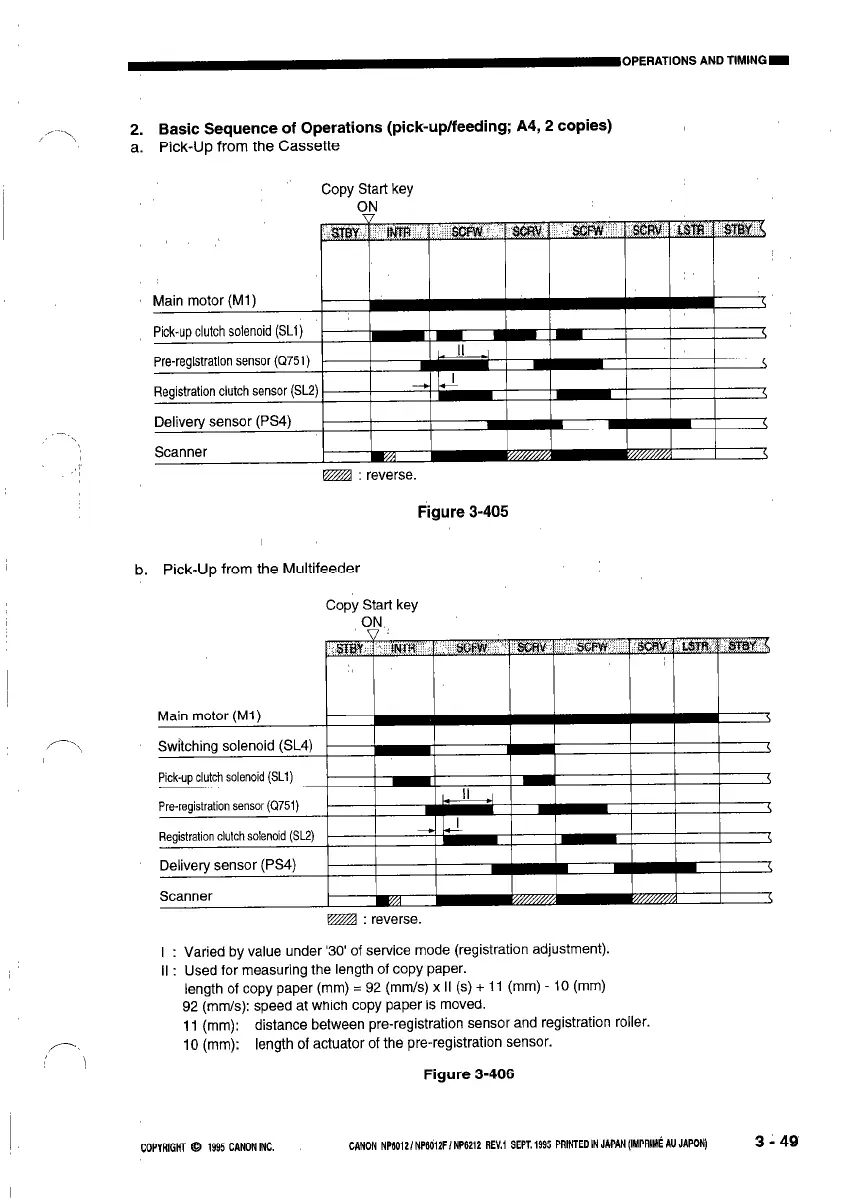

2. Basic Sequence of Operations (pick-up/feeding; A4, 2 copies)
a. Pick-Up from the Cassette
__
‘5
,i
,-.
/
Copy Start key
ON
EZZ : reverse.
Figure 3-405
b. Pick-Up from the Multifeeder
Copy Start key
ON
BZ2 : reverse.
I : Varied by value under ‘30’ of service mode (registration adjustment).
II : Used for measuring the length of copy paper.
length of copy paper (mm) = 92 (mm/s) x II (s) + 11 (mm) IO (mm)
92 (mm/s): speed at which copy paper is moved.
11 (mm):
distance between pre-registration sensor and registration roller.
IO (mm): length of actuator of the pre-registration sensor.
Figure 3-406
COPYRIGHT 0 1945 CANONINC.
CANON NP60121NP6012FINP6212 REV.1 SEPT.1995 PRlNTEDINJAPAN(IMPRIMt AUJAPON)
3 - 49
