Replacing/Installing

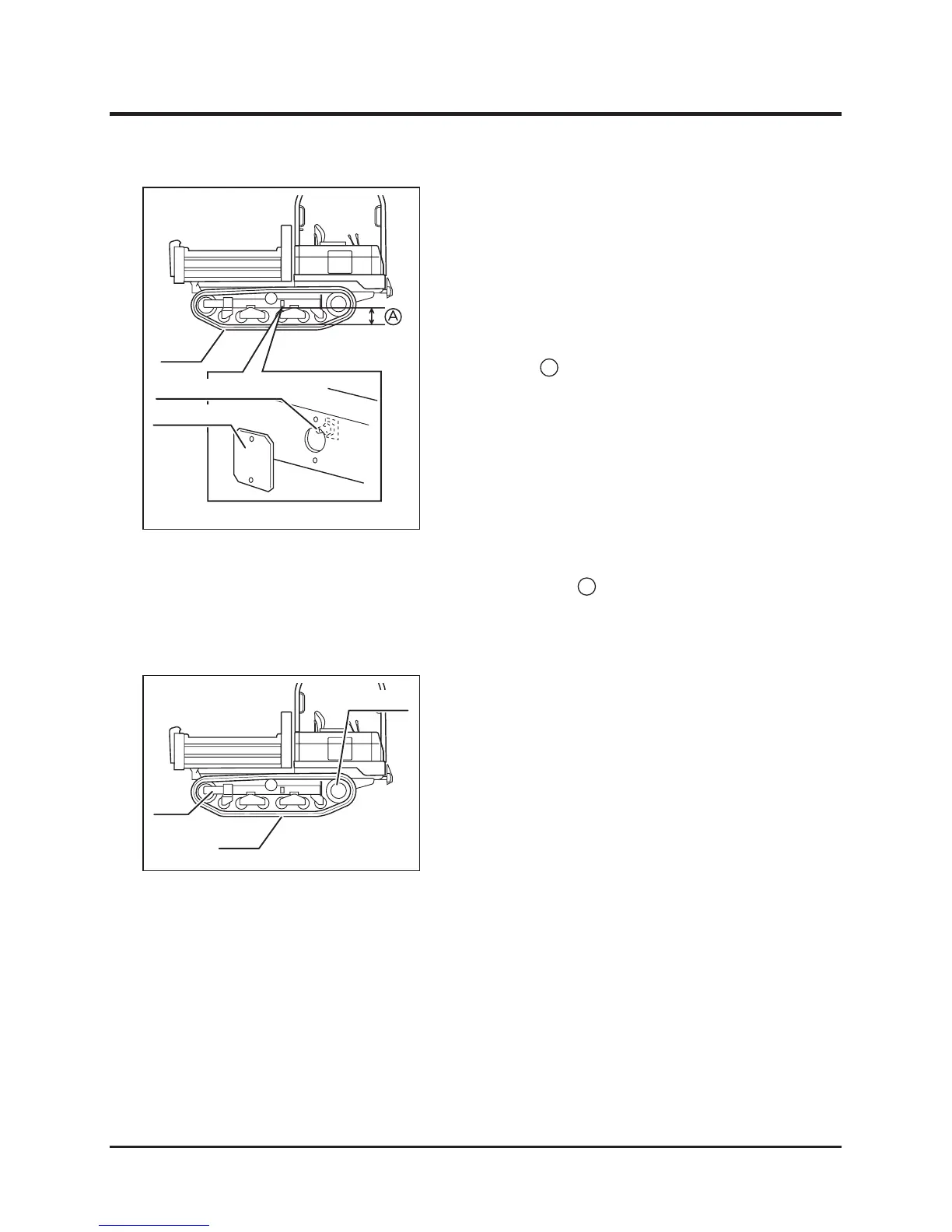

1. Park machine on a horizontal ground.
2. Jack up the front and the rear of chassis to
raise track on one side. Make sure track is
parallel to the ground surface.
3. Remove track adjuster valve cover.
4. Slowly loosen track adjuster valve to let
grease come out around valve to reduce
pressure inside track adjuster cylinder.
5. Remove valve.
6. Push idler wheel fork in, toward the front of
machine.
7. Remove track.
8. Fit new track, first on sprocket, then on idler.
9. Reinstall and tighten valve securely. Make
sure not to have valve O-ring get caught.
1. Park machine on a horizontal ground.
2. Jack up the front and the rear of chassis to
raise track on one side. Make sure track is
parallel to the ground surface.
3. Remove track adjuster valve cover.
4. Inspect the gap between track and track
frame ( A )to be between 224 and 225mm.
5. Slowly loosen track adjuster valve to let
grease come out around valve and track to
loosen.
6. When track is loose enough, tighten valve.
Make sure not to have valve O-ring get
caught.
7. Attach grease pump to track adjuster valve
and pump grease into track adjuster cylinder
until the gap A is between 224 and 225mm.
8. Remove grease pump and install valve
cover.
Adjusting
