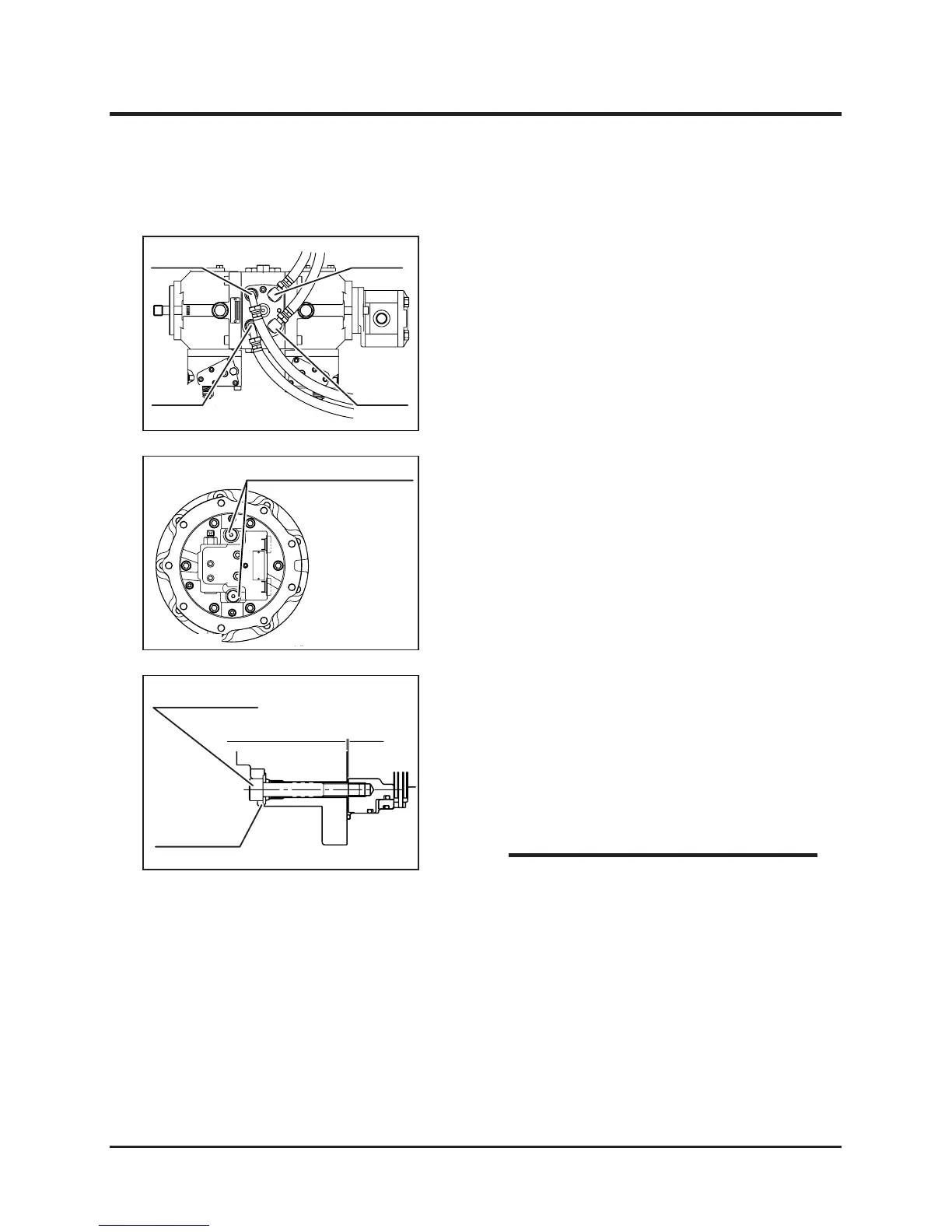

1. Disconnect the hoses from the ports A1 and
B1 on the HST pump, and bypass them with
a hose with appropriate fittings.
2. Disconnect the hoses from the ports A2 and
B2 on the HST pump, and bypass them with
a hose with appropriate fittings.
3. Cap the ports with plugs.
3670M-0702-033E
Port A2
Port B2
Port A1
Port B1
3670M-0702-043E
Parking Brake Release Bolt
3670M-0702-053E
M10 X 1.5 X 70L
Plain Washer
Brake Piston Stroke 1mm
4. Remove the cover on the back of the HST
motor on both sides.
5. Remove PF1/4 plugs from the parking brake
release ports.
6. Screw in an M10X1.5X70L bolt with a
nominal 10mm plain washer into each of
those ports and tighten it until the brake
becomes free.
7. Hitch the wire rope to the towing hook on the
back end of the machine. Tow slowly.
• Towing Capacity: 2500kg
NOTE
To Next Page
