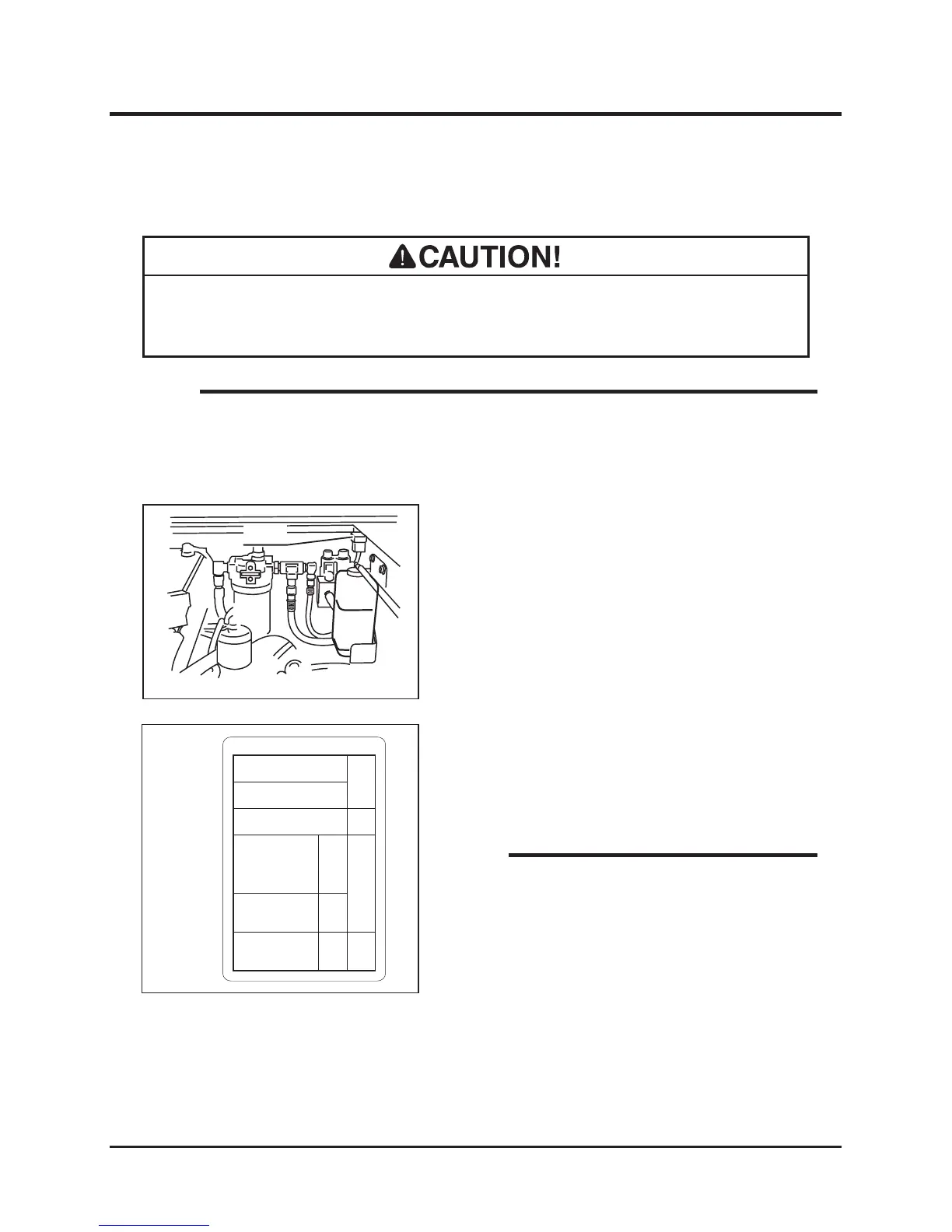

Fuses
1. Open engine hood.
2. Open fuse housing lid.
• If a fuse blows, investigate the cause and repair it before replacing the fuse.
Always replace a fuse with the one of the correct rating.
Lights, Horns/
Phares, Klaxon/
Licht, Hupe/
Fa
ri, Clacson
Auxiliary Power/
Alimentation
Additionale/Ersatz/
Alimentazione Ausiliaria
Fuel Pump,
Indicators/
Pompe d'essence, Indicateurs/
Anzeige, Kraftstoffpumpe/
Pompa carburante,
Spia di controllo
5A
5A
10A
10A
10A
Space/
Libre/Frei/Libero
Space/
Libre/Frei/Libero
Space/
Libre/Frei/Libero
Spare/
Rechange/
Ersatz/Ricambio
Spare/
Rechange/Ersatz/
Fusibili di Ricambio
Fuses/Fusibles/Sicherungen/Fusibili
3670 5109 001
3670M-0506-030E
3. Locate the blown fuse and replace it with a
new one of the correct rating.
4. Put the lid back in place.
5. Close engine hood.
• Fuel Pump, Indicators: 5A
• Lights, Horn: 10A
• Auxiliary Power: 10A
• Spare: 5A
• Spare: 5A
