CanyCom S25A - Fan Belt

-47-
Maintenance 5
Fan Belt
1. Open engine hood.
2. Press the middle of fan belt with a force of
10kgf to see belt deflects between 7 and 9
mm
3. If the deflection is not within this range,
loosen alternator mounting bolts and move
alternator to adjust belt tension.
3670M-0504-140E

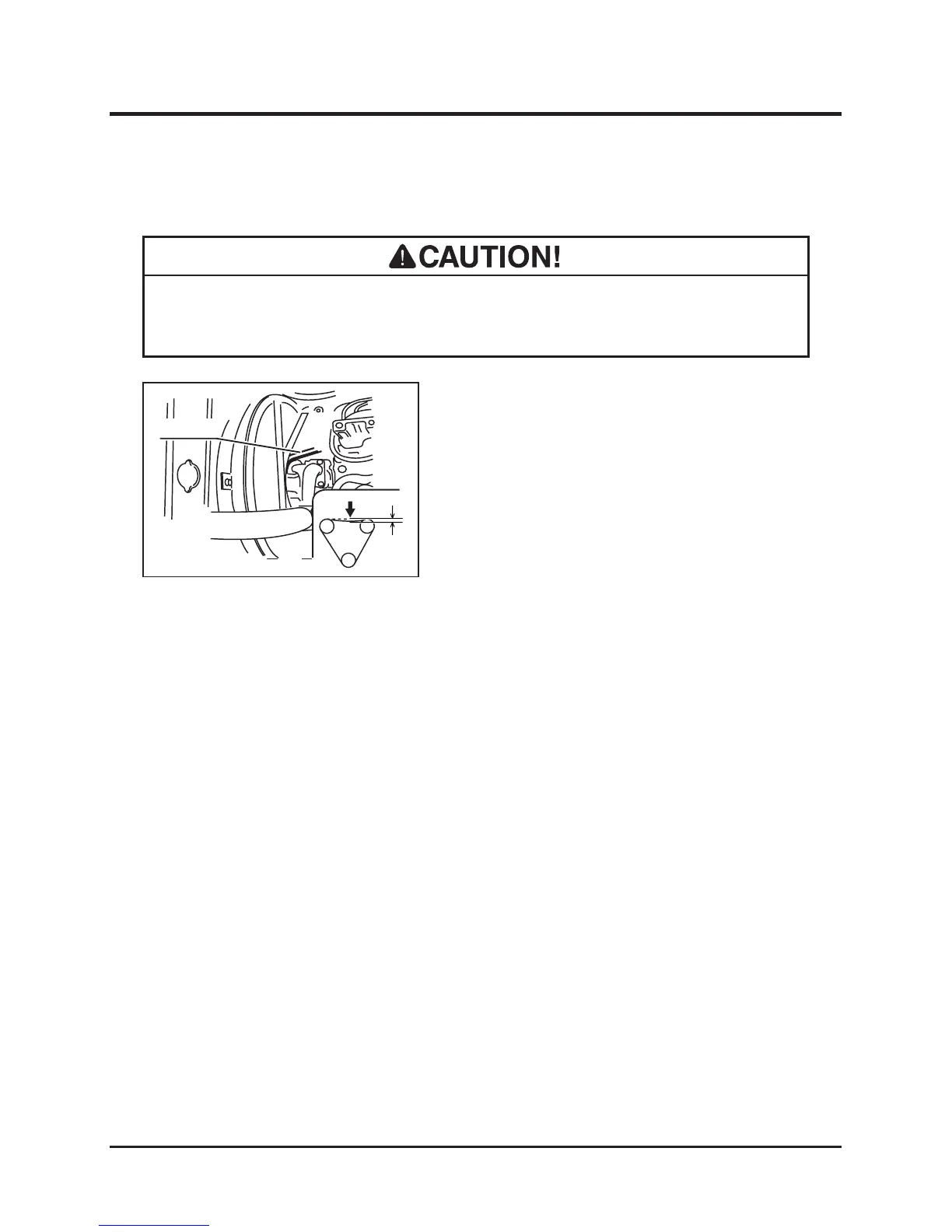

Fan Belt
10kgf
Approx.
7-9mm
• Check belt tension regularly. Loose fan belt causes premature wear on belt or
insufficient cooling.
