Operation
-26-
4

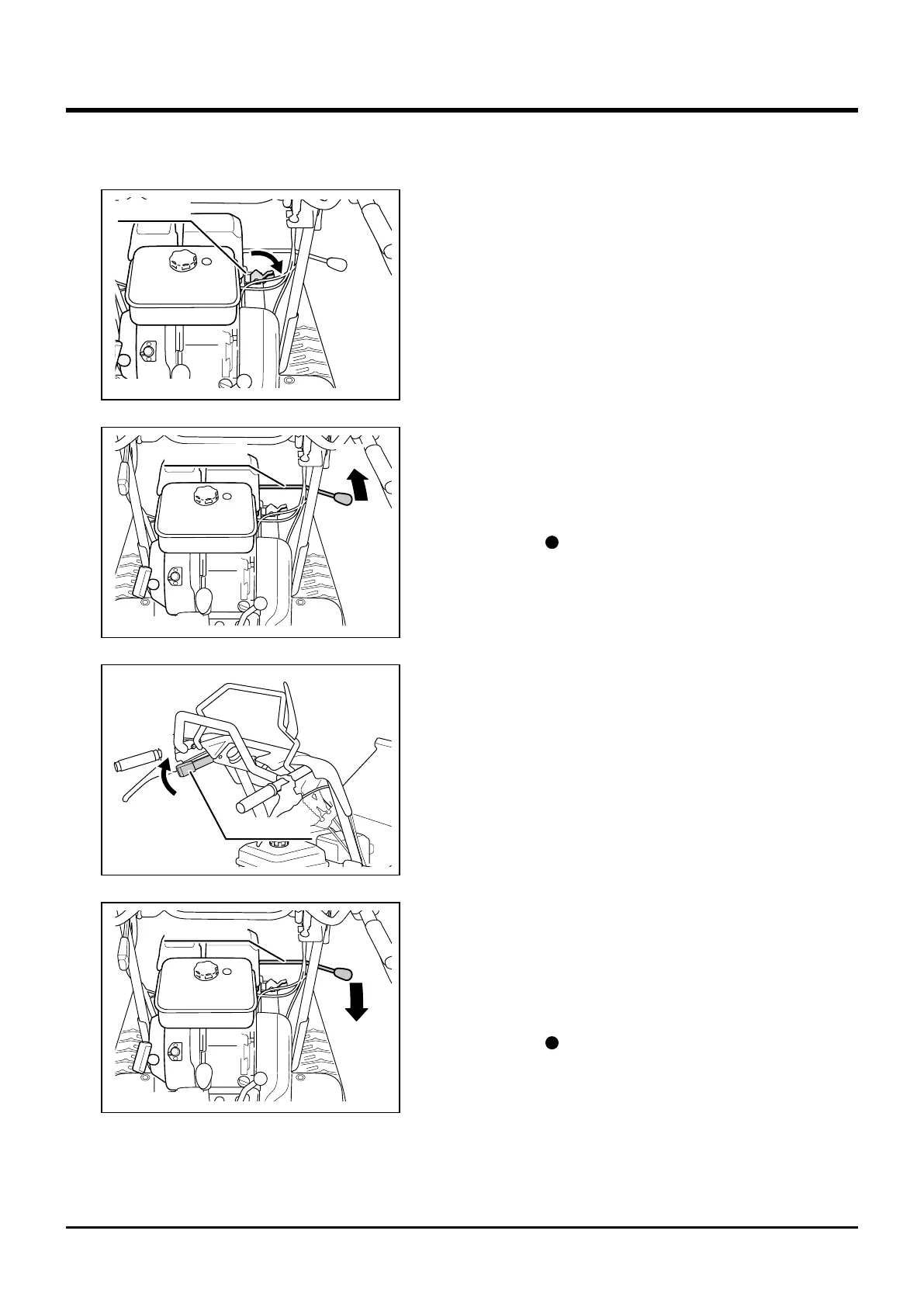

Lock Plate
3577M-6107-0403-010
2. Turn lock plate so that dump lever can be
operated.
3. Move dump lever up to raise loading deck.
4. When loading deck reaches its upper limit,
a hissing noise is heard; move dump lever
back to [ (neutral)] position.
5. Move dump lever down to lower loading
deck.
6. When loading deck reaches its lower limit,
a hissing noise is heard; move dump lever
back to [ (neutral)] position.
Dump Lever
Up
3577M-6107-0403-050
Dump Lever
3577M-6107-0403-060
Down
3577M-0403-040US
Dump Lever
Up
Raising using Deck Lever
Raising using Handlebar Lever
3. Move dump lever up to raise loading deck.
4. When loading deck reaches its upper limit, a
hissing noise is heard; release dump lever. It
automatically returns to neutral position.
Lowering using Deck Lever
