-27-
Operation 4

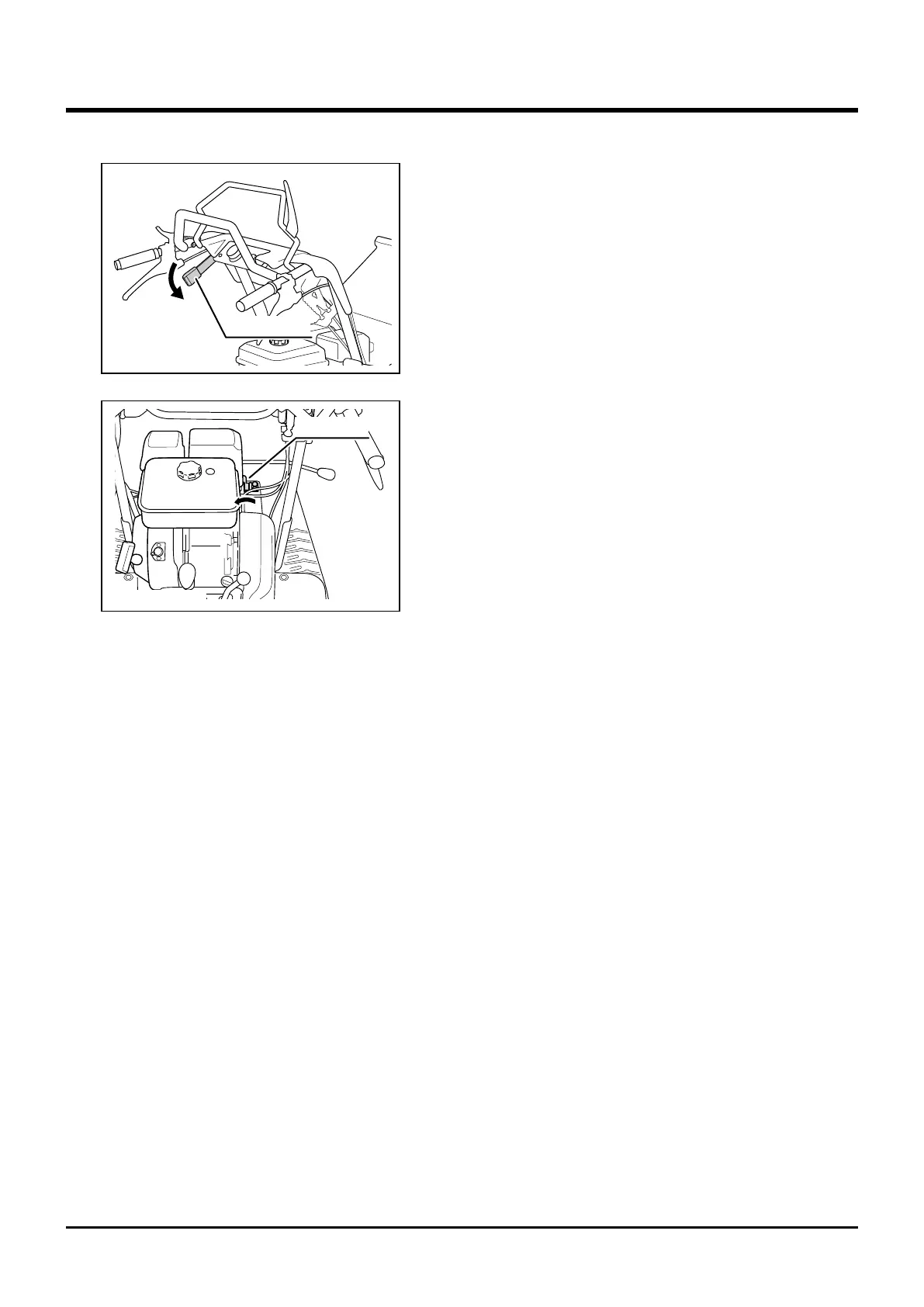

5. Move dump lever down to lower loading
deck.
6. When loading deck reaches its lower limit, a
hissing noise is heard; release dump lever. It
automatically returns to neutral position.
3577M-0403-080US
Dump Lever
Down
Lowering using Handlebar Lever
7. Turn lock plate back in place to lock dump
lever.
Lock Plate
3577M-0607-0403-070
