27

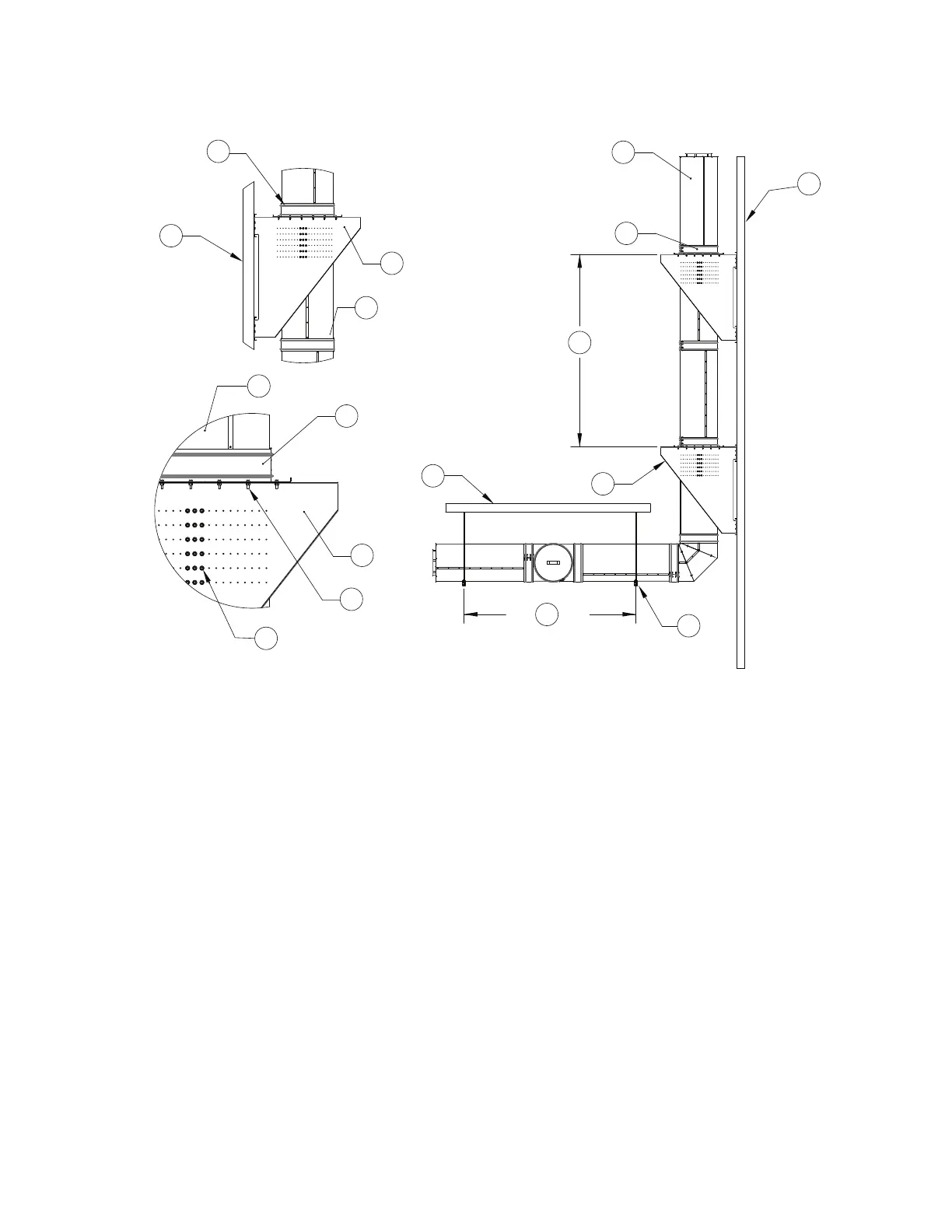

Figure 17 - Vertical Support Details
1
1
1
2
2
2
3
3
3
4
4
5
B
A
7
6
8
1. Double V-band - The V-band is located above
vertical support.
2. Vertical Support
3. Duct System
4. Types of Wall Construction: 2” x 4” Wood
Studs, 2” x 4” (25) Gauge Studs, Concrete/
Masonry
5. Horizontal Support
6. Ceiling
7. 5/16” Whiz Nuts and Bolts. Used to secure
top plate.
8. 5/16”-18 x 1-1/2” Self-Drilling Screws
A. Vertical Support Spacing, refer to Table 6
B. Horizontal Support Spacing, refer to Table 5
