8200-M035-O1 Rev C ļ 200 Installation & Technical
LOCAL/REMOTE SETUP
If the indicator is to function as a remote indicator, at the SErSCL (REMOTE INDICATOR
SETUP) prompt, press the ASTERISK/UP ARROW key to select YES and then press the
TARE/ENTER key.
With SErSCL set to YES, the LrP= (Local/Remote Port) will be displayed to select the serial
port for the LOCAL/REMOTE communications.
With the LrP= (Local/Remote Port) displayed, press the TARE/ENTER key to show the
current setting. If the setting displayed is acceptable, press the TARE/ENTER key again to
save it. Otherwise, use the ASTERISK/UP ARROW key to toggle to a new setting and then
press the TARE/ENTER key to save it. Allowable values are: 1 for port 1 or 3 for the optional
2xx-RS232 card (if installed).
Any unused RS-232 serial port may be used (see Figure 13 for port 1 interconnect wiring).
Note that this is for distances less than 100 feet.
IMPORTANT! The selected serial port (Sio?) for the remote indicator must be
configured the same as the serial port used for the local indicator. In addition, the
Continuous Output must be set to NO (Cont=no).

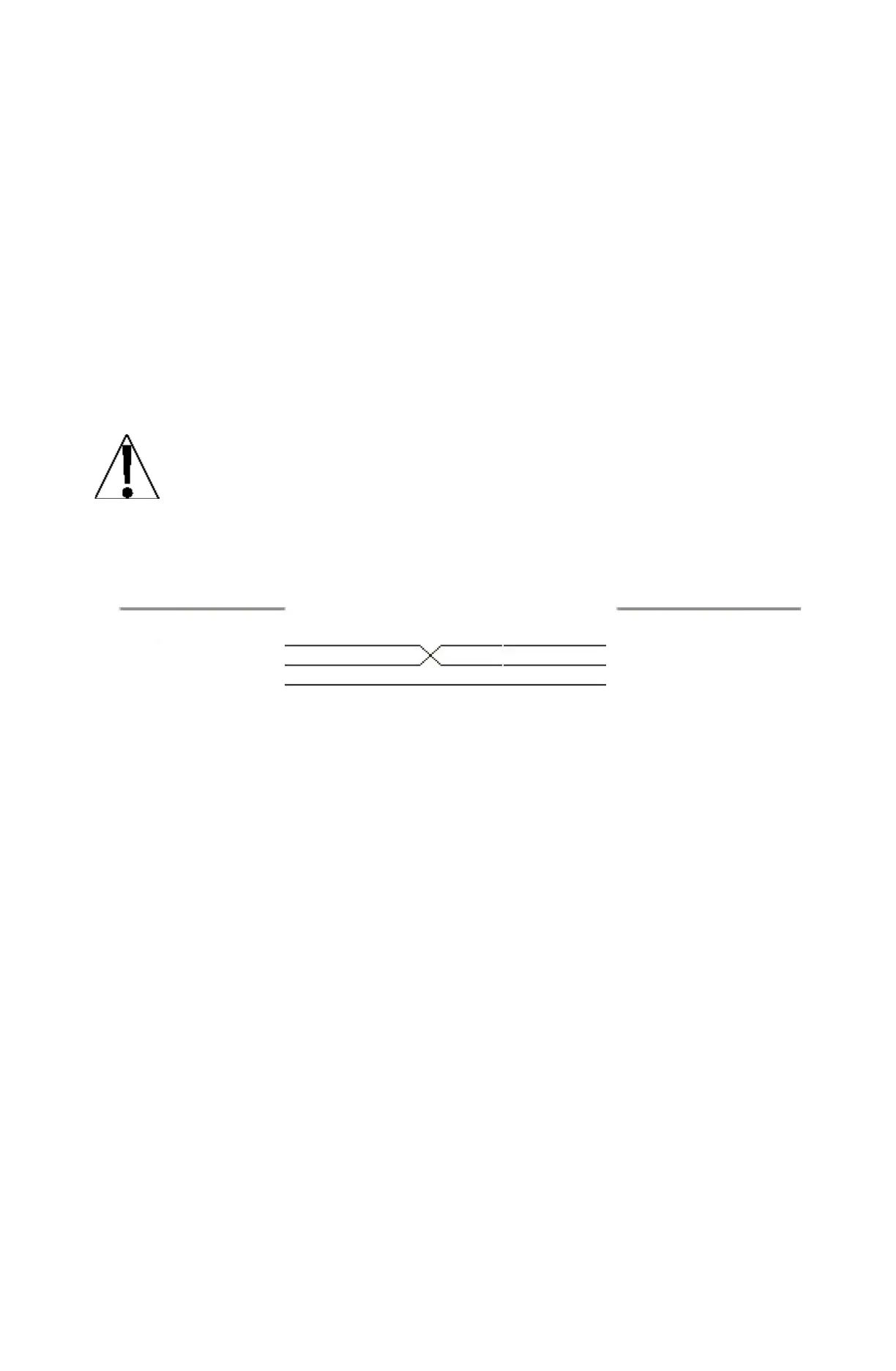

Local/Remote 200 RS-232 Wiring
Figure No. 13
To Next Page
