8200-M035-O1 Rev C 200 Installation & Technical
SETUP AND CALIBRATION
Your Model 200 Weight Indicator has been
thoroughly tested and calibrated before being
shipped to you. If you received the indicator
attached to a scale, calibration is not
necessary. If the indicator is being
connected to a scale for the first time or
recalibration is necessary for other reasons,
proceed as indicated.

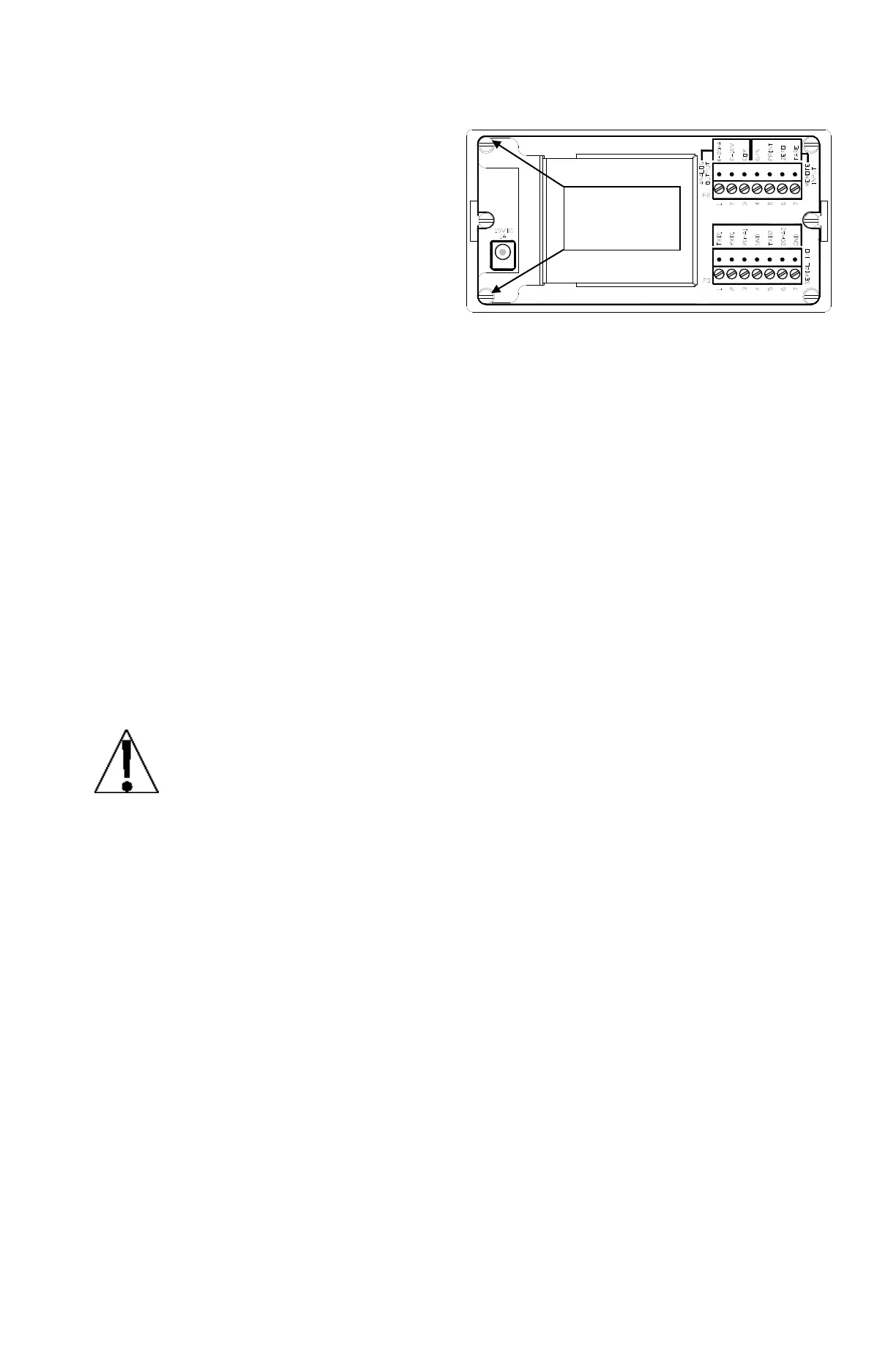

The calibration switch is located on the
enclosure rear panel. You may gain access
to this switch by removing the 2 screws
securing the calibration switch access cover
on the rear panel. Refer to Figure No. 11.
During setup and calibration it will be necessary to enter operational parameters using the
indicator keypad.
Pressing the TARE/ENTER key will cause the data entered or displayed to be
retained and the indicator to advance to the next prompt.
The functions of numeric keys are replaced by using the UNITS/LEFT ARROW and
the ASTERISK/UP ARROW keys.
The cursor location is identified by the blinking character and can be advanced to
the next position (left) by pressing the UNITS/LEFT ARROW key.
Pressing the ASTERISK/UP ARROW key will change the blinking character to the
next value. Continue to press this key to toggle between the available values for the
setup parameter.
Pressing the ASTERISK/UP ARROW key when a setup parameter (not a parameter
value) is displayed, will "backup" to the previous prompt.
DO NOT operate the keypad with pointed objects (pencils, pens, etc).
Damage to keypad resulting from this practice is NOT covered under warranty.
Enter Setup Mode
To enter the setup mode, with the indicator ON, insert a small screwdriver or other tool through
the calibration switch access hole on the rear panel. Press and release the calibration switch.
The menu SetUP will be displayed. Continue to press and release the switch to rotate
through the beginning point for entering the setup mode.
SEtUP Setup Mode (starts at USA prompt)
A-d Analog to Digital Filtering (starts at dFLt= prompt)
CAL Calibration (starts at CAL1 prompt)
SSt Setup Guardian Scale (starts at tLoU prompt)
Sio Serial Input/Output (starts at Sio prompt)
Print Print Tab Settings (starts at POrt prompt)
F SPAn Fine Span Adjustment
Hi rES Display high-resolution weight mode
LoCoUt Key lock out function
option Option Card Configuration (only displayed when option card is installed)
If you press the TARE/ENTER key at the SetUP prompt, you may proceed through to the next
section (up to and including f SPAn ) by pressing the TARE/ENTER key.
Calibration
Access Cover
Screws
