8527-0544-2M Rev G APS Enterprise Scale 10
SETUP AND CONFIGURATION
The keypad of the Enterprise has two keys, ZERO and UNITS which have the following
functionality when in setup mode:
ZERO – When a prompt is currently being shown (not the value of the prompt), pressing the
ZERO key will skip to the next prompt. If the value of a prompt is being shown,
pressing the ZERO key will toggle between the acceptable values for the current
prompt.
UNITS – When a prompt is currently being shown (not the value of the prompt), pressing the
UNITS key will display the value for that prompt. If the value of a prompt is being
shown, then pressing the UNITS key will save the current value and advance to
the next setup prompt.
To Enter Setup

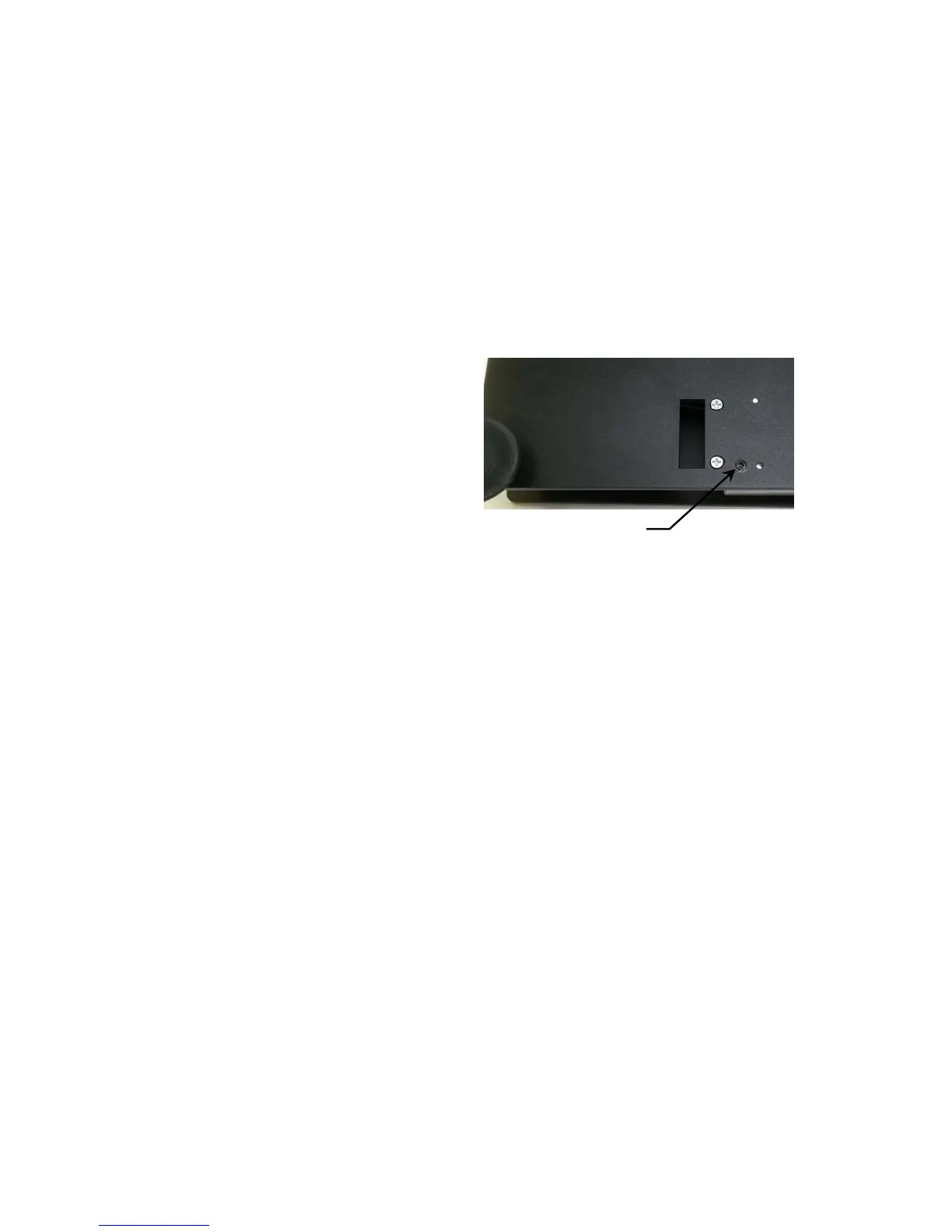

1. Remove the Calibration Switch Access
screw located on the bottom of the
scale base.
2. With the scale ON, use a 1/8” or 3 mm
Hex Key Wrench or other small tool
and press the Calibration Switch.
3. The display will change to show type.
Type (Scale Type)
This will determine the capacity, interval, decimal, and converted units (if applicable).
Press the UNITS key to show current setting. If value displayed is acceptable, press the
UNITS key again to save it. Otherwise, press the ZERO key to step through selections for
a new value and then press the UNITS key to save it. The following types are selectable
for the Enterprise scale:
10
= APS10 30 lb x 0.01 lb (15 kg x 0.005 kg)
15
= APS15 15 lb x 0.01 lb (7.5 kg x 0.005 kg)
30
= APS30 30 lb x 0.01 lb (15 kg x 0.005 kg)
150
= APS150 150 lb x 0.05 lb (60 kg x 0.02 kg)
250
= APS250 250 lb x 0.1 lb (125 kg x 0.05 kg)
160
= APS160 160 oz x 0.1 oz
70
= APS70 70 lb x 0.02 lb (31 kg x 0.01 kg)
20
= APS20 30 lb x 0.01 lb (15 kg x 0.005 kg)
8
= APS8 15 lb x 0.01 lb (7.5 kg x 0.005 kg)
12
= APS12 160 oz x 0.1 oz
TEST
FACTORY TEST SETTINGS
Calibration Switch Access
To Next Page
