8527-0544-2M Rev G ļ APS Enterprise Scale 5
INSTALLATION, CONT.
(APS250 ONLY)
Unpacking and Setup
1. Remove the scale display, hardware pack, power supply, scale cover and scale base
assembly from the shipping carton. Remove all packing material and then examine the
scale to make certain there is no shipping damage. Should damage be discovered contact
the shipping company as soon as possible. The packing material and shipping carton
should be retained for possible examination by the shipping company.

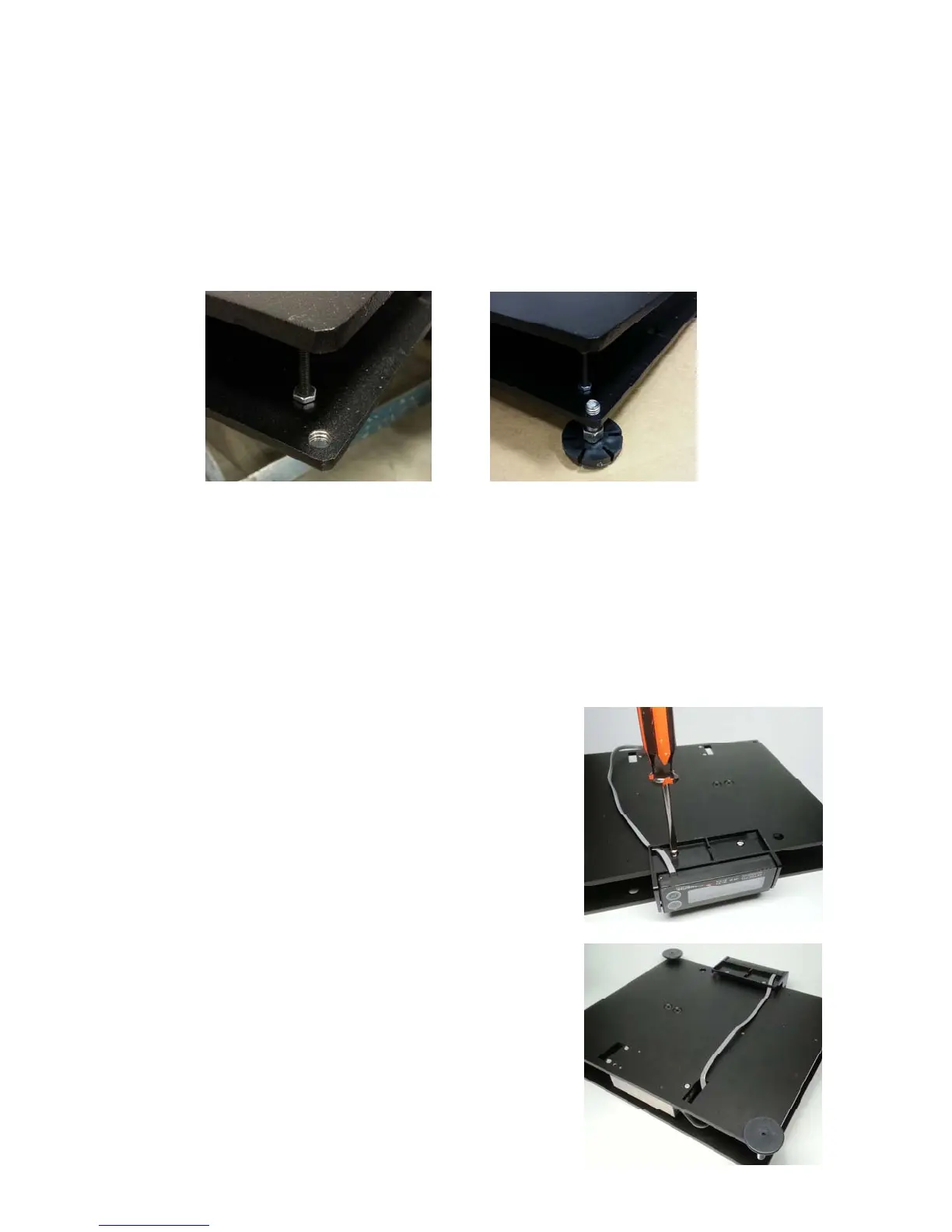

2. Remove the four leveling feet from the hardware pack and install in each corner of scale
base as shown. NOTE: Leveling feet must be in place to operate the scale.
3. To mount the display on the scale base, use the two included mounting screws in the
hardware pack.
4. Insert the screws through the two holes in the scale
display bracket and attach the bracket to the scale
base.
5. Route the cable into the scale and plug into scale
display port (see interconnection section for port
location and more information).
