8527-0544-2M Rev G ļ APS Enterprise Scale 4
INSTALLATION
(ALL MODELS EXCEPT APS250)
Unpacking
Remove the scale from the shipping carton. Remove all packing material and then examine
the scale to make certain there is no shipping damage. Should damage be discovered contact
the shipping company as soon as possible. The packing material and shipping carton should
be retained for possible examination by the shipping company.
Determine where the scale is to be located. It should be a smooth surface capable of
supporting both the scale and any load to be placed on the scale. It should not be in direct
sunlight nor should it be subject to air flow from heating/cooling vents, fans or similar devices.
Plug-in the 12VDC adapter to use scale. Refer to Electrical Power section of this manual for
more instruction. The scale is now ready for use.
Level Adjustment
Place the scale in the chosen location and remove the stainless steel platform. The platform
can be removed by lifting upward on it removing it from the weighbridge. Locate the small
level indicator on the scale base to the right of the display and check to make certain that the
scale is level.

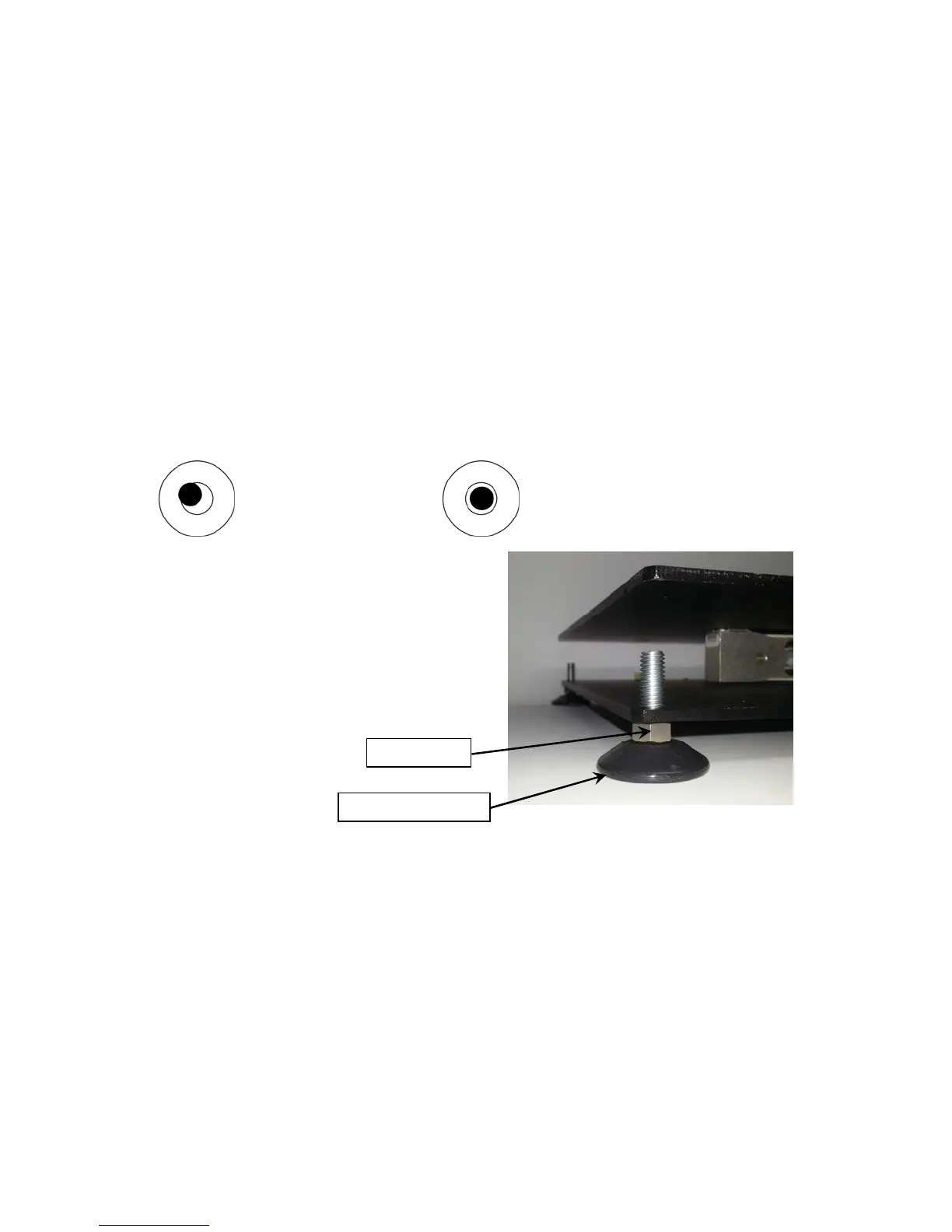

NOT LEVEL LEVEL
Bubble is not Bubble is
within circle within circle
If the level indicator does not show a level
indication, the mounting feet should be adjusted to
obtain a level condition. To adjust a mounting foot,
first loosen the lock nut (located under the scale
base) and then turn the mounting foot in the
required direction to raise or lower that corner of
the scale. Once a level condition has been
achieved, secure the mounting foot settings by
tightening each of the lock nuts. Replace the
platform on the weighbridge.
MOUNTING FOOT
LOCK NUT
