ir33 universale +030220801 - rel. 2.1 - 21.06.2011
P30 Low temperature alarm threshold on
probe 2
if P34=0, P30=0: threshold disabled
if P34=1, P30=-50: threshold disabled
-50
(-58)
-50
(-58)
P31 °C(°F)
P31 High temperature alarm threshold on
probe 2
if P34=0, P31=0: threshold disabled
if P34=1, P31=150: threshold disabled
150
(302)
P30 150
(302)
°C(°F)
P32 Alarm di erential on probe 2 2(3,6) 0 50 (90) °C(°F)
P30 Low temperature alarm threshold on
probe 2
if P34=0, P30=0: threshold disabled
if P34=1, P30=-199: threshold disabled
-50
(-58)
-199
(-199)
P31 °C(°F)
P31 High temperature alarm threshold on
probe 2
if P34=0, P31=0: threshold disabled
if P34=1, P31=800: threshold disabled
150
(302)
P30 800
(800)
°C(°F)
P32 Alarm di erential on probe 2 2(3,6) 0(0) 99,9
(179)
°C(°F)
P33 Alarm delay time on probe 2(**) 120 0 250 min(s)
P34 Type of alarm threshold on probe 2
0=relative; 1=absolute
10 1 -
Tab. 8.b
P28 sets the minimum time required to generate a high/low
temperature alarm (E04/E05) or delayed alarm from external contact
(E03).
In the  rst case (E04/E05) the unit of measure is minutes, in the second
case (E03) it is seconds.
Alarms E04 and E05 have automatic reset. P27 represents the hysteresis
between the alarm activation value and deactivation value.
If Prg/mute is pressed when the value measured is above one of the
thresholds, the buzzer is immediately muted, while the alarm code and
the alarm output, if set, remain active until the value measured is outside
of the activation threshold.
P28 sets the minimum time required to generate a high/low temperature
alarm (E04/E05) or delayed alarm from external contact (E03).
To generate an alarm, the value measured by probe B1 must remain
below the value of P25 or above the value of P26 for a time greater than
P28. For an alarm from digital input (c29, c30=3), the contact must remain
open for a time greater than P28. In the case of an alarm event, a counter
starts and generates an alarm when reaching the minimum time P28. If
during the count the value measured returns within the threshold or the
contact closes, the alarm is not signalled and the count is reset. When a
new alarm condition occurs, the count starts from 0 again.

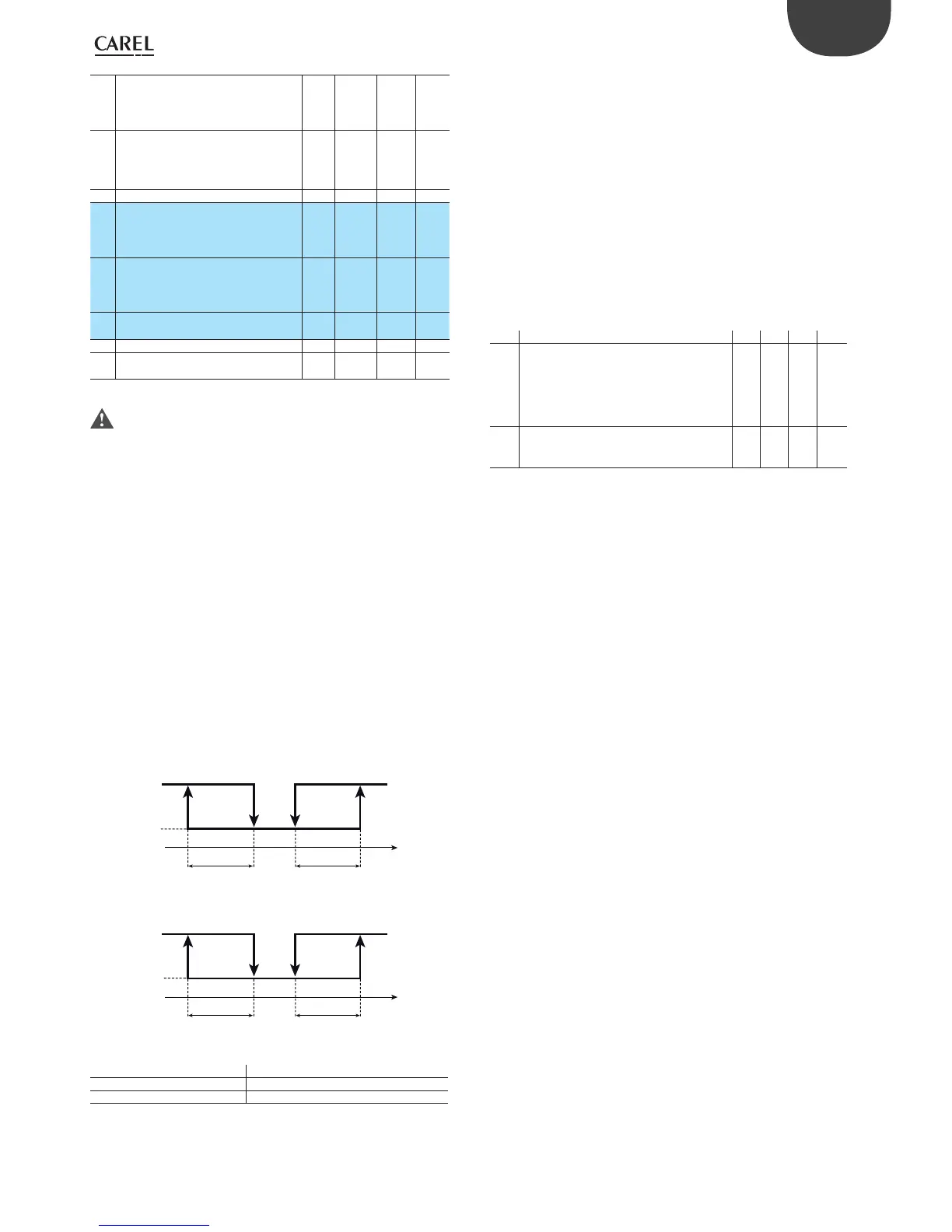

ON
E05 E04
OFF
P25 P26
B1
P27
P27
ON
E16 E15
OFF
P30 P31
B2
P32
P32
Fig. 8.b
Key
E04/E15 High alarm, probe B1/B2
E05/E16 Low alarm, probe B1/B2
B1/B2 Probe 1/2
8.4.3 Status of the control outputs with alarm from
digital input (parameter c31)
Parameter c31 determines the action on the control outputs if an alarm
from digital input E03 is active (see c29 and c30). When OFF is selected,
the controller shuts down immediately and the timers are ignored. When
ON is selected, on the other hand, the “Delay between activations of
two di erent relay outputs” (parameter c6) is observed. If the alarm from
digital input has automatic reset (c29=1 and/or c30=1), when normal
conditions return (external contact closed), the alarm output, if set (see
c0=5) is reset and normal control resumes.
c31=0 all control outputs OFF
c31=1 all control outputs ON
c31=2 only the outputs with “reverse” operation OFF, the others are
not a ected
c31=3 only the outputs with “direct” operation OFF, the others are
not a ected.
Par. Description Def Min Max UoM
c31
Status of control outputs in circuit 1 in the
event of an alarm from digital input
0= All outputs OFF
1= All outputs ON
2= ”Reverse” outputs OFF, others unchanged
3= “Direct” outputs OFF, others unchanged
003-
d31
Status of control outputs in circuit 2 in the
event of an alarm from digital input
See c31
003-
Tab. 8.c
