Carel SD User Manual

12

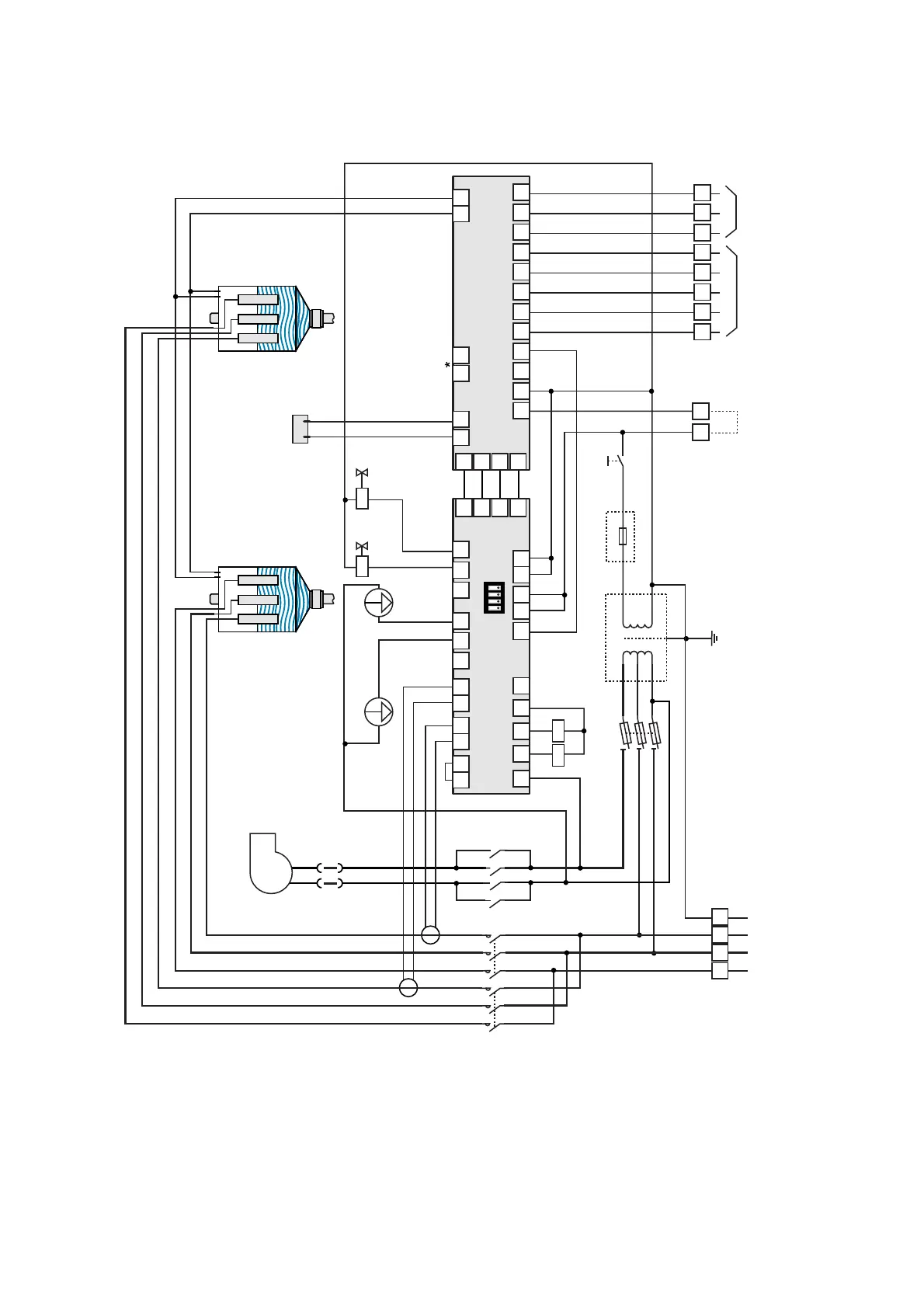

Alimentazione trifase (SD 360-384) Three-phase power supply (SD 360-384)
TAM 1
TAM 2
Drain pump 2
20 21
External signal Alarm
Remote On/Off
= Primary voltage B = 200 - 208V~ C = 220 - 240V~ D = 380 - 415V~ E = 440 - 480V~ F = 575V~
***
Line
F2 2A ATM/gG
F3 4A ATM/gG
F1 4A ATM/gG
230V
0V
***
24V
0V
F4 4A GT
Transformer 400 VA
ON/OFF
X1
X2
56 57 58 59 60 70 71 72
Optional fan
K2
Conduct imeter
L1 L2 L3 PE
Boiler 1
52 53 67 66
50 51
Control CDC / P / H / D / T
+12 S1 S2 GND -12 N0 C NC
65 64 55 54
G G0
68 69 61 62 56 57 58 59 60 70 71 72
12A 11A 10A 9A
8A 7A 6A 5A 4A 3A 4B 3B 2B 9C 8C 7C
1B 1C 2C 4C 3C 13A 5C 1A 6C 2A
Drain
Fill
GND
I sig
AD80000000
65 64
10A
9A
Drain Fill
Boiler 2
K1 K2
Drain pump 1
Fill valve 2
Fill valve 1
Mounted on
transformer
K1 K2K1 K2K1
ON OFF
1 2 3 4
* I morsetti 66-67 sono presenti solo sul controllo in versione CDD per gestire la deumidificazione (vedi pag. 20). Il controllo
CDD può essere abbinato al controllo Macrobase per la gestione dell'umidificazione e deumidificazione di centrali
di trattamento aria. Caratteristiche uscita 66-67: I max 5 mA, V max 30 V~
The connections 66-67 are present only on the CDD controller for the dehumidifier management (see on page 20). The
CDD controller can be coupled with the Macrobase controller for the humidification/dehumidification management of air
handling units. Output 66-67 characteristics: Imax 5mA; Vmax 30V~
See page 24-25
