Carel UU02 - Master Electrical Panel

16
ENG
“humiSonic ventilation” +0300063EN - rel. 1.0 - 16.02.2016

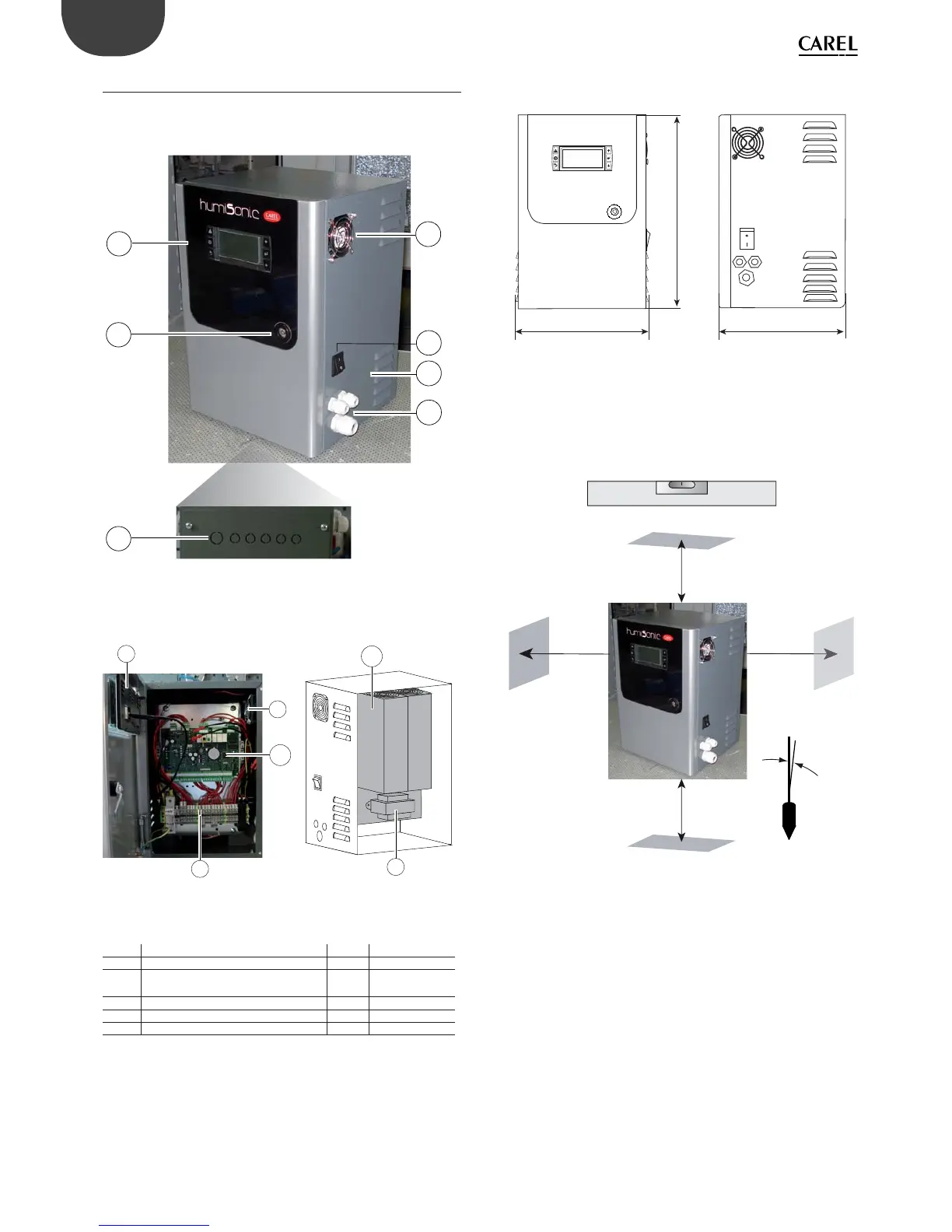

3.5 “Master” electrical panel
STRUCTURE
OUTSIDE
1
4
7
5
6
2
3
Fig. 3.i
INSIDE
8
10
7
1
9
11
Fig. 3.j
Key
1 Terminal 7 Exhaust air fan
2 Cover with lock 8 Terminal block
3
Knock-outs for additional cable
glands (installer’s responsibility)
9 Transformer
4 Cable glands 10 Control board
5 Air intake openings 11 Power supply
6 ON/OFF switch
DIMENSIONS - mm (in)
262 (10.3)
361
(14.2)
252 (9.9)
Fig. 3.k
POSITIONING
The electrical panel is designed for wall-mounting and features forced
ventilation for cooling. See the fi gure for the minimum clearances in mm
(in) that ensure suffi cient air fl ow and change inside the electrical panel.
<0,5°
≥ 500
(19.7”)
≥ 500
(19.7”)
≥ 500
(19.7”)
≥ 500
(19.7”)
Fig. 3.l
