13. DUCT INSTALLATION
If several Humisonics are to be installed into the same duct , it is necessary
to arrange them within the duct so as to obtain a homogeneous and
constant atomization.
Suggested installative layouts are:

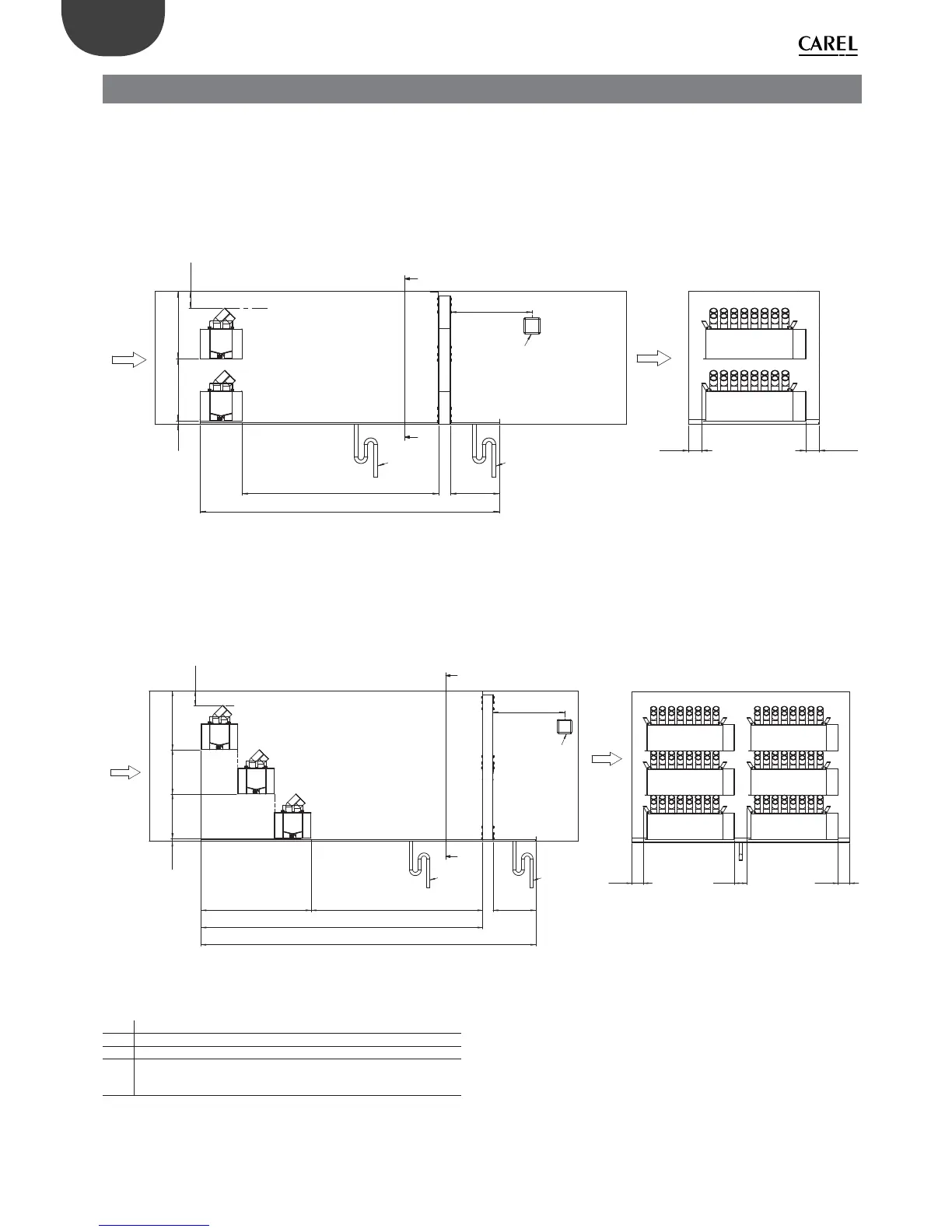

• “On line” layout: units are positioned on diff erent levels along the same
vertical section. The diagram 13.1 shows the minimum distances for
humidifi ers placement within the same duct:
airflow
20
(0,8)
380
(14,96)
410
(16,14)
100
(3,94)
water drain basin
DL
drain
B
B
500
(19,69)
Limit probe
L_PB
airflow
300
(11,81)
drain
80
(3,15)
80
(3,15)
B-B
1:10
Fig. 13.a
• “Cascade” layout: unitsare positioned on diff erent levels and along
diff erent vertical sections. The diagram 13.2 shows the minimum
distances for humidifi ers placement within the same duct:
airflow
20
(0,8)
410
(16,14)
100
(3,94)
water drain basin
A
500
(19,69)
Limit probe
L_PB
airflow
300
(11,81)
drain
80
(3,1)
A-A
310
(12,20)
310
(12,20)
DL
DH
DT
A
drain
90
(3,5)
80
(3,1)
Fig. 13.b
Key:
DH
Humisonics total dimention
DL
Absorption distance
DT
Total length
For proper sizing and placement of Humisonic within the duct ,
contact Carel support
