“humiSonic ventilation” +0300063EN - rel. 1.0 - 16.02.2016

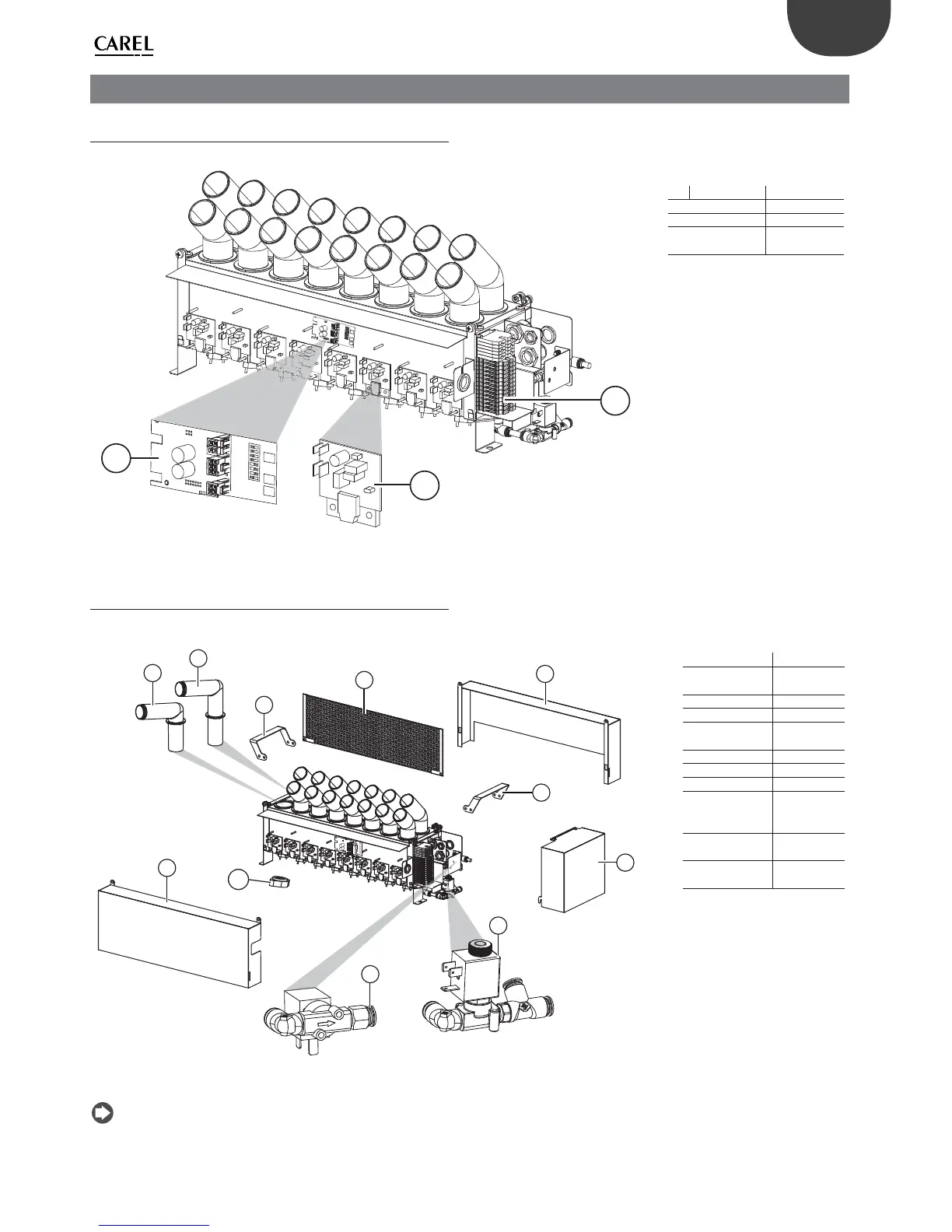

10. MAINTENANCE AND SPARE PARTS
10.1 Electrical components
3
2
1
Key:
no. Description Spare part no.
1 Terminal block -
2 Driver board UUKDE00000
3 Electronic
control board
UUF*D0000
Tab. 10.a
Fig. 10.a
10.2 Mechanical components
6
7
1
2
3
10
5
8
9
1
4
Legenda:
no. Description Spare part no.
1 Lifting
handle
-
2 Baffl e -
3 Rear cover -
4 Terminal
block cover
-
5 Front cover -
6 Front diff user UUKDA00000
7 Rear diff user UUKDR00000
8 Drain
solenoid
valve kit
UUKDN00000
9 Fill solenoid
valve kit
UUKFR00000
10 Piezoelectric
transducer
UUKTP00000
Tab. 10.b
Fig. 10.b
Note: maintenance on the humidifi er must be carried out by CAREL
technical service or other professionally qualifi ed personnel
