“humiSonic ventilation” +0300063EN - rel. 1.0 - 16.02.2016
9. ALARMS
9.1 Types of alarms
There are two types of alarms:
• manual reset;
• automatic reset: the alarm is reset and the unit restarts automatically
when the alarm condition is no longer present;
When an alarm occurs, the Alarm button fl ashes and the display shows
the standard display.
Press Alarm to display a short description of the alarm.
Press Alarm again to attempt to reset the alarm:
1. if the cause is no longer present, the alarm should be reset and the red
light on the button will go off ;
2. if the reset attempt fails, the Alarm button stays on steady, signalling that
the alarm has been acknowledged.
If the alarm is reset automatically, the Alarm button goes off and the
alarm reset event is recorded in the alarm log.

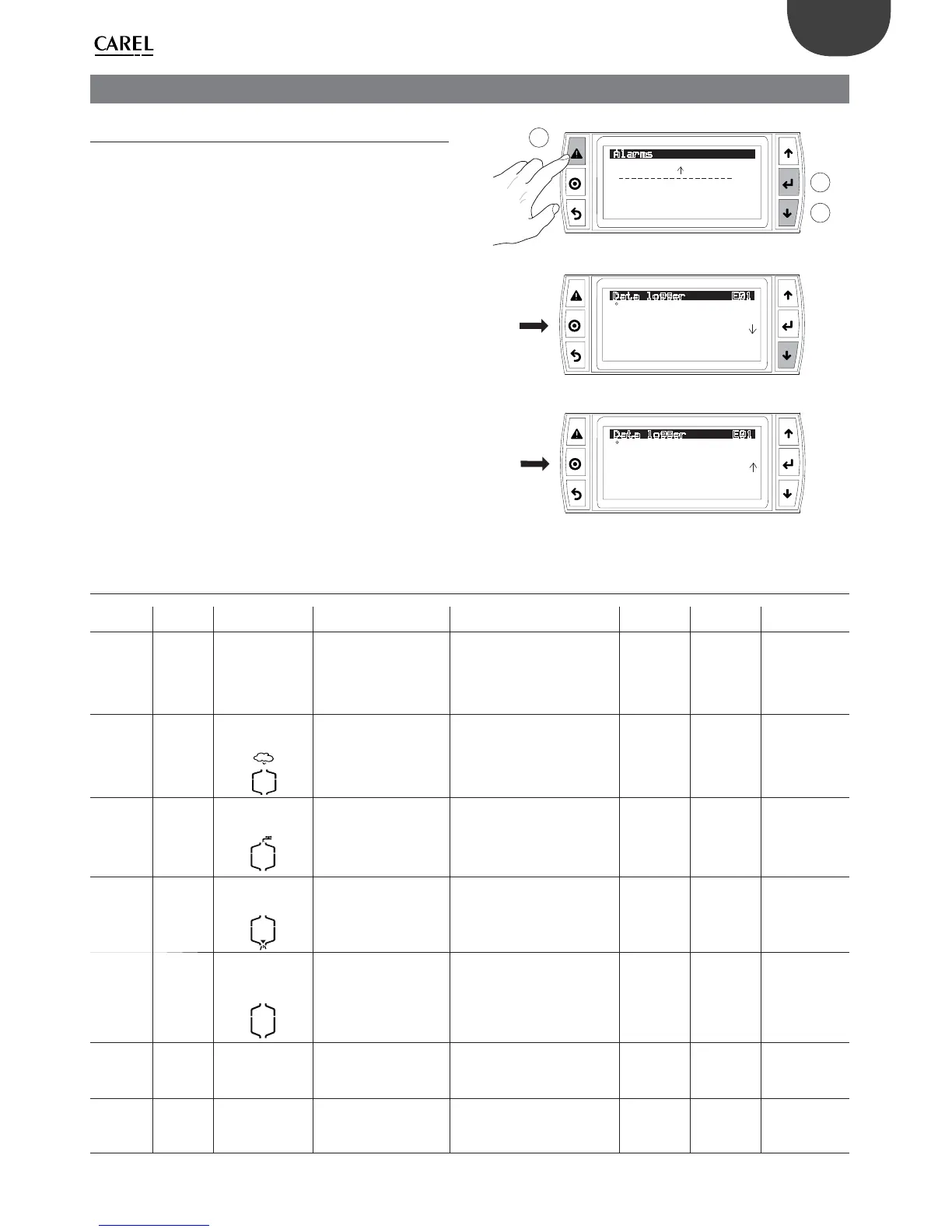

Example: the high humidity alarm is visible in the list of alarms, and the
log shows the activation event (down arrow) and reset event (up arrow).
"LARMS
)
)IGH)UMIDITY
%ATALOGGER&
/
)>)IGHHUMIDITY
%ATALOGGER&
/
)>)IGHHUMIDITY
A
B
C
Fig. 9.a
9.1 Alarm table
Source “Slave”
electr. panel
“Master” electrical
panel
Cause Solution Alarm relay
activation
Action Reset
Humidifi er 2 fast fl ashes
Et
_________________
Autotest failed
• Feedwater not connected or
insuffi cient
• drain open
• fl oat failure
Check:
• feedwater and fi ll valve;
• blockage of the fi lter on the fi ll
solenoid valve;
• check drain solenoid valve and
drain connection;
yes humidifi cation
stopped
ESC (“Master”)
Humidifi er 5 fast fl ashes
EP
_________________
no production
Piezoelectric transducer
malfunction
Perform maintenance on the case yes humidifi cation
stopped
ESC (“Master”)
Humidifi er 3 fast fl ashes
EF
_________________
no water
Mains water interruption or fi ll
solenoid valve malfunction
Check:
• feedwater and fi ll valve;
• blockage of the fi lter on the fi ll
solenoid valve;
yes (in the 10
minute waiting
period)
humidifi cation
stopped for 10
minutes only
automatic (after 10
minute wait)
Humidifi er 4 fast fl ashes
Ed
_________________
drain failure
Drain circuit/solenoid valve
malfunction
Check drain valve and drain
connection
yes humidifi cation
stopped
ESC (“Master”)
Humidifi er
5 slow
fl ashes
CL
_________________
tank maintenance
request signal
1500 operating hours
exceeded for recommended
maintenance
Carry out maintenance on tank and
transducers (chap. 10)
no signal only Reset hour counter
(Geb01)
“Master”
panel
-
Ambient probe
_________________
Probe broken or
incorrectly connected
Cable interrupted/
disconnected/incorrectly
connected.
Check the reference signal yes humidifi cation
stopped
AUTO
“Master”
panel
-
Limit probe
_________________
Probe broken or
incorrectly connected
Cable interrupted/
disconnected/incorrectly
connected.
Check the reference signal yes humidifi cation
stopped
AUTO
