6540 Series Operations Manual Rev_I 1/12/2016 54
Replace Lamps
1. Remove top (or bottom) light bank from chamber by pulling on the removable light bank.
There are no wires, connectors, screws or other fasteners to disconnect.
2. Remove old lamps and replace with new.
Rotate bi-pin lamps ¼ turn in lamp holders to remove/install.
For high output lamps, press one end of lamp into ‘plunger’ lamp holder. Press/release the other
lamp end into ‘fixed’ lamp holder (6540-1 & 6545-1 only).
3. Install the light bank into track with connector end going in first.

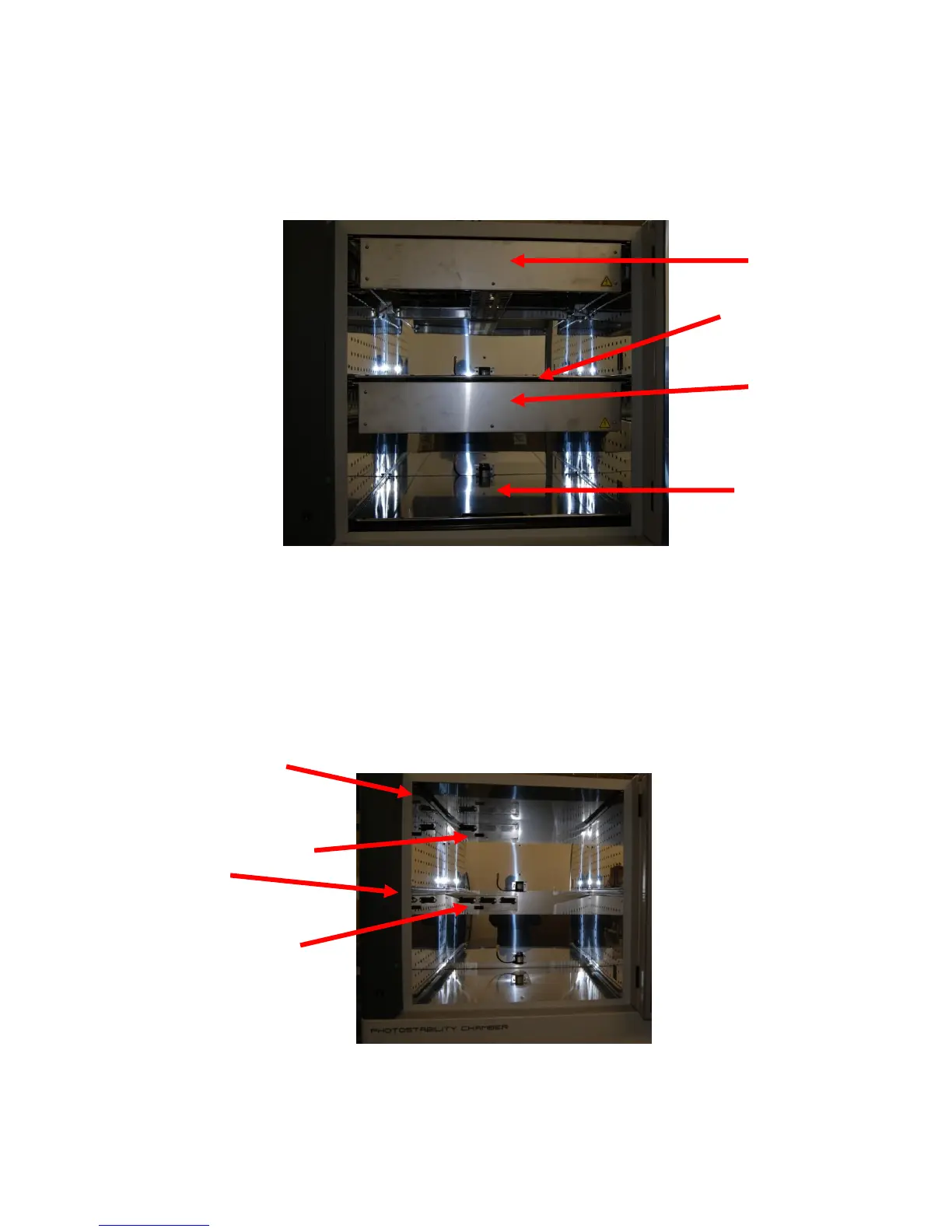

Removable
bottom light
bank
Top light bank
mating connector
Bottom light bank
mating connector(s)
