Carrier 23XRV - Machine Electrical Data Nameplate

12
FRONT VIEW – DOORS REMOVED
RIGHT SIDEWALL
INSIDE VIEW
2
1
3
4
5
8
9
7
10
11
6

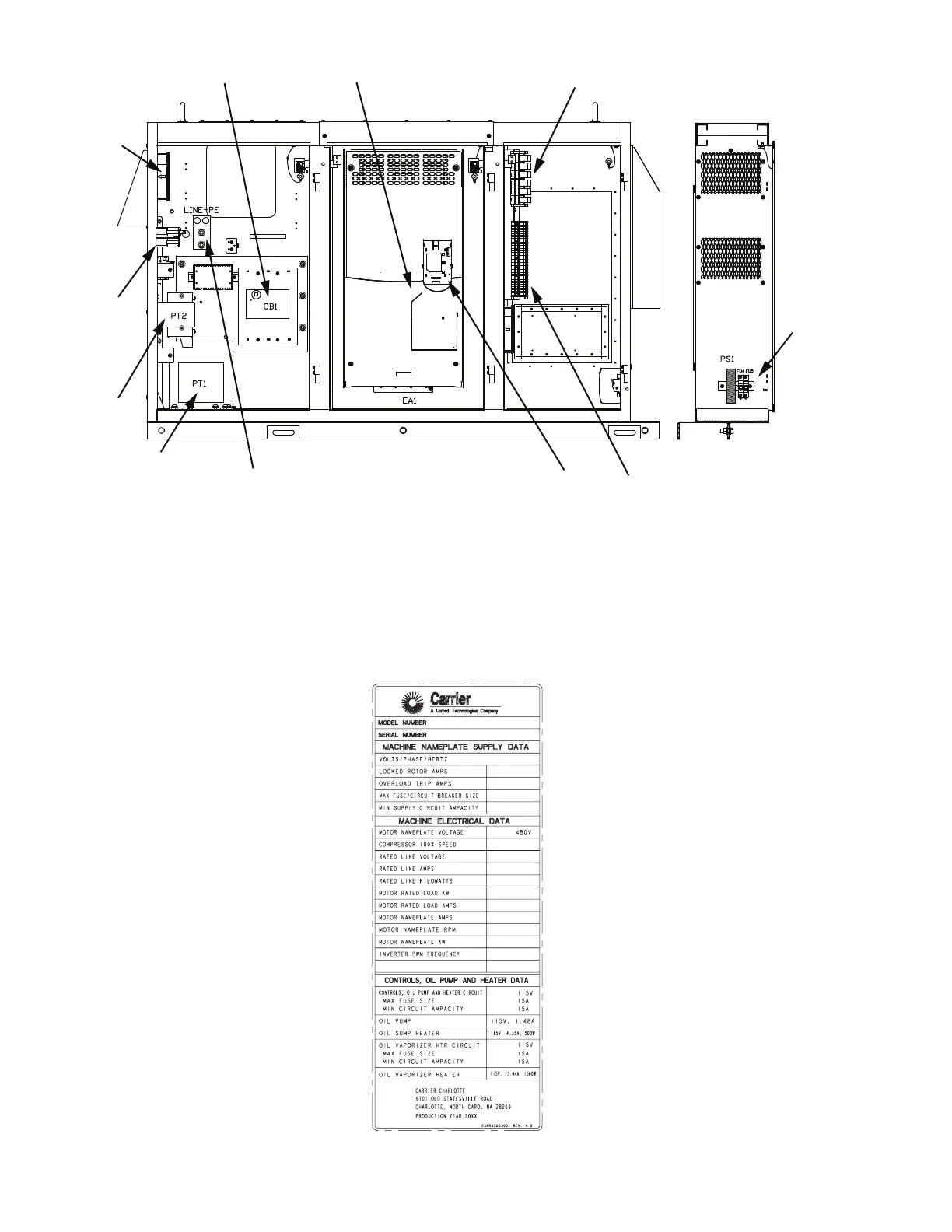

Fig. 11 — Control Center Components (Std Tier VFD)
a23-1670
LEGEND
1 — Input Circuit Breaker
2 — Power Module
3 — Control Relays (CR1 - CR6)
4 — Control Fuses
5 — Terminal Block
6 — Drive Status Indicator
7 — Ground Lug
8 — 120V Control Transformer
9 — 120V Vaporizer Heater Transformer
10 — 15 Amp Control Circuit Breaker
11 — Cooling Fan
a23-1555
Fig. 12 — Machine Electrical Data Nameplate
