Carrier 23XRV - Typical 23 XRV Components (P Compressor)

5
a23-1691
12
13
11
10
9
8
7
6
5
4
3
2
1
20
19
18
17
16
15
14
1—Discharge Pipe
2—Variable Frequency Drive
3—Cooler Relief Valve
4—Compressor Discharge Pipe
5—International Chiller Visual Controller (ICVC)
6—Refrigerant Charging Valve
7—ASME Nameplate, Evaporator
8—Condenser Relief Valves
9—Tubesheet Mounting Brackets
10 — Condenser
11 — ASME Nameplate, Condenser
12 — Level Sensing Chamber
13 — Condenser Refrigerant Pumpout Valve
14 — Refrigerant Strainer
15 — Cooler Inlet Isolation Valve
16 — Motor Cooling Isolation Valve
17 — Motor Cooling Sight Glass
18 — Motor Cooling Supply Line
19 — Motor Cooling Line Filter Drier (Hidden)
20 — VFD Disconnect
a23-1692
21
22
23
24
25
26
27
28
29
30
32
33
34
35
36
37
31
21 — Vaporizer
22 — Tubesheet Mounting Brackets
23 — Oil Sump Heater (Hidden)
24 — Vaporizer Drain Sight Glass
25 — Oil Sump
26 — Oil Sump Sight Glass
27 — Oil Charging Drain Valve (Hidden)
28 — Strainer Housing Sight Glass
29 — Oil Pump Inlet Strainer
30 — Oil Filter Assembly
31 — Oil Pump
32 — Typical Waterbox Drain Coupling (Hidden)
33 — Condenser Supply/Return End Waterbox
34 — Oil Reclaim Actuator
35 — Cooler Supply/Return End Waterbox
36 — Vaporizer Sight Glass
37 — Hot Gass Bypass Line (Option)
38
39
40
41
42
43
38 — Discharge Isolation Valve Assembly (Option or
Accessory)
39 — Machine Electrical Data Nameplate
40 — Main EXV
41 — Economizer Gas EXV (Option)
42 — Economizer (Option)
43 — Economizer Muffler (Hidden)

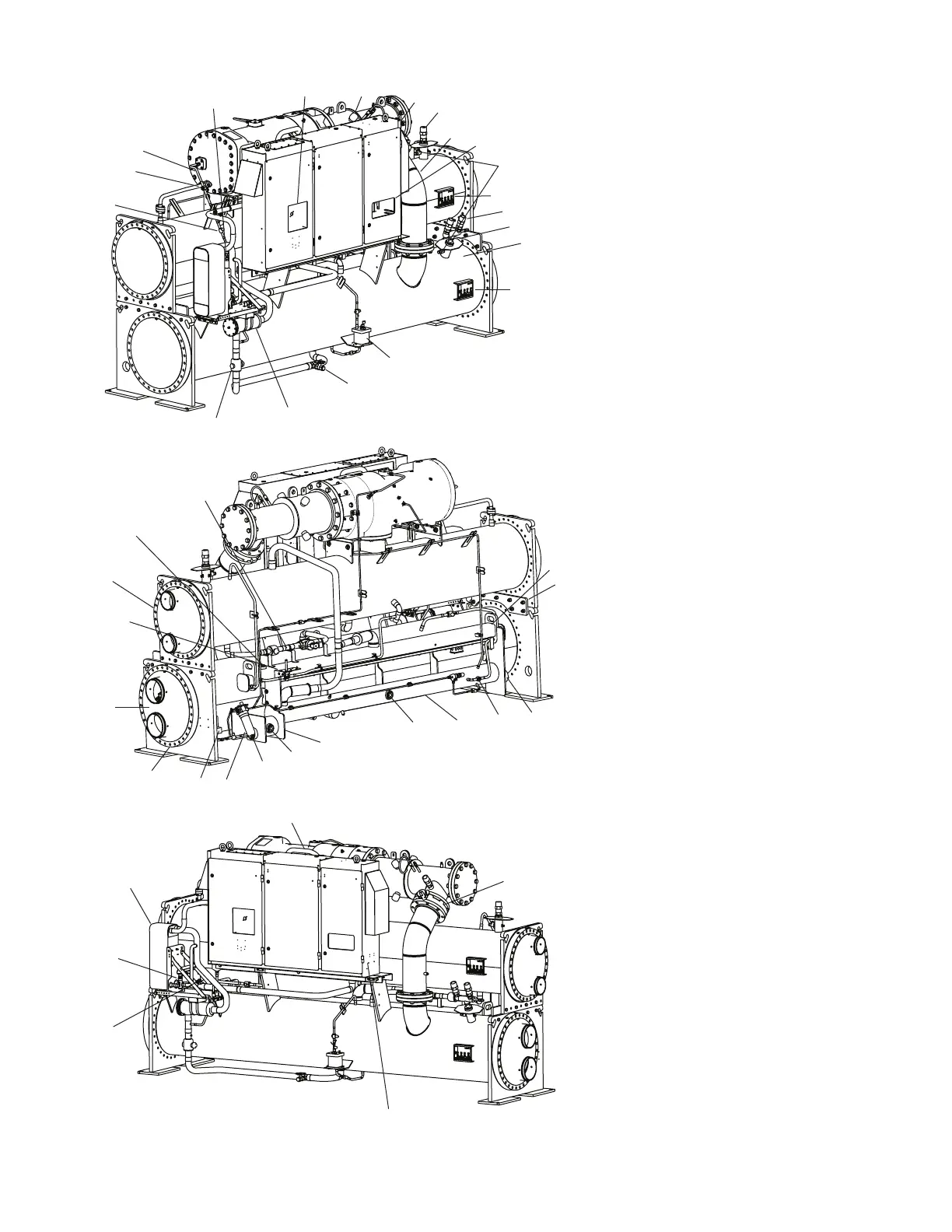

Fig. 3 — Typical 23XRV Components (Units with P Compressor)
