1—Compressor Motor Winding Temperature (Hidden)
2—Vaporizer Temperature
3—Evaporator Return Liquid Temperature (Hidden)
4—Oil Sump Temperature
5—Oil Sump Pressure
6—Supply Oil Pressure
7—Condenser Liquid Temperature (Hidden)
8—Condenser Liquid Flow (Optional)
9—Evaporator Liquid Flow (Optional)
10 — Evaporator Liquid Temperature (Hidden)
11 — Compressor Discharge Temperature
12 — Compressor Discharge Pressure
13 — Compressor Discharge High Pressure Switch
14 — Inductor Temperature Switch (Inside VFD Enclosure)
15 — VFD Rectifier Temperature (Inside Power Module)
16 — VFD Heat Sink Temperature (Inside VFD Enclosure)
17 — VFD Inverter Temperature (Inside Power Module)
18 — Evaporator Temperature
19 — Condenser Pressure
20 — Condenser Liquid Level Sensor
21 — Economizer Pressure (Optional)
22 — Economizer Temperature (Optional)

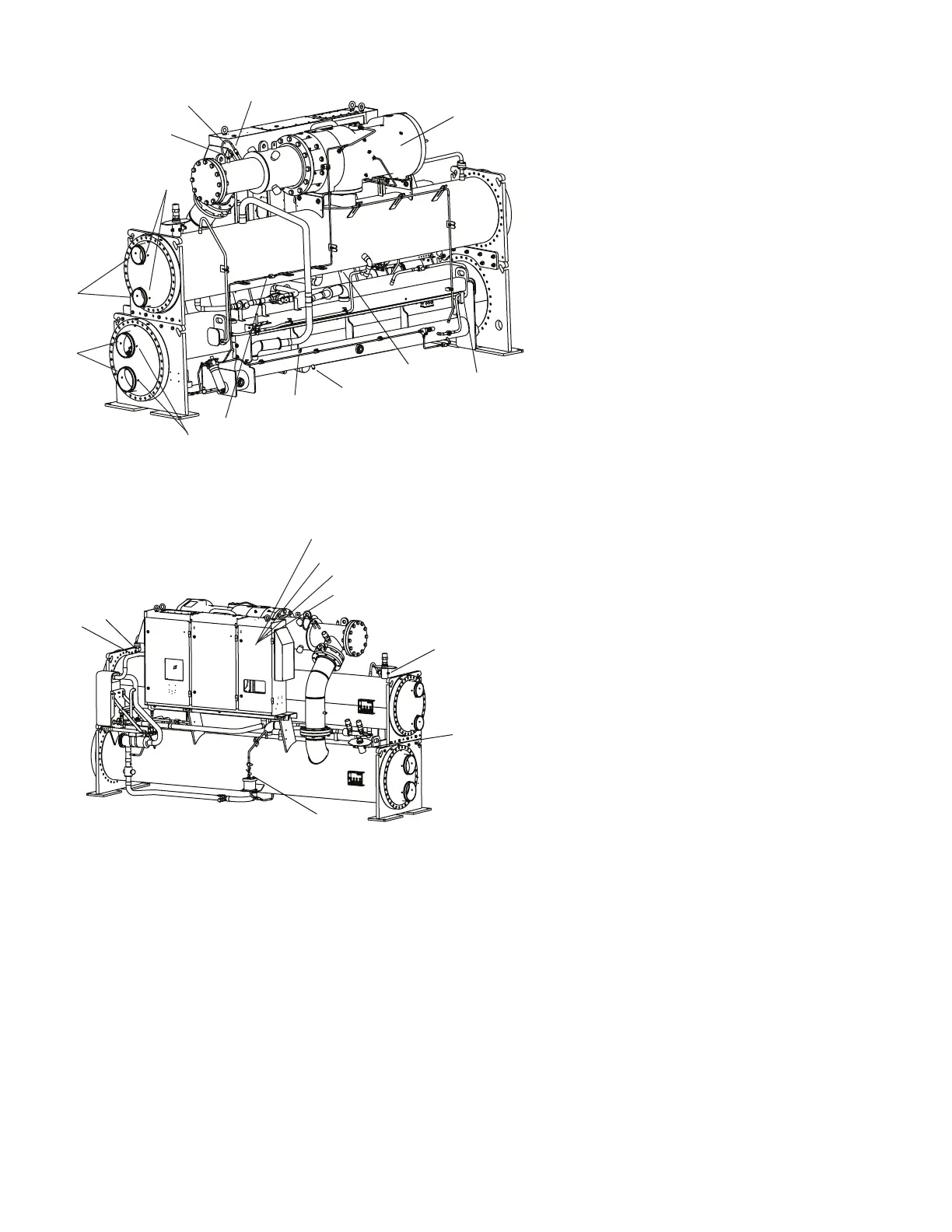

Fig. 6 — Typical 23XRV Installation — Sensor Locations (Units with P Compressor)
