DISCHARGE END
SUCTION END
FRAMES A AND B

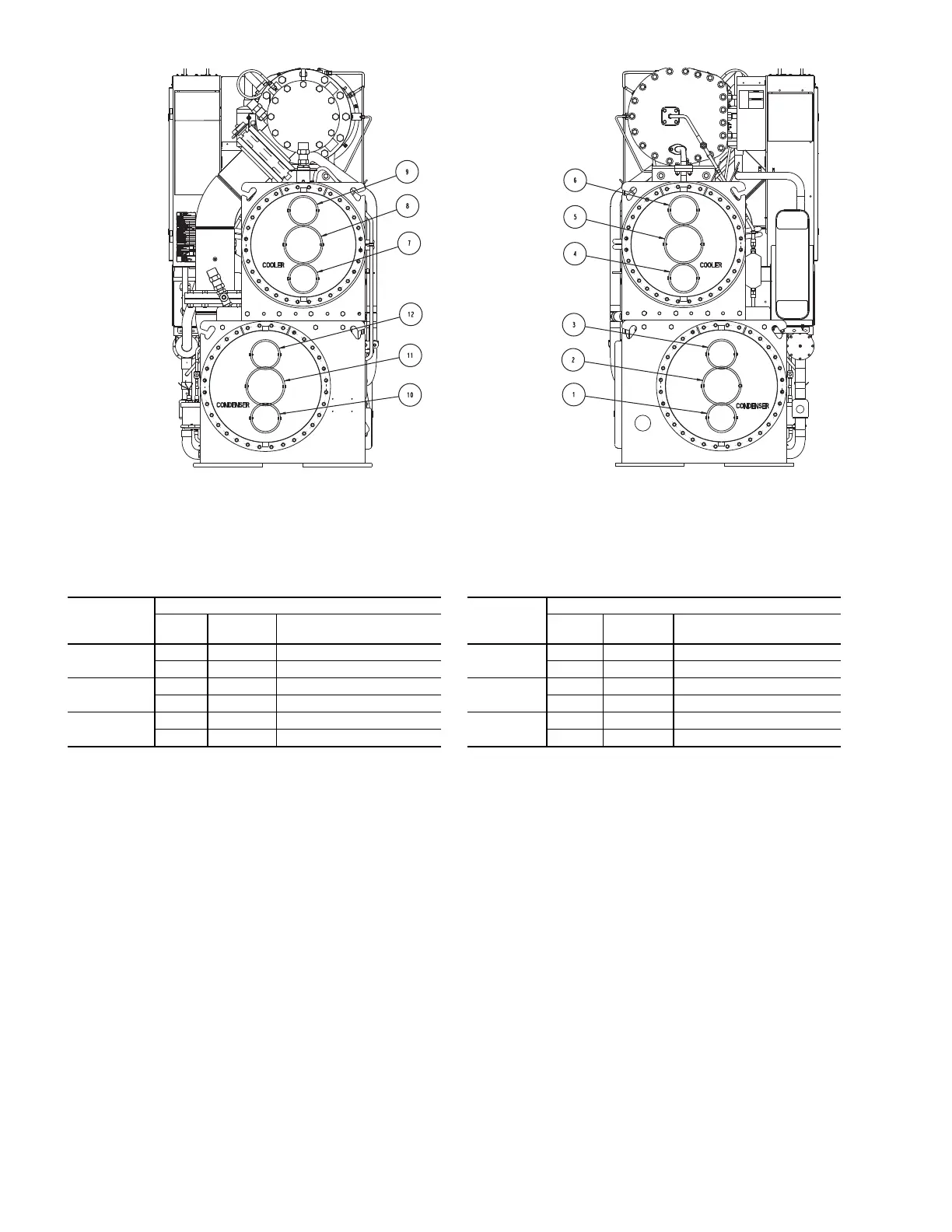

NOZZLE ARRANGEMENT CODES FOR ALL 23XRV NOZZLE-IN-HEAD WATERBOXES
Fig. 51 — Piping Flow Data (NIH, Frames 3 Through 5 and A,B) (cont)
*Refer to certified drawings.
PASS
COOLER WATERBOXES
IN OUT
ARRANGEMENT
CODE*
1
85 A
58 B
2
79 C
46 D
3
76 E
49 F
PASS
CONDENSER WATERBOXES
IN OUT
ARRANGEMENT
CODE*
1
11 2 P
211 Q
2
10 12 R
13 S
3
10 3 T
112 U
