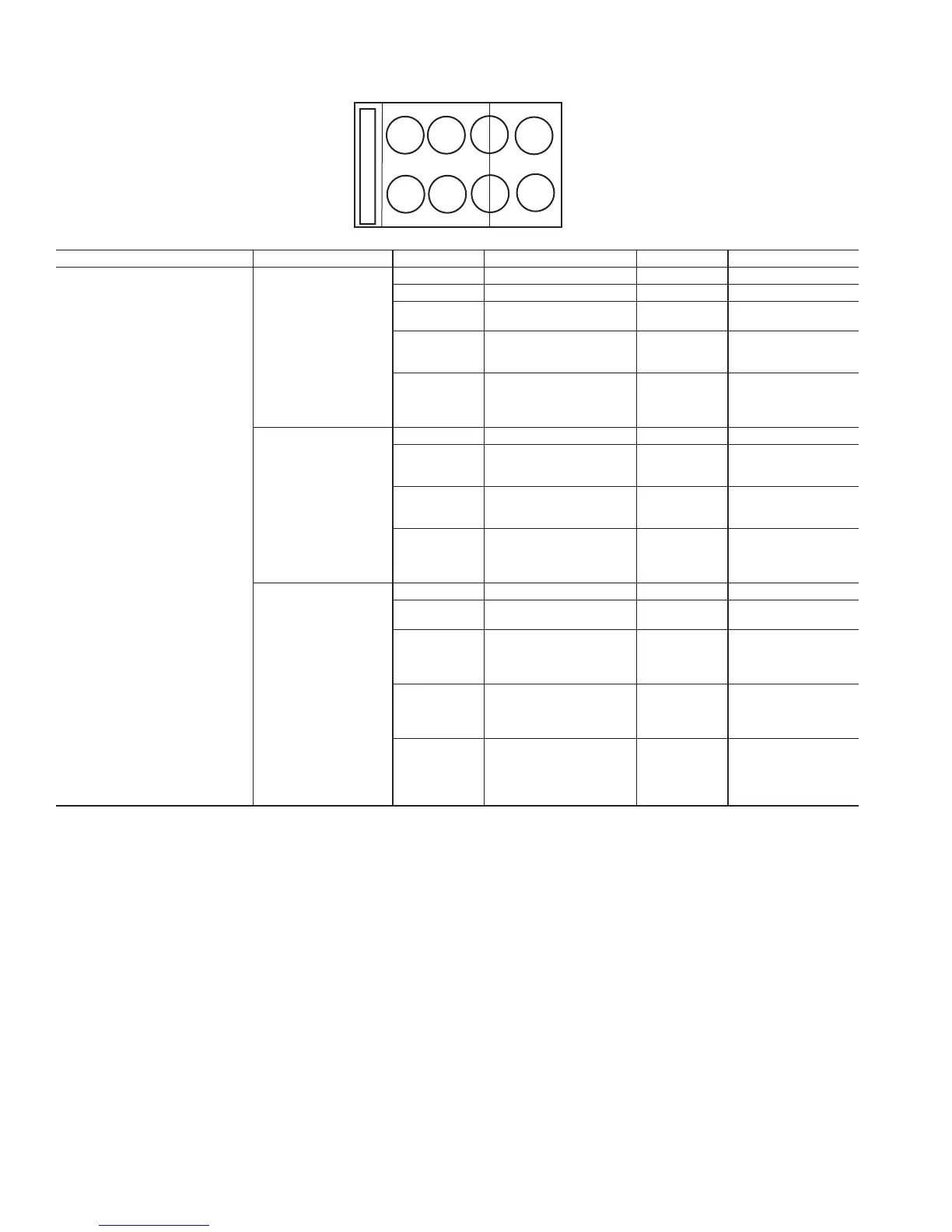

Table 52 — 38APD130 Fan Staging
*Items in either Service Test
o
OUTS or Outputs
o
GEN.O.
†Fans that affect both circuits.
**Motormaster controlled motor.
UNIT OPERATING CIRCUIT FAN STAGE OUTPUT POINT NAME* CONTACTOR FANS ENERGIZED
38APD130
Without Motormaster
®
Controller
A
1FAN1FC1†OFM5
2FAN5FC5OFM7
3
FAN1
FAN5
FC1†
FC5
OFM5
OFM7
4
FAN1
FAN4
FAN5
FC1†
FC4†
FC5
OFM5
OFM3, OFM8
OFM7
5
FAN1
FAN3
FAN4
FAN5
FC1†
FC3†
FC4†
FC5
OFM5
OFM2, OFM4, OFM6
OFM3, OFM8
OFM7
B
1FAN1FC1†OFM5
2
FAN1
FAN2
FAN4
FC1†
FC2
FC4†
OFM5
OFM1
OFM3, OFM8
3
FAN1
FAN2
FAN3
FC1†
FC2
FC3†
OFM5
OFM1
OFM2, OFM4, OFM6
4
FAN1
FAN2
FAN3
FAN4
FC1†
FC2
FC3†
FC4†
OFM5
OFM1
OFM2, OFM4, OFM6
OFM3, OFM8
A and B
1FAN1FC1†OFM5
2
FAN1
FAN4
FC1†
FC4†
OFM5
OFM3, OFM8
3
FAN1
FAN2
FAN4
FAN5
FC1†
FC2
FC4†
FC5
OFM5
OFM1
OFM3, OFM8
OFM7
4
FAN1
FAN3
FAN4
FAN5
FC1†
FC3†
FC4†
FC5
OFM5
OFM2, OFM4, OFM6
OFM3, OFM8
OFM7
5
FAN1
FAN2
FAN3
FAN4
FAN5
FC1†
FC2
FC3†
FC4†
FC5
OFM5
OFM1
OFM2, OFM4, OFM6
OFM3, OFM8
OFM7
CONTROL BOX
OFM1
OFM2
OFM7
OFM8
CKT A
CKT B
OFM3
OFM4
OFM5
OFM6
