Carrier 38APD130 - 38 APD070 Sensor Locations; 38 APD070,080 Sensor Locations

36
DTT
DPT-A
(RED)
RGT-A—INSULATE
WITH CORK
INSULATION
TAPE
SPT-A
(YEL)
HPS-A

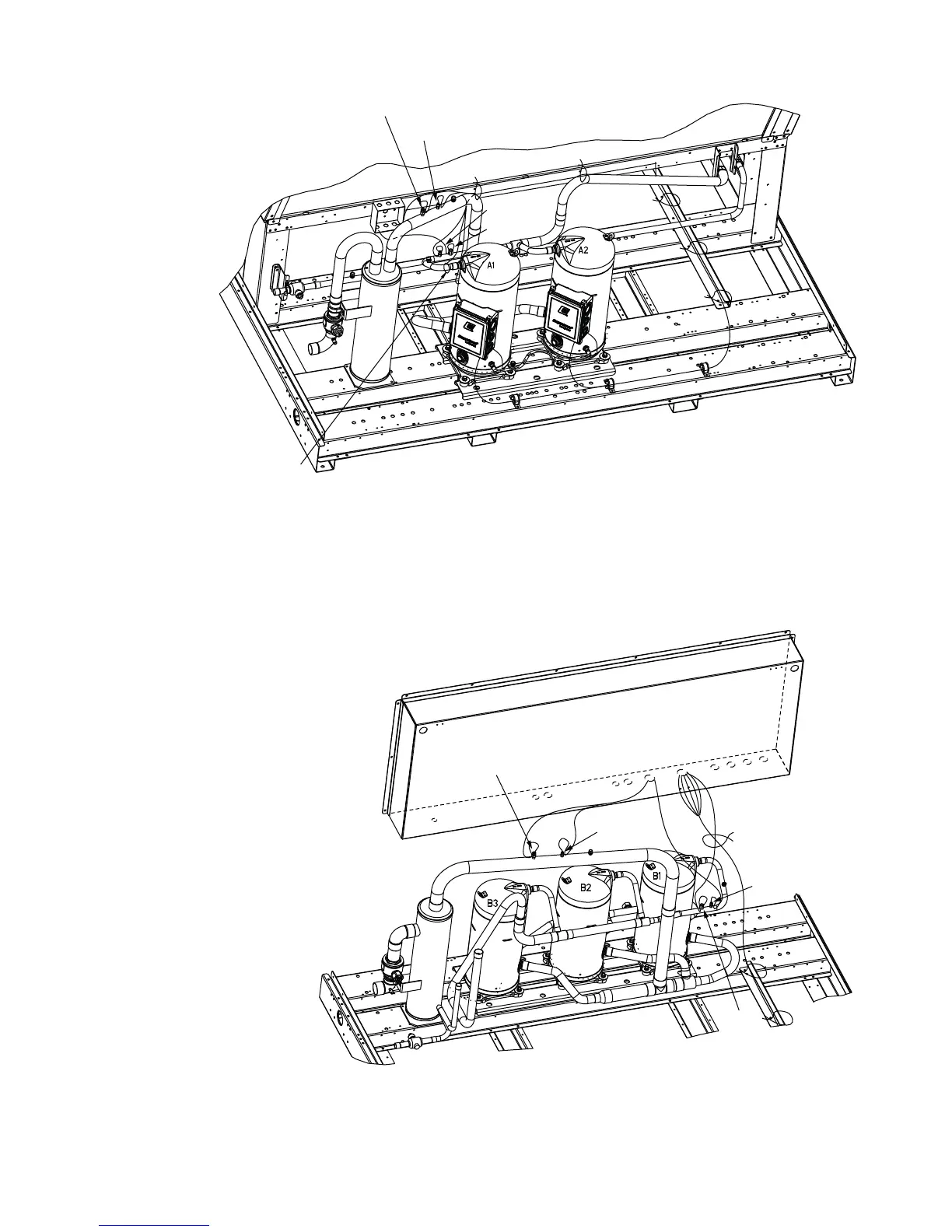

Fig. 38 — 38APD070,080 Sensor Locations, Circuit A
LEGEND
DPT — Discharge Pressure Transducer
DTT — Discharge Temperature Thermistor
HPS — High Pressure Switch
RGT — Return Gas Thermistor
SPT — Suction Pressure Transducer
RGT-B—INSULATE
WITH CORK
INSULATION
TAPE
HPS-B
DPT-B
(RED)
SPT-B
(YEL)
Fig. 39 — 38APD070 Sensor Locations, Circuit B
LEGEND
NOTE: For OAT location, see Fig. 44.
DPT — Discharge Pressure Transducer
HPS — High Pressure Switch
RGT — Return Gas Thermistor
SPT — Suction Pressure Transducer
