Carrier 58HDX - Page 22

po, _- Plastic Cap
: Yellow or black
Tap C nection “Clamp ears”
~ Pointed OUT
a as
Vent Drai n Elbow Tube Black Rubber
& Clamps Yo" (13 mm) ID & Clamps Relief Tube Preassemble &
(Loose Parts Bag) Black Rubber : :
SIDE VIEW \ yg" (5 mm) ID insert inte furnace
Coupling & Clamps
Barbed
Coupling
(Optional)
tio” (13 mm) OD
(Loose Parts Bag)
<S
Drain Hose
Black Rubber /
fp" (13 mm) ID Cutto | /
Fit& Clamps £
Dual Pressure Switch
NOTE? Built-in channel wil
be
angled
5°
to
10°
also.
OnSome
|
Models
/ a om
ay
2” (51 mm) PVC Coupling
Either: The PVC
Single Pressure Switch Detail
yo | Drain Tee or a field
— A ~~ supplied 2” (51 mm) PVC Tee
# ‘
)
- | }]_- Tee Trap White PVC
on | ts bi
Drain Tube Corrugate fT IN | & (loose parts bag)
Black, */g” (16 mm) Drain Connector Black \ Le
PVC
*a
(9mm)
—
WARNING
a PVC X "Io" (13 mm)’ Move Caps to
h
CPVC (Loose parts bag)
I)
top of trap
\
\ Drain Tube Black Rubber,
5/g” ID (16 mm) Cut to fit & Clamps
(loose parts bag)
A07768

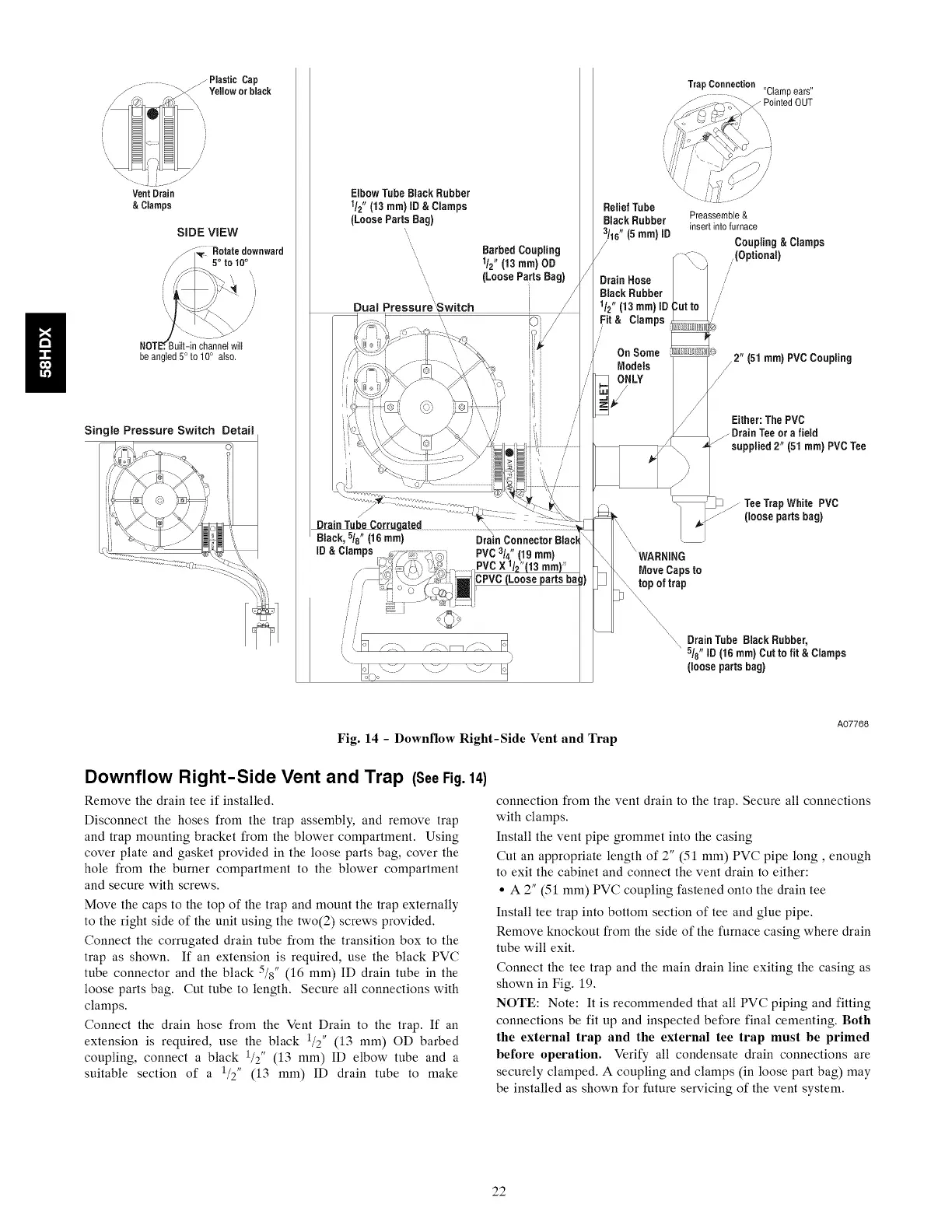

Fig. 14 - Downflow Right-Side Vent and Trap
Downflow Right-Side Vent and Trap (See Fig. 14)
Remove the drain tee if installed.
Disconnect the hoses from the trap assembly, and remove trap
and trap mounting bracket from the blower compartment. Using
cover plate and gasket provided in the loose parts bag, cover the
hole from the burner compartment to the blower compartment
and secure with screws.
Move the caps to the top of the trap and mount the trap externally
to the right side of the unit using the two(2) screws provided.
Connect the corrugated drain tube from the transition box to the
trap as shown. If an extension is required, use the black PVC
tube connector and the black Sig" (16 mm) ID drain tube in the
loose parts bag. Cut tube to length. Secure all connections with
clamps.
Connect the drain hose from the Vent Drain to the trap. If an
extension is required, use the black Ly" (13 mm) OD barbed
coupling, connect a black !/" (13 mm) ID elbow tube and a
suitable section of a 1/5" (13 mm) ID drain tube to make
connection from the vent drain to the trap. Secure all connections
with clamps.
Install the vent pipe grommet into the casing
Cut an appropriate length of 2” (S1 mm) PVC pipe long , enough
to exit the cabinet and connect the vent drain to either:
¢ A 2" (51 mm) PVC coupling fastened onto the drain tee
Install tee trap into bottom section of tee and glue pipe.
Remove knockout from the side of the furnace casing where drain
tube will exit.
Connect the tee trap and the main drain line exiting the casing as
shown in Fig. 19.
NOTE: Note: It is recommended that all PVC piping and fitting
connections be fit up and inspected before final cementing. Both
the external trap and the external tee trap must be primed
before operation. Verify all condensate drain connections are
securely clamped. A coupling and clamps (in loose part bag) may
be installed as shown for future servicing of the vent system.
