4.15. 19DV Device Status Display Screens
4.15.1. System Overview

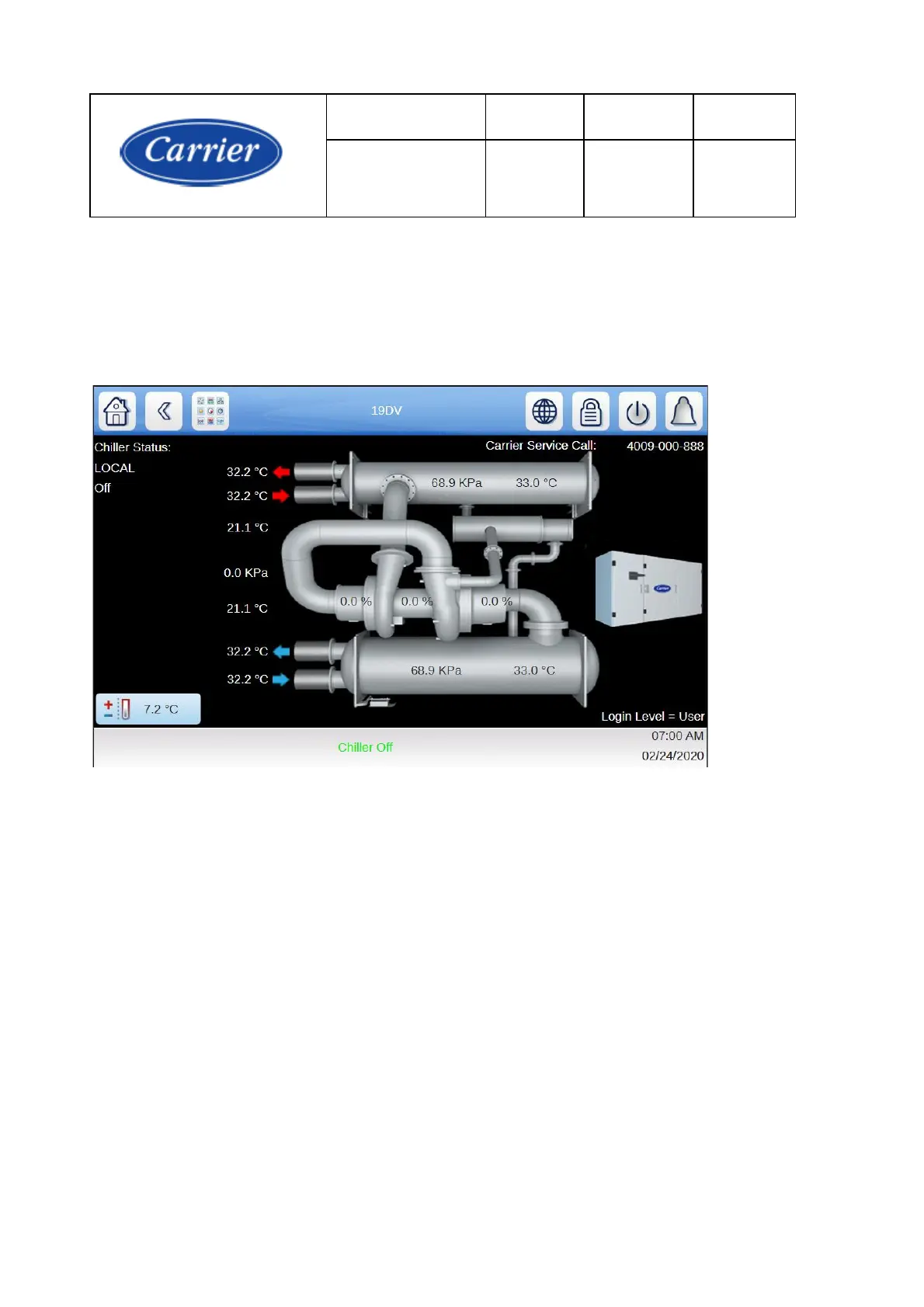

The following screen is the system overview screen (default screen), by clicking the component in this
screen, user can enter the specific component screen, or clicking the bottom in home page.
