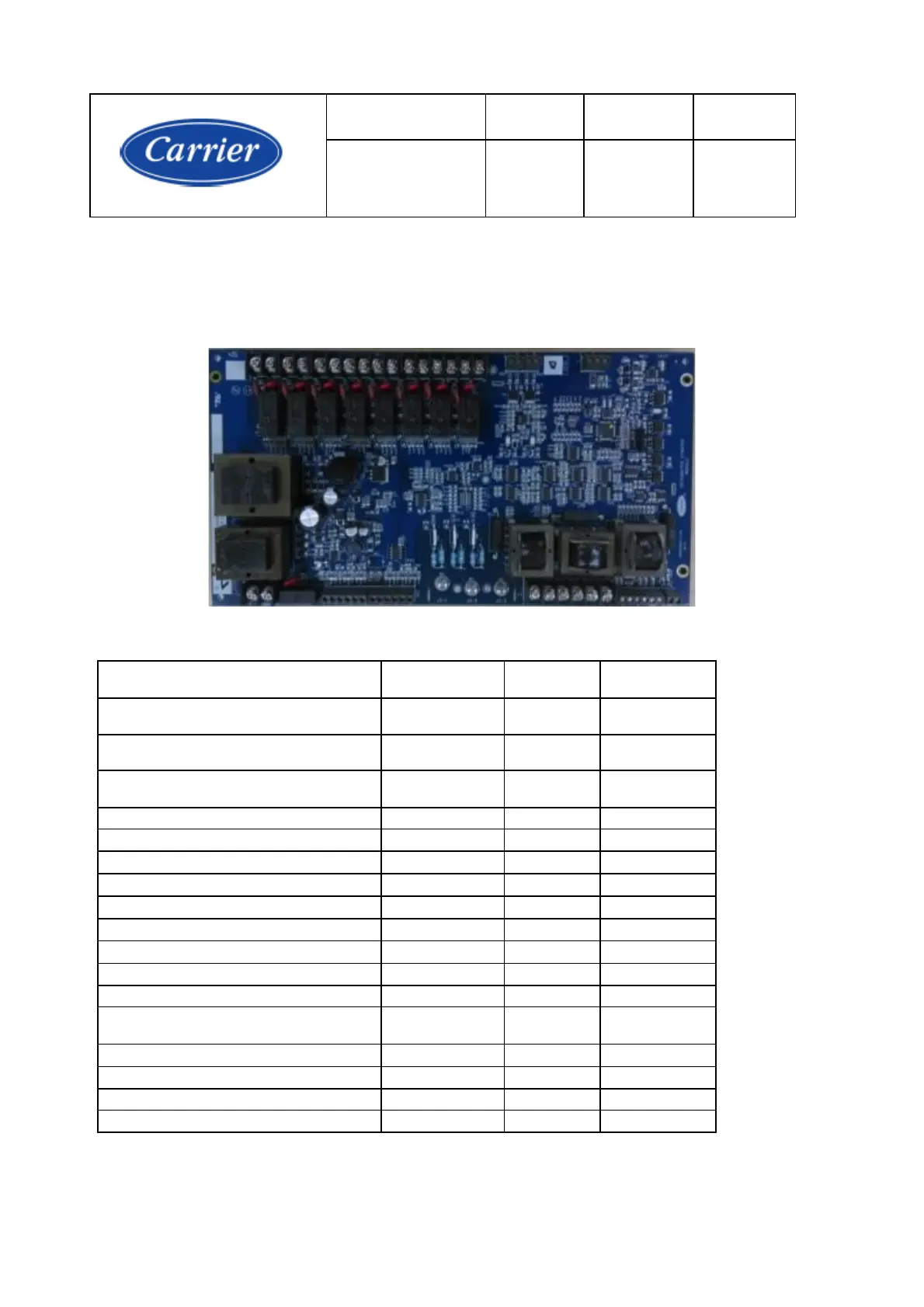

3.1.2. ISM (Integrated Starter Module)
ISM is motor control module for fixed speed or free standing VFD configuration, and it is supplied from
an 115VAC supply referred to earth.
ISM input / output description is as below:
DESCRIPTION
POINT NAME
TYPE
PIN
NUMBER
STARTER FAULT
STARTFLT
Dry
Contact
J2-7,8
COMPRESSOR START CONTACT
STAR_AUX
Dry
Contact
J2-9,10
COMPRESSOR RUN CONTACT
RUN_AUX
Dry
Contact
J2-11,12
LINE VOLTAGE V1
LN_VOLT1
0-5 Volt
J3-1
LINE VOLTAGE V2
LN_VOLT2
0-5 Volt
J3-2
LINE VOLTAGE V3
LN_VOLT3
0-5 Volt
J3-3
LINE CURRENT C1
LN_AMPS1
0-5 Volt
J4-1,2
LINE CURRENT C2
LN_AMPS2
0-5 Volt
J4-3,4
LINE CURRENT C3
LN_AMPS3
0-5 Volt
J4-5,6
GROUND FAULT PHASE 1
GRFLT_31
0-5 Volt
J5-1,2
GROUND FAULT PHASE 2
GRFLT_23
0-5 Volt
J5-3,4
GROUND FAULT PHASE 3
GRFLT_12
0-5 Volt
J5-5,6
VFD SPEED FEEDBACK
VFD_IN
0-10 Volt/
0-5 Volt
J6-1,2
VFD TARGET SPEED
VFD_OUT
0-20 mA
J8-1,2
COMPRESSOR START RELAY
COMP_SR
Relay
J9-1,2
COMPRESSOR TRANS RELAY
TRANS
Relay
J9-3,4
SHUNT TRIP RELAY
TRIPR
Relay
J9-5,6
